Quick Details
-
Throat Depth (mm):
-
2.5 mm
-
Width of Working Table (mm):
-
2.5 mm
-
Dimension:
-
171*75*94
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Year:
-
New
-
Weight (KG):
-
575
-
Motor Power (kw):
-
0 kw
-
Nominal Pressure (kN):
-
100 kN
-
Raw Material:
-
Sheet / Plate Rolling
-
Name:
-
W2.5x1220 segment blade box section bending brake
-
Max. width:
-
1220mm
-
Max.thickness:
-
2.5mm
-
Bending angle:
-
0-135 degree
-
type:
-
pan and box brake
-
blade:
-
segment blade
-
packing size:
-
1710*750*940mm
Quick Details
-
Machine Type:
-
Torsion Bar
-
Length of Working Table (mm):
-
1220 mm
-
Slider Stroke (mm):
-
1220 mm
-
Throat Depth (mm):
-
2.5 mm
-
Width of Working Table (mm):
-
2.5 mm
-
Dimension:
-
171*75*94
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Year:
-
New
-
Weight (KG):
-
575
-
Motor Power (kw):
-
0 kw
-
Nominal Pressure (kN):
-
100 kN
-
Raw Material:
-
Sheet / Plate Rolling
-
Name:
-
W2.5x1220 segment blade box section bending brake
-
Max. width:
-
1220mm
-
Max.thickness:
-
2.5mm
-
Bending angle:
-
0-135 degree
-
type:
-
pan and box brake
-
blade:
-
segment blade
-
packing size:
-
1710*750*940mm

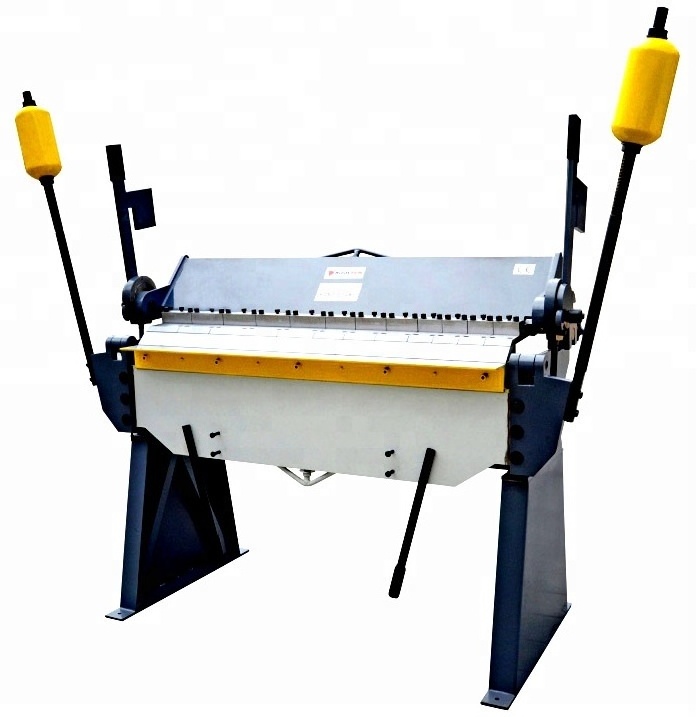

W2.5x1220 segment blade box section bending brake
Main Features:
1. W2.5x1220 box section bending brake with segment bending blade for the bending of box section.
2. Various widths segment shiftable setup.
3. With balanced hammer , it can easy to operate and easy for folding
4. Have different models for optional.
Main Specification:
Name: W2.5x1220 segment blade box section bending brake
| Modle | Capacity(mm) | Packing size(cm) | N.W./G.W.(kg) | ||
| Length | Thickness | Angle | |||
| W2.5X1220 | 1220mm(48") | 2.5mm(12Ga) | 0-135° | 171x75x94 | 513/575 |
| W2.0X2040A | 2040mm(80") | 2.0mm(14Ga) | 0-135° | 255x76x100 | 850/1000 |
| W2.5X2040A | 2040mm(80") | 2.5mm(12Ga) | 0-135° | 255x76x100 | 1145/1295 |
| W2.0X2540A | 2540mm(100") | 2.0mm(14Ga) | 0-135° | 300x76x100 | 1190/1360 |
| W2.5X2540A | 2540mm(100") | 2.5mm(12Ga) | 0-135° | 300x76x100 | 1310/1480 |
| W2.0X3050A | 3050mm(120") | 2.0mm(14Ga) | 0-135° | 350x76x110 | 1490/1690 |
| W1.2X3700A | 3700mm(146") | 1.2mm(20Ga) | 0-135° | 425x85x120 | 2450/2670 |
| W0.8X4000A | 4000mm(157") | 0.8mm(22Ga) | 0-135° | 470x90x120 | 2700/2950 |
Standard accessories:
Stand
Balance hammer
Please check more detailed Images, W2.5x1220 segment blade box section bending brake sells very hot.
W2.5x1220 segment blade box section bending brake
Packing size:1710*750*940mm
Package: standard export package plyw/case
We also would like to let you know our warranty:
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days . all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
