Quick Details
-
Power:
-
15-70Kw depends on size, 3.3kw
-
Dimension(L*W*H):
-
Properly according to the capacity
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Glycol water chilling
-
Cooling Capacity:
-
6600Kcal/3HP
-
Freon:
-
R404A ,R410A
-
Size:
-
850x720x1325mm
-
Application:
-
3HP Glycol Chiller for cooling beer tank
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tiantai/TBE or OEM
-
Voltage:
-
3phase/380(220,400,415,440)v/50 (60)Hz
-
Power:
-
15-70Kw depends on size, 3.3kw
-
Dimension(L*W*H):
-
Properly according to the capacity
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Glycol water chilling
-
Cooling Capacity:
-
6600Kcal/3HP
-
Freon:
-
R404A ,R410A
-
Size:
-
850x720x1325mm
-
Application:
-
3HP Glycol Chiller for cooling beer tank
3HP Glycol Chiller for cooling beer tank
1 . Introduction

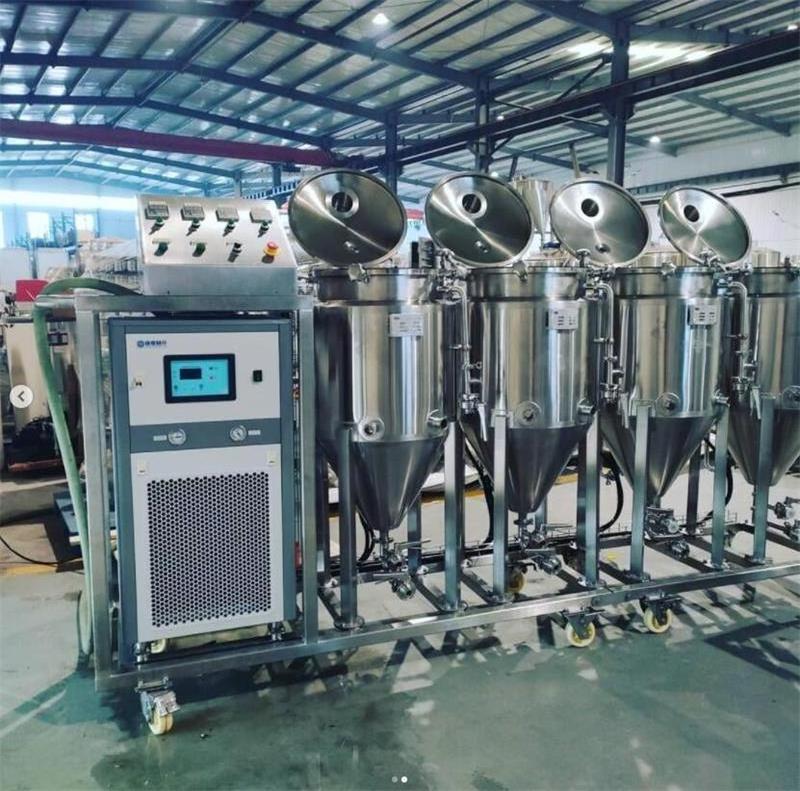

3HP Glycol Chiller is typically used for micro brewery beer system.
It is usually used to cool beer fermenter and brite beer tank to keep the beer in a constant temperature.
Its working principle is: The Freon is compressed by the compresser.
Glycol water go inside and make heat exchange with cold Fron.
Then the cooled glycol water goes outside and being sent to the jackets on Beer fermenter and brite beer tank.
The conversion between BTU and HP depends on the target temperature you are requiring.
Lower target temperature, Lower cool capacity for same one chiller.
In beer brewing process, we need to cool the glycol to minus 5Celsius.
For one 3HP chiller, its cooling capacity is 5.7KW. 1BTU=0.293W.
So 3HP=19753.9BTU/H under -5 Celsius target temperature request.
2 . specification
|
Cooling Capacity |
3HP |
5HP |
8HP |
13HP |
|
Installed Power(KW) |
3.3 |
5.6 |
7.6 |
13.5 |
|
Refrigerant |
R404A ,R410A ,R407C | |||
|
Electric Supply |
3phase/380(220, 415,440)v/50 (60)Hz Single Phase/ 220(110, 240v)/50(60)Hz |
|||
|
Cooling Material |
30%-40% glycol water solution |
|||
|
Size(mm) |
1220x720x1325 |
1220x720x1325 |
1710x795x1490 |
1710x795x1490 |
4. Accessories and Spare Parts
5. Our Certificates
7. Our Customers From the World
8. Our Company
Our company is a professional beer equipment manufacturer.
We are specialized in professional design, manufacture, installation
and commissioning of various beer equipments and supporting facilities.
Our products include mashing equipment, fermentation equipment, yeast spread cultivation equipment,
and refrigeration equipment for small and medium-sized brewery, hotel, pub and etc.
