Quick Details
-
Item name:
-
10x20 Canopy High Quality Commercial Pop Up Tent
-
Brand name:
-
Suzhou WT Tent
-
Type:
-
Event & Party Supplies & Trade Show
-
Marquee Tent frame:
-
aluminum alloy 6061/T6
-
Roof cover:
-
850g/sqm double waterproof PVC fabric
-
Sidewall options:
-
soft PVC walls,glass wall,ABS hard wall,sandwich panel wall,etc.
-
Color:
-
White, Blue, Green, Red, Black, Gray, Transparent
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, etc.
-
Ground Situation:
-
grassland,earth land,asphalt ground,cement ground,marble,etc.
-
Applications of Economical Marquee Tent:
-
trade show, wedding, beer festival, party, events, warehouse, church
Quick Details
-
Brand Name:
-
Suzhou WT Tent
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Party Tent-16061404
-
Item name:
-
10x20 Canopy High Quality Commercial Pop Up Tent
-
Brand name:
-
Suzhou WT Tent
-
Type:
-
Event & Party Supplies & Trade Show
-
Marquee Tent frame:
-
aluminum alloy 6061/T6
-
Roof cover:
-
850g/sqm double waterproof PVC fabric
-
Sidewall options:
-
soft PVC walls,glass wall,ABS hard wall,sandwich panel wall,etc.
-
Color:
-
White, Blue, Green, Red, Black, Gray, Transparent
-
Fixing Solution:
-
ground anchor, expandable bolt, weight plate, etc.
-
Ground Situation:
-
grassland,earth land,asphalt ground,cement ground,marble,etc.
-
Applications of Economical Marquee Tent:
-
trade show, wedding, beer festival, party, events, warehouse, church

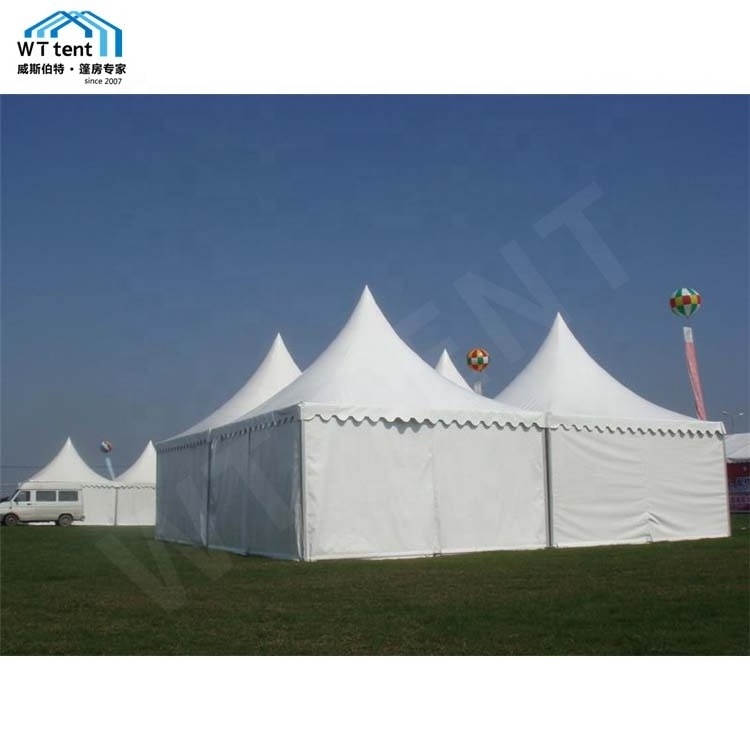

3X3 4X4 5X5 6X6 8X8 10X10m Outdoor Small Aluminum Canopy Pagoda Tent
| Item | Width(m) | Eave Height(m) | Ridge Height(m) | Longest Parts(m) |
| S3 | 3.0 | 2.5 | 3.0 | 2.95 |
| S4 | 4.0 | 2.5 | 3.2 | 3.95 |
| S5 | 5.0 | 2.5 | 3.4 | 4.85 |
| M12 | 12.0 | 4.0 | 5.9 | 5.40 |
| M15 | 15.0 | 4.0 | 6.3 | 8.61 |
| M18 | 18.0 | 4.0 | 6.8 | 8.61 |
| L25 | 25.0 | 6.0 | 10.0 | 8.68 |
| L30 | 30.0 | 6.0 | 11.0 | 10.61 |
| L40 | 40.0 | 6.0 | 12.6 | 10.61 |
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.
| Product Name | 10x20 Canopy High Quality Commercial Pop Up Tent |
| Main Profile | Material: Hard pressed extruded aluminum 6082-T6, 6061/T6; Feature: Stainless |
| Snow Load Complicance | 0.5 KN/sqm |
| Cover | Material: Double PVC-coated polyester textile, 670g-850g/sqm; Feature: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
| Eave Connection | Hot-dip Galvanized twin steel plate |
| Temperature Condition Index | -30℃----+75℃ |
| Certification | SGS, CE, ISO9001 |
| Wind Loading | 90-110 km/h |
Q1 :How can I calculate the tent size I need?
A1:You must first determine tent usage ,if the tent with tables and chairs in it,one person need 1.2 square meters,if the without table and chair,one person need 1 square meter.
Q2 :Does WT Tent provide any help to install the tent?
A2:Yes,usually we will send Assembly Instructions to help you installation,if customer need our engineer come to their country to help install,that is also workable.
Q 3 : How long of the production ?
A3:Our normal production time is 10-15 days, which is based on the square of Marquee tent.If the actual tent will use more sandwich walls or glass walls, The customization time for these accessories materials takes 20-25 days, Urgent order production time can be specially arranged.
Q4: What documents are available?
A4:A full range documents including structural drawings,packing list,installation manual and relative certificates can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
Q5: How long is the warranty period?
A5: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem.
Main products:Wedding Tent, Party Tent, Exhibition Tent, Warehouse tent, Marquee Tent, Hangar Tent, Polygon Tent, Pagoda Tent, Dome Tent, Spring top tent & summer gazebos, Folding Tent, Camping Tent, Hexagonal Tent.
