Quick Details
-
Product name:
-
iptv hd sdi encoder network encoder
-
Keyword:
-
encoder h265 sdi
-
Input:
-
1-4 *SDI input, Max support 1920x1080P@60Hz
-
Output:
-
1000Mbps, RJ-45
-
Encoding Levels:
-
H.265/AVC High / Main / Baseline Profile
-
Network:
-
1000Base-T Ethernet interface
-
TS Protocols:
-
HTTP / HLS / FLV / RTSP / UDP / RTMP / ONVIF
-
Certifications:
-
CE LVD EMC FCC ROHS
-
output stream:
-
2160P@60fps
-
Video encoding:
-
H.265/HEVC
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oem
-
Model Number:
-
SX-NH100PS-4-1U
-
Product name:
-
iptv hd sdi encoder network encoder
-
Keyword:
-
encoder h265 sdi
-
Input:
-
1-4 *SDI input, Max support 1920x1080P@60Hz
-
Output:
-
1000Mbps, RJ-45
-
Encoding Levels:
-
H.265/AVC High / Main / Baseline Profile
-
Network:
-
1000Base-T Ethernet interface
-
TS Protocols:
-
HTTP / HLS / FLV / RTSP / UDP / RTMP / ONVIF
-
Certifications:
-
CE LVD EMC FCC ROHS
-
output stream:
-
2160P@60fps
-
Video encoding:
-
H.265/HEVC
4 hdmi Rtsp RTMP Facebook Youtube HD Video Audio H.265 Hevc Live Streaming SDI to IP ENCODER for IPTV
1. Introduction

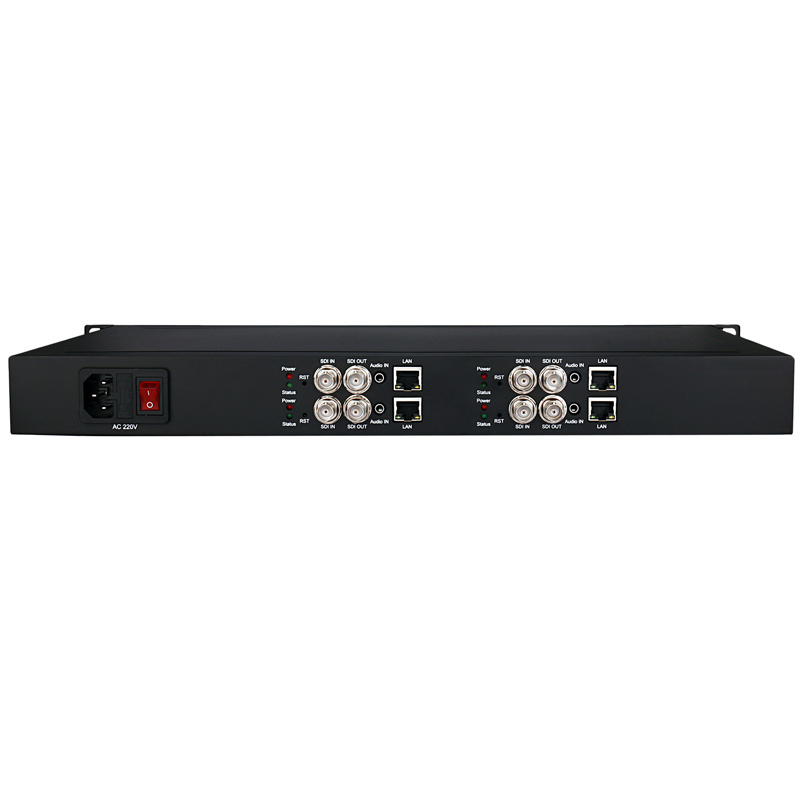

1U Rack-mounted H.26 5 SDI Video Encoder - It is a HD audio & video encoding device with powerful functionality, which supports 1-4 channels SDI input , max resolution at 1920×10 80 @60fps, output stream resolution to 1080P@60fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP ( Un i cast /Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
2. Features
1. Adopts professional en coding chip, embedded HiLinux System, high stability and efficiency.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP ( Un i cast /Multicast) Stream Protocols and ONVIF.
4. Support output Multi RTMP (S) ( M ain stream & Sub stream) to different Media Streaming Server.
5. Provide custom resolutions , Main Stream Preset Resolutions – 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 , etc.
6. Support Text and image insert as Stream Logo for M ain stream & Sub stream.
7. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
8. Output Stream bitrate adjustable.
9. Support External Analog audio input.
10. Support Audio digital gain.
11. Support firmware upgrade.
12. Support remote control via router port forward.
13. Wi F i version for option.
14. 3U chassis available, max supports 16 Pcs single Encoder installed.
3. Specifications
|
Interfaces |
|
|
Video Input |
1-4 *SDI input, Max support 1920x1080P@60Hz |
|
Audio Input |
1-4 * SDI embed audio & External Analog audio input |
|
Ethernet |
1 000M bps, RJ-45 |
|
WiFi |
Option – 2.4G |
|
Video Encoding |
|
|
Video Format |
H.264/AVC High/Main/Baseline Profile H.265 /HEVC main profile MJPEG/JPEG baseline |
|
Video Resolution |
Max support 1920x1080P@60FPS |
|
Video Bitrate |
0.1~32Mbps |
|
Video FPS |
5-60FPS |
|
Bitrate Control |
VBR/CBR |
|
Streaming Protocols |
HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP ( Un i cast /Multicast) ONVIF |
|
Audio Encoding |
|
|
Audio Format |
AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
|
Sample Rates |
44.1kHz/48kHz |
|
Bitrate |
12~640kbps |
|
System |
|
|
Control Method |
Web based management – IP 192.168.1.168 |
|
Language |
Chinese-English control interface |
|
Firmware |
Ethernet software upgrade |
|
Working environment |
|
|
Operating temperature |
-1 0 to 7 0 deg C |
|
Storage temperature |
–20 to 8 0 deg C |
|
Relative Humidity |
5% to 90% non-condensing |
|
Miscellaneous |
|
|
Dimension ( L × W × H) |
1 U 483 (L) * 25 0 (W) * 44.5 (H) mm |
|
Approx weight |
4.5kgs |
|
Power adapter |
AC input 100-240V 50/60Hz DC output 12V 25A |
1. IPTV (Wowza, Xtream Codes, nginx Media Server, etc.)
2. Online Live Broadcast ( YouTube, Ustream, Twitter, etc.)
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
