Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1200*540*2.8MM
-
Panel Efficiency:
-
22%
-
Product name:
-

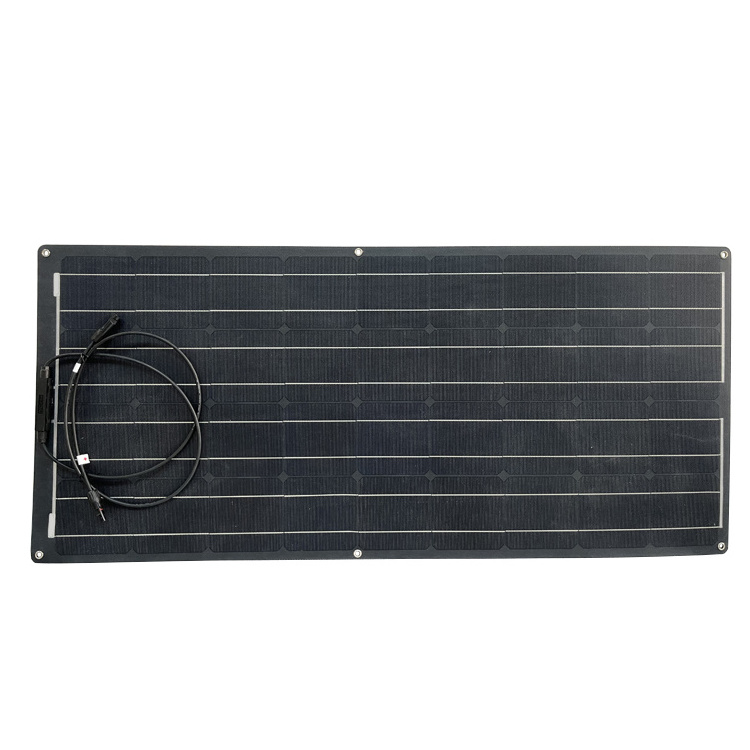

Flexible Solar Panels Marine
-
Junction Box:
-
IP67 Rated
-
Cable:
-
0.9M
-
Surface material:
-
ETFE
-
Max Power:
-
100W
-
Max Power Voltage(Vmp/V):
-
18V
-
Max Power Current(Imp/A):
-
5.56A
-
Open Circuit Voltage(Voc/V):
-
22.4V
-
Short Circuit Current(Isc/A):
-
6A
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
XURISUNSHINE
-
Model Number:
-
XRYG-FL-100
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1200*540*2.8MM
-
Panel Efficiency:
-
22%
-
Product name:
-
Flexible Solar Panels Marine
-
Junction Box:
-
IP67 Rated
-
Cable:
-
0.9M
-
Surface material:
-
ETFE
-
Max Power:
-
100W
-
Max Power Voltage(Vmp/V):
-
18V
-
Max Power Current(Imp/A):
-
5.56A
-
Open Circuit Voltage(Voc/V):
-
22.4V
-
Short Circuit Current(Isc/A):
-
6A
|
Model
|
Power
|
Vmp/V
|
Imp/A
|
Voc/V
|
Isc/A
|
Size
|
|
XRYG-FL-7
|
7W
|
6V
|
1.17A
|
7.4V
|
1.26A
|
275*170mm
|
|
XRYG-FL-10
|
10W
|
18V
|
0.56A
|
22V
|
0.6A
|
360*190mm
|
|
XRYG-FL-20
|
20W
|
18V
|
1.12A
|
22V
|
1.2A
|
530*240mm
|
|
XRYG-FL-30
|
30W
|
18V
|
1.67A
|
22.4V
|
1.8A
|
500*390mm
|
|
XRYG-FL-40
|
40W
|
18V
|
2.22A
|
22.4V
|
2.4A
|
640*398mm
|
|
XRYG-FL-50
|
50W
|
18V
|
2.78A
|
22.4V
|
3A
|
580*530mm 840*375mm
|
|
XRYG-FL-60
|
60W
|
18V
|
3.34A
|
22.4V
|
3.6A
|
910*400mm 630*408mm
|
|
XRYG-FL-80
|
80W
|
18V
|
4.45A
|
22.4V
|
4.8A
|
1020*450mm
|
|
XRYG-FL-100
|
100W
|
18V
|
5.56A
|
22.4V
|
6A
|
1200*540mm
830*710mm 1080*540mm
|
|
XRYG-FL-125
|
125W
|
18V
|
6.95A
|
22.4V
|
7.5A
|
900*775mm 1180*580mm
|
|
XRYG-FL-170
|
170W
|
18V
|
9.45A
|
22.4V
|
10.2A
|
1020*890mm 1345*670mm
|
|
XRYG-FL-200
|
200W
|
18V/30V
|
11.12A/6.67A
|
22.4V/37.4V
|
12A/7.2A
|
1580*710mm 1065*1045mm
1460*775mm 1140*990mm |
|
XRYG-FL-250
|
250W
|
36V
|
6.95A
|
44.9V
|
7.5A
|
1730*775mm 1080*1145mm
|
|
XRYG-FL-285
|
285W
|
30V
|
9.5A
|
37.4V
|
10.2A
|
1665*890mm
|
|
XRYG-FL-330
|
330W
|
36V
|
9.17A
|
44.9V
|
9.9A
|
1990*890mm 1345*1310mm
|
Features
1. Green energy
2. Energy saving and environmental protection
3. Easy to install
4. Easy battery life
±2.7 MM Thickness. Weight is 1/3 of the glass component
A variety of material for lamination. Allowing components to last up to 20 years.
Q1: How to install and use the solar panel?
Q2: What if I don't have export experience?
A2: We have a reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Anyway, we will help you choose the most suitable shipping service.
Q3:What is your delivery time?
A3:Sample orders are usually within 5 days. For batch orders, click "Contact Supplier" to contact us.
Q4: How about your after-sales service?
A4: We have a 24-hour after-sales service and a professional after-sales service department. You can contact us via email, Alibaba, telephone, and WhatsApp to obtain all services.
Q5: How can I make sure it's a secure transaction?
A5: Alibaba can protect buyers' interests, all of our transactions will go through the Alibaba platform. As you do the payment, the money will go directly to the Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6: Can you get the solar panel customized for us?
A6: Of course, brand name, solar panel color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:click "contact supplier" to contact us through Alibaba, we will give you the best price and look forward to your greetings.
A1: We have the English teaching manual and videos; All the videos about every step of solar panel Disassembly, assembly, the operation will be sent to our customers.
Q2: What if I don't have export experience?
A2: We have a reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Anyway, we will help you choose the most suitable shipping service.
Q3:What is your delivery time?
A3:Sample orders are usually within 5 days. For batch orders, click "Contact Supplier" to contact us.
Q4: How about your after-sales service?
A4: We have a 24-hour after-sales service and a professional after-sales service department. You can contact us via email, Alibaba, telephone, and WhatsApp to obtain all services.
Q5: How can I make sure it's a secure transaction?
A5: Alibaba can protect buyers' interests, all of our transactions will go through the Alibaba platform. As you do the payment, the money will go directly to the Alibaba bank account. After we send your the items and you confirm the detailed information, Alibaba will release us the money.
Q6: Can you get the solar panel customized for us?
A6: Of course, brand name, solar panel color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:click "contact supplier" to contact us through Alibaba, we will give you the best price and look forward to your greetings.
