Quick Details
-
Model Number:
-
9-10mm
-
Product name:
-

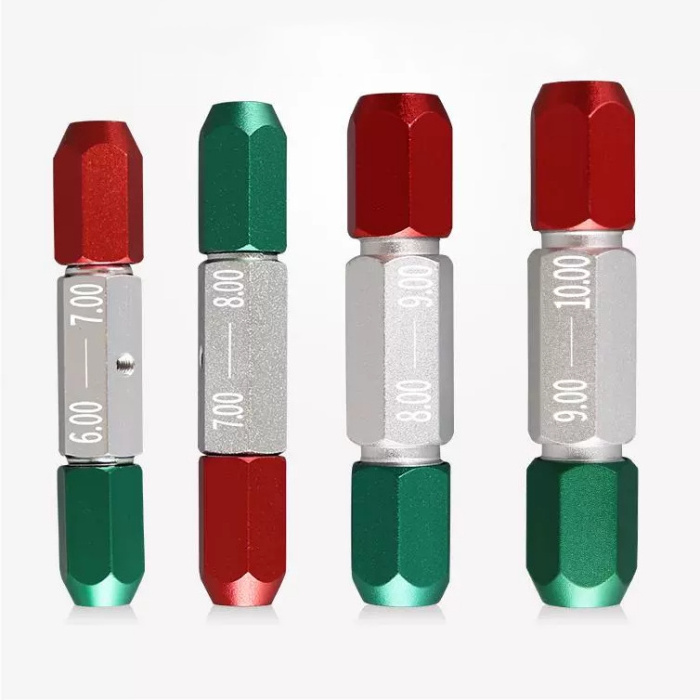

Pin gauge handle
-
Material:
-
Aluminum Alloy
-
Usage:
-
hode pin guage
-
Type1:
-
Double end
-
Type2:
-
Single end
-
Length:
-
90mm
-
Hexagon margin:
-
16mm
-
Applicable size:
-
9-10mm
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AFM
-
Model Number:
-
9-10mm
-
Product name:
-
Pin gauge handle
-
Material:
-
Aluminum Alloy
-
Usage:
-
hode pin guage
-
Type1:
-
Double end
-
Type2:
-
Single end
-
Length:
-
90mm
-
Hexagon margin:
-
16mm
-
Applicable size:
-
9-10mm
Pin gauges are round rods with specific dimensions made of white steel, tool steel, ceramics, tungsten steel bearing steel, or other materials with higher hardness.
The pin gauge is suitable for measuring hole diameter, hole spacing, and internal thread diameter in mechanical and electronic processing, and is especially suitable for measuring bending groove width and mold size.
It is used to check the position, measure the size of the hole, check the distance between two holes, and can also be used as a pass-stop gauge and to measure the depth of the hole. It is an essential inspection tool for standardized inspection of holes. The internationally advanced laser detector is used to detect the workpiece. And it is widely used in various high-precision technology fields such as electronic boards, circuit boards, molds, and precision machinery manufacturing.
The appearance forms include smooth needle gauges, handled needle gauges, titanium-plated needle gauges, ceramic needle gauges, etc.
| Double end pin gauge handle specification | |||
| No. | Applicable size | Length | Hexagon margin |
| 1 | 0.3-1 | 58 | 9 |
| 2 | 1-2 | 58 | 9 |
| 3 | 2-3 | 58 | 9 |
| 4 | 3-4 | 58 | 9 |
| 5 | 4-5 | 80 | 12 |
| 6 | 5-6 | 80 | 12 |
| 7 | 6-7 | 88 | 14 |
| 8 | 7-8 | 88 | 14 |
| 9 | 8-9 | 90 | 16 |
| 10 | 9-10 | 90 | 16 |
| 11 | 10-11 | 90 | 17 |
| 12 | 11-12 | 90 | 17 |
| 13 | 12-13 | 90 | 19 |
| 14 | 13-14 | 90 | 19 |
| 15 | 14-15 | 90 | 21 |
| 16 | 15-16 | 90 | 21 |
| 17 | 16-17 | 90 | 24 |
| 18 | 17-18 | 90 | 24 |
| 19 | 18-19 | 90 | 26 |
| 20 | 19-20 | 90 | 26 |
| 21 | 20-21 | 100 | 30 |
| 22 | 21-22 | 100 | 30 |
| 23 | 22-23 | 100 | 30 |
| Single end pin gauge handle specification | |||
| No. | Applicable size | Length | Hexagon margin |
| 1 | 0.3-1 | 46 | 9 |
| 2 | 1-2 | 46 | 9 |
| 3 | 2-3 | 46 | 9 |
| 4 | 3-4 | 46 | 9 |
| 5 | 4-5 | 55 | 12 |
| 6 | 5-6 | 55 | 12 |
| 7 | 6-7 | 70 | 14 |
| 8 | 7-8 | 70 | 14 |
| 9 | 8-9 | 76 | 16 |
| 10 | 9-10 | 76 | 16 |
| 11 | 10-11 | 80 | 17 |
| 12 | 11-12 | 80 | 17 |
| 13 | 12-13 | 80 | 19 |
| 14 | 13-14 | 80 | 19 |
| 15 | 14-15 | 80 | 21 |
| 16 | 15-16 | 80 | 21 |
| 17 | 16-17 | 90 | 24 |
| 18 | 17-18 | 90 | 24 |
| 19 | 18-19 | 90 | 26 |
| 20 | 19-20 | 90 | 26 |
| 21 | 20-21 | 90 | 30 |
| 22 | 21-22 | 90 | 30 |
| 23 | 22-23 | 90 | 30 |
