- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-

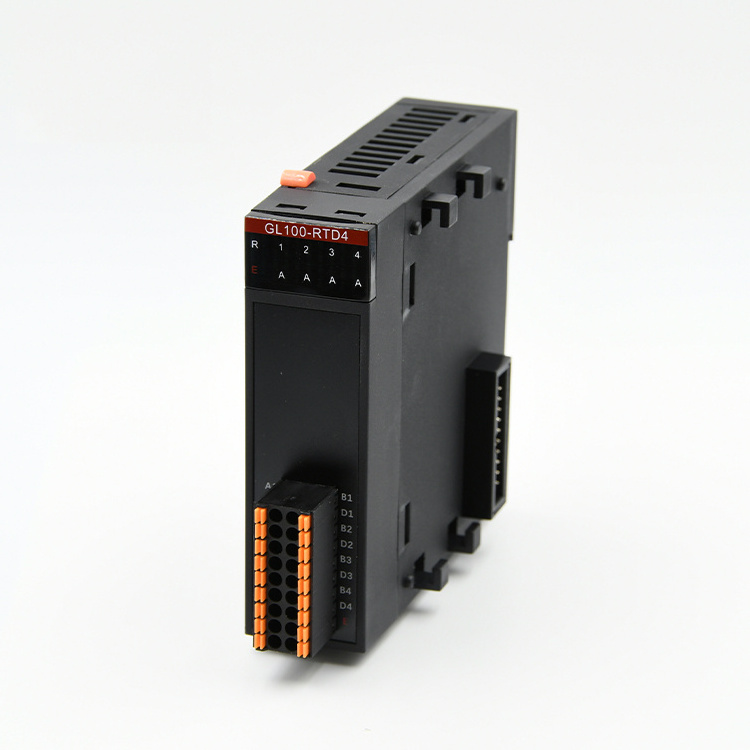

GL100-RTD4
-
Product name:
-
PLC io module
-
Condition:
-
100%new 100%Original
-
Warranty:
-
12 Months
-
Package:
-
Carton Package
-
Service:
-
OEM.ODM
-
MOQ:
-
1PCS
-
Quality:
-
100% Strictly Tested
-
Product size:
-
28*98*94mm
Quick Details
-
Network:
-
EtherNet/IP, EtherCAT, Modbus, Others
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
LicOS
-
Model Number:
-
GL100-RTD4
-
Product name:
-
PLC io module
-
Condition:
-
100%new 100%Original
-
Warranty:
-
12 Months
-
Package:
-
Carton Package
-
Service:
-
OEM.ODM
-
MOQ:
-
1PCS
-
Quality:
-
100% Strictly Tested
-
Product size:
-
28*98*94mm
Products Description
|
Product Name
|
PLC io module
|
|
Model
|
GL100-RTD4
|
|
Brand
|
LicOS
|
|
Place of Origin
|
Yunnan，China
|
|
Condition
|
100% New 100% Original
|
|
Series
|
GL100 series
|
|
Product Function
|
For the acquisition of analogue temperature signals
|
|
Application
|
PT100/PT1000 temperature field analogue signal acquisition
|
|
Core Points
|
★1:The input channel can be configured as temperature sensor type (2-wire, 3-wire, 4-wire) by IDE software.
★2: The resolution is 24-bit, which effectively reduces the analogue signal.
★3: Filtering time 1~100s is configurable.
★4: Sensitivity: 0.1℃, 0.1℉.
|
|
Technical Consulting Support
|
Yes
|
|
Warranty
|
1 year
|
|
Product Feature
|
· 4-Channel thermal resistance input module
· 24-Bit Resolution · Filter Time Configurable · Supports multiple types of thermocouple sensors · System side and field side are isolated |
Products Parameters
|
Type
|
Thermal resistance module
|
Thermocouple module
|
|
|
Product model
|
GL100-RTD4
|
GL100-TC4
|
|
|
Input Chanel
|
4-chanel input
|
4-chanel input
|
|
|
Sensor type
|
Thermal PT100、PT1000
|
Thermocouple B、E、J、K、N、R、S
|
|
|
Wiring method
|
Two wire, three wire, four wire
|
Two wire
|
|
|
resolution ratio
|
24 bit
|
24 bit
|
|
|
sensitivity
|
0.1℃，0.1℉
|
0.1℃，0.1℉
|
|
|
sampling period
|
250ms、500ms、1000ms Configurable
|
250ms、500ms、1000ms Configurable
|
|
|
Filtering time
|
0~100s Configurable
|
0~100s Configurable
|
|
|
Precision
|
±0.3%F.S
|
±0.3%F.S
|
|
|
Isolation method
|
IO terminal power isolation,
non isolation between channels |
IO terminal power isolation,
non isolation between channels |
|
|
System side power consumption
|
5VDC/50mA
|
5VDC/50mA
|
|
|
Site side Power consumption
|
24VDC/20mA
Internal self power supply |
24VDC/20mA
Internal self power supply |
|
|
working temperature
|
-20℃-70℃
|
-20℃-70℃
|
|
|
Storage temperature
|
-40℃-85℃
|
-40℃-85℃
|
|
|
Working humidity
|
5%-95%RH
No condensation |
5%-95%RH
No condensation |
|
|
Storage humidity
|
5%-95%RH
No condensation |
5%-95%RH
No condensation |
|
|
Certification and testing
|
CE certification,GB/T 25119 Vehicle Gauge Testing,Detection of "Tunnel Programmable Controller" by Ministry of Transport of China
|
|
|
Products Feedback
Products Certifications
About Us
Unionscience Technology Group Co., Ltd. was founded in 2000, is a high-tech enterprise focusing on industrial controller research and development and industrial Internet development. Then, we are a manufacturer with a research and development center and are now launching our brand LicOS, moreover, we support OEM and ODM. We also possess many certifications to ensure products' safety and quality, such as, CE certifications, ISO series certifications.
In the LicOS PLC and PAC product family, Unionscience has launched EC300 series small and medium-sized PLC, EC400 series large PLC, MC600 series PAC, GL100 series distributed IO system, covering nearly 100 types of CPU modules, remote communication modules and I/O modules. It meets the application requirements of logic control, sequence control, process control, motion control, edge intelligence and other industrial control scenarios, and has been widely used in transportation, logistics, chemical industry, new energy, machinery, high-end equipment manufacturing and other fields, providing personalized solutions for the automation field.
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
FAQ
Q1: Are you trading company or manufacturer?
We are manufacture. We can give you one-stop station automation purchasing.
We are manufacture. We can give you one-stop station automation purchasing.
Q2: ls there any engineer can help for technical supporting?
Sure, we have. Our technical team can help you for selecting PLC, Servo motor & drive, VFD(Variable Frequency Drive), Inverter, and so on. If you need any help, you can contact our technical department directly.
Sure, we have. Our technical team can help you for selecting PLC, Servo motor & drive, VFD(Variable Frequency Drive), Inverter, and so on. If you need any help, you can contact our technical department directly.
Q3: Do you support customization?
Yes, we do. We support products customization, such as, logo customization, package customization, and so on.
Yes, we do. We support products customization, such as, logo customization, package customization, and so on.
Q4: Do you supply 100% original and new products?
Of course, yes. No copy, no fake, no refurbished! Original only!
Of course, yes. No copy, no fake, no refurbished! Original only!
Q5: How long is your leading time?
Generally 2-3 working days if the goods are in stock. If large quantity, it will take 10-15 working days after getting the payment. If not common products, always need 3-4 weeks or 6-8 weeks to order.
Generally 2-3 working days if the goods are in stock. If large quantity, it will take 10-15 working days after getting the payment. If not common products, always need 3-4 weeks or 6-8 weeks to order.
Q6: How long is your delivery time?
It's up to your order quantity and shipping channels choices. We have many cooperatives shipping channels, such as, by sea, by express, by air, by land, and so on. If your order quantity is less, we could ship the package out by express, the delivery time just needs 3-7 days.If your order quantity is large, we could ship the package out by sea, the delivery time is about 25-45 days.Other shipping channels delivery time is about 15-25 days.
It's up to your order quantity and shipping channels choices. We have many cooperatives shipping channels, such as, by sea, by express, by air, by land, and so on. If your order quantity is less, we could ship the package out by express, the delivery time just needs 3-7 days.If your order quantity is large, we could ship the package out by sea, the delivery time is about 25-45 days.Other shipping channels delivery time is about 15-25 days.
Q7: Do you support samples?
Yes, we support partial products samples.
Yes, we support partial products samples.
Q8: Do you support after sale warranty service?
Yes, we support after sale warranty service within 1 year. All fees depends on the actual situation.
Yes, we support after sale warranty service within 1 year. All fees depends on the actual situation.
