Quick Details
-
Wetted Parts:
-
Glass & PTFE
-
Filtering Funnel:
-
5L ~ 50L
-
Receiving Flask:
-
5L ~ 50L
-
Sealing:
-
PTFE and mechanical
-
Vacuum Level:
-
100 mbar
-
Discharge Valve:
-
Glass with PTFE open/close
-
Filter System:
-
Filter Paper or membrane
Quick Details
-
Brand Name:
-
HJLab
-
Model Number:
-
GF-50L
-
Place of Origin:
-
China
-
Wetted Parts:
-
Glass & PTFE
-
Filtering Funnel:
-
5L ~ 50L
-
Receiving Flask:
-
5L ~ 50L
-
Sealing:
-
PTFE and mechanical
-
Vacuum Level:
-
100 mbar
-
Discharge Valve:
-
Glass with PTFE open/close
-
Filter System:
-
Filter Paper or membrane
Product Description

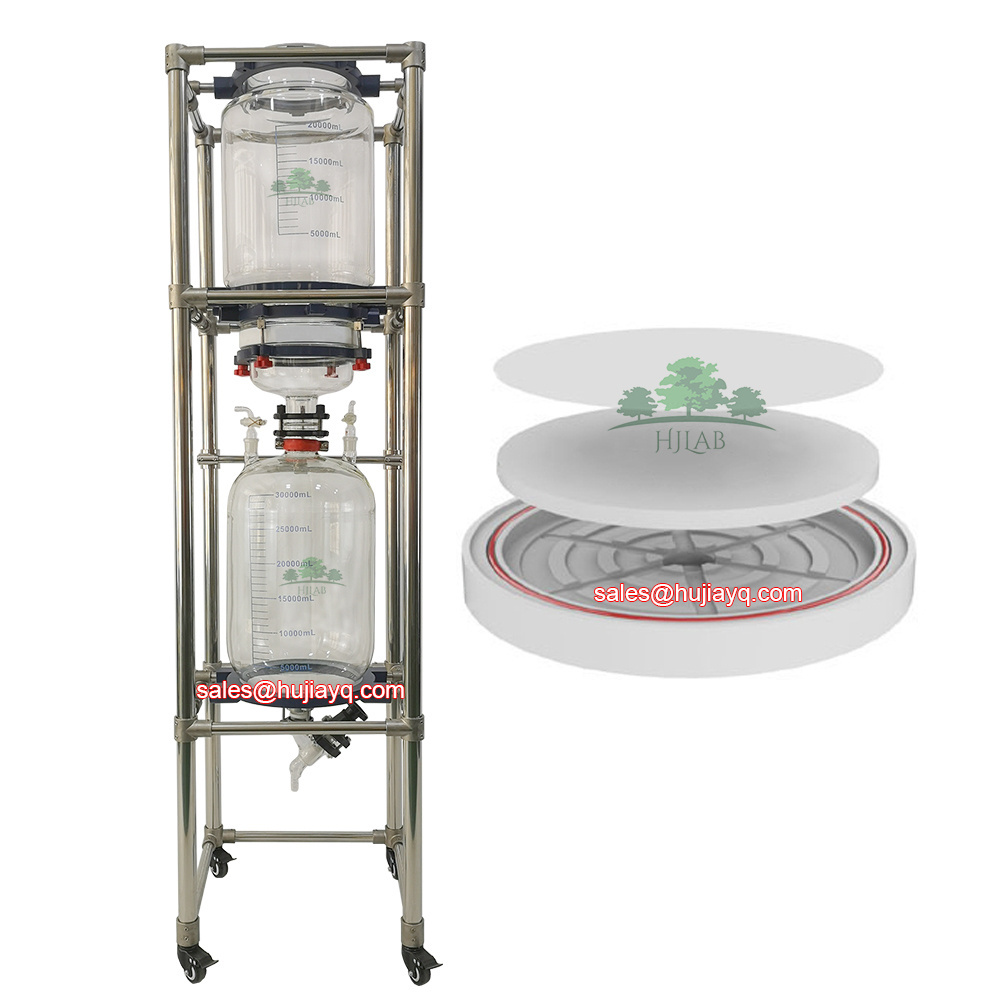

Buchner Funnel with Glass & PTFE
Allowing you for vacuum filtering and separating solids from liquids
All wetted parts both are Glass and PTFE
Glass & PTFE Filtering System
Specification
|
Wetted Parts Materials
|
High Borosilicate Glass 3.3
PTFE
(Anti-Corrosion)
|
|
|
|
|||
|
Filtering Glass Vessel
|
5L ~ 100L
(Can be customized)
|
|
|
|
|||
|
PTFE Filtering System
|
First Level: (2 options)
Filter Paper
Filter Membrane
(Materials: PTFE or PVDF, 2μm, 5μm, 10μm, 20μm, 30μm)
Second Level: (3 options)
Glass Sand Core
PTFE Sand Core
PTFE board with holes
PTFE Gaskets and O-rings and Baseplate
|
|
|
|
|||
|
Buffering Glass Bottom
|
Prevent liquid flowing down along with the glass wall
|
|
|
|
|||
|
Sealing Style
|
PTFE and Mechanical
|
|
|
|
|||
|
Vacuum Port
Pressure Release Port
|
2 option:
24/29 joints
24/40 joints
|
|
|
|
|||
|
Receiving Flask
|
10L ~100L
2 options:
(Cylinder)
(Round-Bottom)
|
|
|
|
|||
|
Discharge Valve
|
Zero-Dead space glass discharge valve with PTFE open/close
|
|
|
|
|||
|
Swivel Caster
|
4
|
|
|
|
|||
Reduce the Overall Height
Packing & Delivery
Standard Wooden Package
Any glaswares are broken during transportation and
we'll Fedex you for free
. Thanks!
Lead Time: 1 units needs 2 workdays to ready for shipping
