ACCURL® Mechanical Eccentric Presses
are stronger and more feature packed than any gap frame press on the market today. More steel in the c-section of the frame reduces what is known as angular deflection under full stamping loads. Larger flywheel, higher energy rating point ABDC, connecting rods and ball screws. New cast slide body with digital die height indicator and large flanged upper die adapter plate. Slide guides are taper wedge design like our straight side presses to assure long die life during production runs.
The JH21- 200 ton GEN-2 (left) shows our standard I-PRESS control, side safety guards, t-stand run station and t-slotted bolster and slide for quick clamping of dies.
Standard Execution:
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately andprotecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•OCP-25/45: manual adjusting, scale indicated.
•OCP-45: optional elec. adjustment with digital display.
•OCP-63 superior: elec. adjustment with digital display.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device..
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
1150*900*1880mm
-
Motor Power (kW):
-
2.2
-
Model Number:
-
JH21
-
Weight (T):
-
2.35
-
Bolster area:
-
450*300mm
-
Main power:
-
Siemens Electrical
-
Pneumatic component:
-
TACO,Japan,CE
-
Main Motor:
-
Siemens Electrical
-
Product name:
-
Punching Pressing Machine
-
Programmable logic controller PLC:
-
OMRON from Japan
-
Hydraulic overload:
-
Germany
-
Automatic lubrication system:
-
Sino-Japanese joint,which has block alarm
-
Type:
-
Hydraulic Punching Press
-
Brand:
-
ACCURL
Quick Details
-
Slide Stroke (mm):
-
120
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AccurL
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
1150*900*1880mm
-
Motor Power (kW):
-
2.2
-
Model Number:
-
JH21
-
Weight (T):
-
2.35
-
Bolster area:
-
450*300mm
-
Main power:
-
Siemens Electrical
-
Pneumatic component:
-
TACO,Japan,CE
-
Main Motor:
-
Siemens Electrical
-
Product name:
-
Punching Pressing Machine
-
Programmable logic controller PLC:
-
OMRON from Japan
-
Hydraulic overload:
-
Germany
-
Automatic lubrication system:
-
Sino-Japanese joint,which has block alarm
-
Type:
-
Hydraulic Punching Press
-
Brand:
-
ACCURL
Products Description

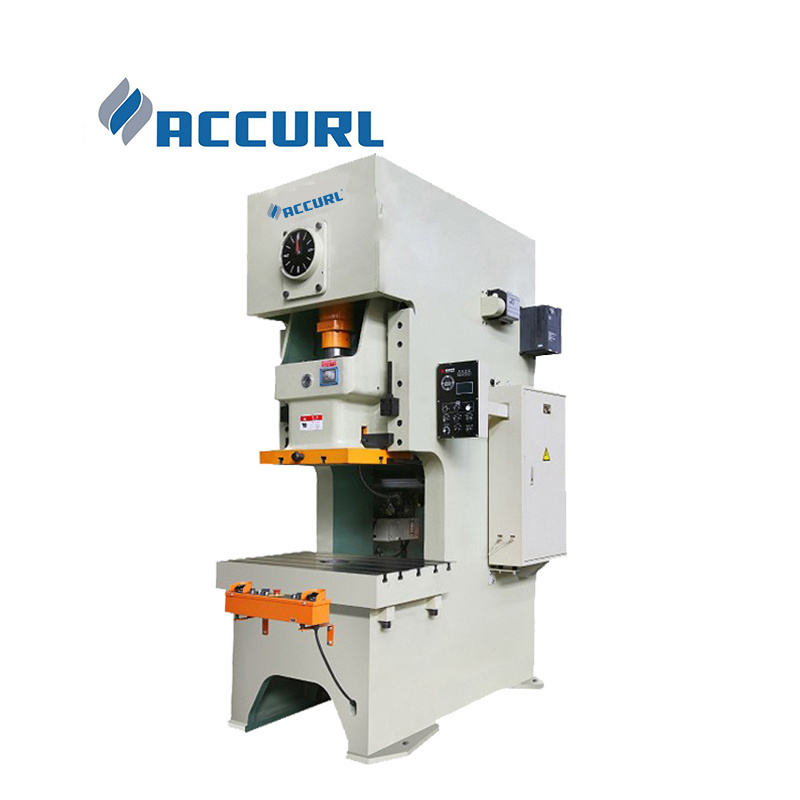

ACCURL JH21 Series C-Frame Fixed Bolster Press
Details Images
Major Parts
Name
:
Machine Body
Original: China
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Original: China
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Control system
Name:
NC Control system
Original: Made in China
• Six programmable limit switches
• Four programmable die protection inputs
• LCD display screen for status and fault messages
• LED display for crank angle and spm
Original: Made in China
• Six programmable limit switches
• Four programmable die protection inputs
• LCD display screen for status and fault messages
• LED display for crank angle and spm
Pneumatic clutch & brake
•
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
• Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.
• Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.
Safety light curtains:
•
Protective fence and the safety interlock to ensure the operation safety. have a movable single-hand pedal switch,easy to
operate.
• Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
operate.
• Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
Control button station
•
Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to
OSHA.
OSHA.
Specification
|
Type
|
Throat Depth
(mm)
|
Motor
(kw)
|
Weight
(kg)
|
Nomina
(kn)
|
|||
|
JH-21-25
|
210
|
3
|
2450
|
250
|
|||
|
JH-21-45
|
225
|
5.5
|
3550
|
450
|
|||
|
JH-21-60
|
270
|
5.5
|
5150
|
600
|
|||
|
JH-21-80
|
310
|
7.5
|
6450
|
800
|
|||
|
JH-21-100
|
330
|
7.5
|
8650
|
1000
|
|||
|
JH-21-125
|
More detalis, please contact our saler, will give you best solution.......
|
|
|
|
|||
