Quick Details
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ONLYKEM
-
Voltage:
-
110v,220v,380V,420v,440v
-
Power:
-
Energy save
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Product name:
-
Solar Powered Cold Storage Room For Fish
-
Service Door:
-
36 x 81" Metal Plugin Service Door
-
Refrigeration Room Door Type:
-
Hinged / Sliding / Swing / Lifting Doors
-
Surface Material:
-
Galvanized Steel/Stainless Steel
-
PU Core Density:
-
40+-/2kg/M2
-
Floor of Refrigeration Room:
-
PU Penal/Concrete with XPS / Checker Plate
-
Refrigeration System:
-
New Generation of Smart Cooling System
-
Insulation Panel:
-
PIR Panel/PUR Panel
-
Condensing Unit:
-
Open / Box Type
-
Evaporator Case:
-
PPGI/Stainless Steel/ Aluminum Box
Quick Details
-
Temperature:
-
-45℃ ~ +20℃
-
Compressor brand:
-
Copeland, Bitzer
-
Panel Thickness:
-
100mm, 200mm, 120mm, 75mm, 50mm, 150mm
-
Cooling Capacity:
-
50ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ONLYKEM
-
Voltage:
-
110v,220v,380V,420v,440v
-
Power:
-
Energy save
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Product name:
-
Solar Powered Cold Storage Room For Fish
-
Service Door:
-
36 x 81" Metal Plugin Service Door
-
Refrigeration Room Door Type:
-
Hinged / Sliding / Swing / Lifting Doors
-
Surface Material:
-
Galvanized Steel/Stainless Steel
-
PU Core Density:
-
40+-/2kg/M2
-
Floor of Refrigeration Room:
-
PU Penal/Concrete with XPS / Checker Plate
-
Refrigeration System:
-
New Generation of Smart Cooling System
-
Insulation Panel:
-
PIR Panel/PUR Panel
-
Condensing Unit:
-
Open / Box Type
-
Evaporator Case:
-
PPGI/Stainless Steel/ Aluminum Box

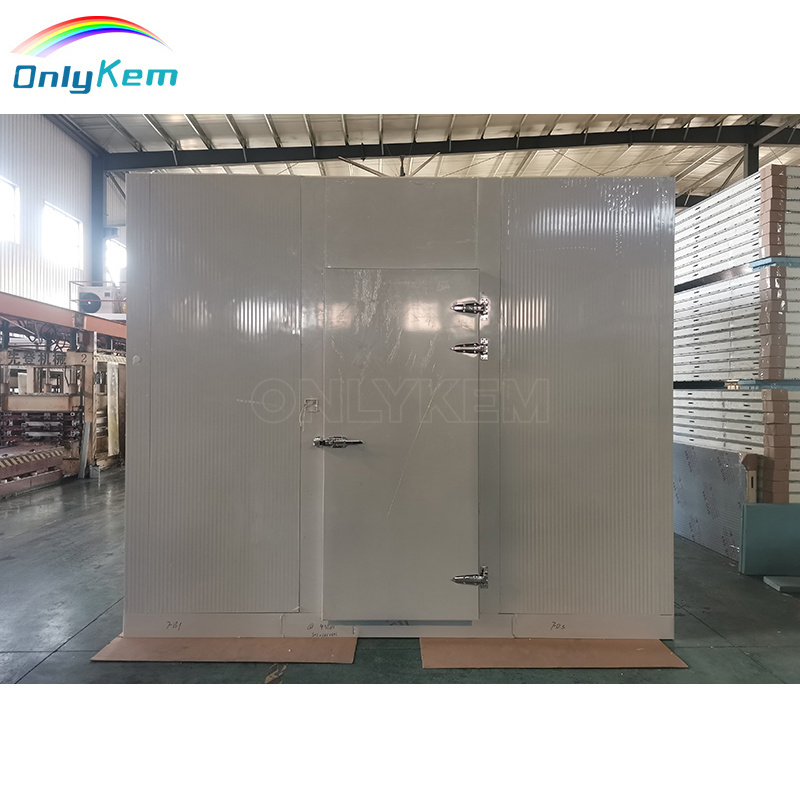

Solar Powered Cold Storage Room For Fish
Product Description
Design
OnlyKem Cold Room has different capacity, it can be customized design according to your requirements.
Temperature
The temperature can be customized from -60℃ ~ +20℃.
Capacity
OnlyKem Cold Room is from 5 CBM to 10,000CBM, the dimension can be customized according to your requirements. It applies to different products from 1 Tons to 2,500 Tons or more.
Application
Cold Room can store food, fruit, vegetable, fish, meat, ice, flower, milk, drinks, medicine, etc.
Customized Service
|
Application
|
Products
|
Temperature
|
Dimension&
|
Power Supply
|
|
|
|
|
Capacity(Tons)
|
|
|
Ripening
|
Banana, Mango, Mushroom etc
|
5 ~ 15℃
|
Customized
|
220V-1Ph-50Hz, 380V-3Ph-50hZ,
220V-3Ph-60Hz, 440/480V-3Ph-60Hz.
|
|
Fresh Keeping
|
Fruits, Vegetables, Medicine etc
|
0~ -5℃
|
Customized
|
|
|
Cooling
|
Meat, fish, ice etc
|
-10~ -20℃
|
Customized
|
|
|
Freezing
|
Meat, Fish etc
|
-18~ -25℃
|
Customized
|
|
|
Blast Freezing
|
Meat, Fish, Ice cream, Cherry etc
|
-20 ~ -40℃
|
Customized
|
|
Product Details
|
PU Panels With Cam-lock
|
|
|
||
|
Thickness
|
75mm 100mm 120mm 150mm 200mm
|
|
||
|
Width
|
Standard: 950mm
Customization Available |
|
||
|
Length
|
Maximum 10m without connection
|
|
||
|
PU Parameters
|
Density ≥ 42kg/m³
Flame Retardent Time ≤ 5s Hook Distance = 900mm |
|
||
|
Plate
|
Color Steel
|
0.326mm 0.376mm 0.426mm 0.476mm
|
||
|
|
Stainless Steel
|
0.4mm 0.5mm
|
||
|
|
BaoStell
|
0.5mm
|
||
|
|
Embossed Aluminium
|
0.7mm 0.8mm
|
||
Cold Room Door
1.Perfect sealing
2.Reliable, safe and easy to operate
3.Cold Room Door Series: hinged door,sliding door,swing door,replaced door
4.Replaced Door: Whether you want to replace the original door or open a new door of the old cold room.
5.Size:
Hinged door: the standard size is 0.8 m wide and 1.8 m high, we accept customization, but its width should not exceed 1.2 m.
Double swing door: if the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service life.
Sliding door: the standard size is 1.5 m in width and 2 m in height, very convenient for trolley get in and out. It is often used in larger freezer, such as 6 m in length and 5 m width.
Double swing door: if the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service life.
Sliding door: the standard size is 1.5 m in width and 2 m in height, very convenient for trolley get in and out. It is often used in larger freezer, such as 6 m in length and 5 m width.
Condensing Unit
• Compressor Optional:
1-Hermetic Scroll 2-Semi-hermetic or Screw
• Condenser: Air cooled or Water cooled
• Frame: can be stell shell with spray painting or open type on stell frame
• Refrigerant: R404a
1-Hermetic Scroll 2-Semi-hermetic or Screw
• Condenser: Air cooled or Water cooled
• Frame: can be stell shell with spray painting or open type on stell frame
• Refrigerant: R404a
Smart Packaged Unit
• Compressor HP: 2-15hp
• Working Temp.:+5~-30ºC
• Compressor Type: Scroll / Rotary
• Independent developed smart CDU(Condensing Unit) controller •Advanced fuzzy controlled EXV module
• Working Temp.:+5~-30ºC
• Compressor Type: Scroll / Rotary
• Independent developed smart CDU(Condensing Unit) controller •Advanced fuzzy controlled EXV module
• Intelligent hot-gas defrost on
demand •Condenser fan-speed controls
•Self-diagnosis function Intelligent alarm system
demand •Condenser fan-speed controls
•Self-diagnosis function Intelligent alarm system
Unit Cooler
Collared fan outlet for wide air throw
SS ceiling mounting clamps for easy installation
Double drip tray
Al Mg powder coated, GI powder coated & SS 304 casing for rust free operation
Bullet expansion on tubes
Cooling capacity ranging from 1.2 kW to 60 kW
Fin spacing available from 4.5 mm to 12mm
Customer Feedback
Our customers are from the United States, France, Philippines, Brunei, Cambodia, Kuwait, Mongolia, Maldives, Malaysia, Qatar, Sri Lanka, Nepal, Senegal, Ghana, Cote d'Ivoire, Tanzania, Australia, Canada, New Zealand, Mauritius, etc.
Product packaging
The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
