Quick Details
-
Return Force (kN):
-
120 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Woda
-
Year:
-
New
-
Voltage:
-
220V,380V,440V, Customized as required
-
Dimension(L*W*H):
-
1500X1500x4500
-
Weight (T):
-
2.4 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
High quality products
-
Brand:
-
WODA
-
Product name:
-
150 ton press machine hydraulic press 150 ton metal pressing machine
-
CNC or Not:
-
Normal
-
Core Component:
-
Motor
-
After-sales Service:
-
Online support
-
Application:
-
Manhole cover hydraulic press
-
Advantage:
-
Fast Speed
-
Certification:
-
Provide
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
20
-
Return Force (kN):
-
120 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Woda
-
Year:
-
New
-
Voltage:
-
220V,380V,440V, Customized as required
-
Dimension(L*W*H):
-
1500X1500x4500
-
Weight (T):
-
2.4 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
High quality products
-
Brand:
-
WODA
-
Product name:
-
150 ton press machine hydraulic press 150 ton metal pressing machine
-
CNC or Not:
-
Normal
-
Core Component:
-
Motor
-
After-sales Service:
-
Online support
-
Application:
-
Manhole cover hydraulic press
-
Advantage:
-
Fast Speed
-
Certification:
-
Provide
Product Description

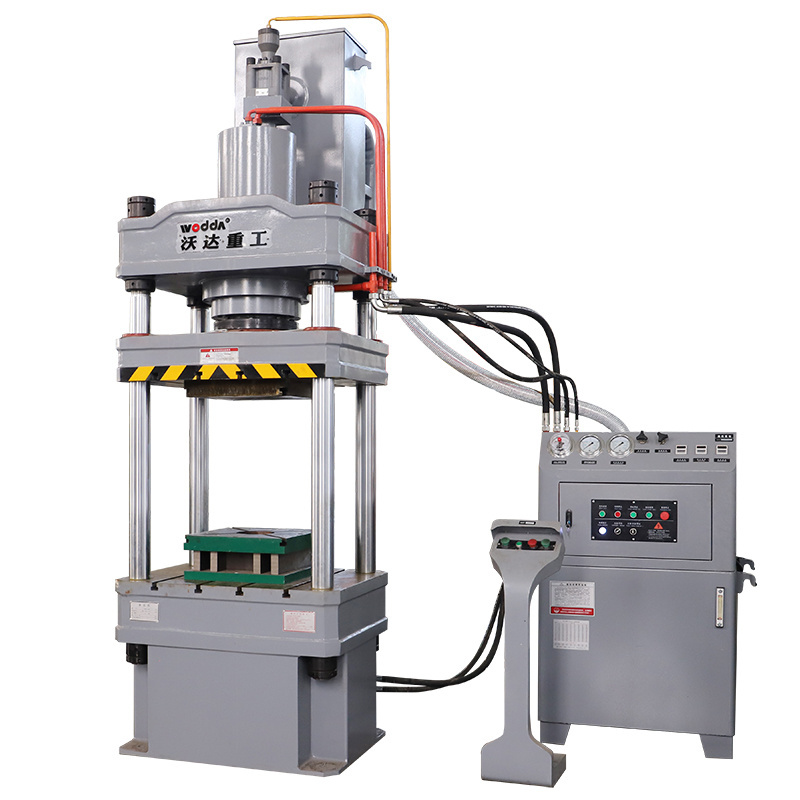

Woda 150 ton press machine hydraulic press 150 ton metal pressing machine
:
Characteristics:
Woda 150 ton press machine hydraulic press 150 ton metal pressing machine
specially made large countertops according to customer needs,different tonnage.
Hydraulic control adopts to insert set valve integrated system, decrease let out Point , Movement reliability, durable and long life span ,It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time , The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control,Can realization manual,Semi-automatic,automatic 3 operate form
.
Specification
Woda 150 ton press machine hydraulic press 150 ton metal pressing machine
:
|
Specification
|
|
Unit
|
150T
|
150T-Z
|
160T
|
160T-K
|
160T-Z
|
|
|
Nominal force
|
|
KN
|
1500
|
1500
|
1600
|
1600
|
1600
|
|
|
Ejecting force
|
|
KN
|
300
|
300
|
300
|
300
|
300
|
|
|
Max pressure of liquid
|
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
|
|
Stroke of slider
|
|
mm
|
400
|
400
|
400
|
400
|
400
|
|
|
Max opening height
|
|
mm
|
700
|
700
|
800
|
800
|
800
|
|
|
Working table size
|
|
mm*mm
|
660*560
|
660*560
|
800*800
|
800*800
|
800*800
|
|
|
Ejecting stroke
|
|
mm
|
200
|
200
|
200
|
200
|
200
|
|
|
Speed of slider
|
Idle speed
|
mm/s
|
30
|
150
|
30
|
100
|
150
|
|
|
Oil pump displacement
|
Working speed
|
mm/s
|
8-15
|
8-15
|
8-15
|
8-15
|
8-15
|
|
|
Ejection force
|
Return speed
|
mm/s
|
32
|
110
|
28
|
75
|
75
|
|
|
Motor power
|
|
mm
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
|
Finished Products
Detailed Images
Shot blasting combines three new processes of high pressure vacuuming dough clearance.After the equipment is commissioned,the fuel tank is opened again,and the hydraulic oil flows into the main tank through the high pressure,and the components of each part are cleaned twice.
The cartridge valve is integrated into the system to reduce leakage points,reliable operation and long service life,The two way cartridge valve controls the flow and pressure of the hydraulic oil,and the pressure is stable.
03.HIGH PRESSURE PIPELINE
The use of seamless steel pipe effectively solves the traditional hydraulic oil pipe easy to age,poor pressure resistance.
04.COLUMN GUIDE SLEEVE
The column material is 45# steel,the surface is hard chrome plated.The slider relies on four columns for vertical movement,and the four column guide sleeve is the boundary oil free lubrication bearing,which improves the friction mechanism,reduces the frictional resistance,and avoids the column scratches and strains.
