Quick Details
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
870mm * 700mm * 1150mm
-
Power (kW):
-
17 kw
-
Weight (KG):
-
150 KG
-
Driven mode:
-
Hydraulic
-
Air source:
-
0.7Mpa,0.4m3 /min
-
Raw output:
-
2-14kg/min
-
Maximum output pressure:
-
20-30Mpa
-
AB material output ratio:
-
1:1
-
Material:
-
Poly + ISO/MDI
-
Application:
-
walls, cold storage, roof, insulation tanks, road construction
-
Product Name:
-
New version hydraulic driven polyurea spray coating machine
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Machine Type:
-
pu foam machine
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
870mm * 700mm * 1150mm
-
Power (kW):
-
17 kw
-
Weight (KG):
-
150 KG
-
Driven mode:
-
Hydraulic
-
Air source:
-
0.7Mpa,0.4m3 /min
-
Raw output:
-
2-14kg/min
-
Maximum output pressure:
-
20-30Mpa
-
AB material output ratio:
-
1:1
-
Material:
-
Poly + ISO/MDI
-
Application:
-
walls, cold storage, roof, insulation tanks, road construction
-
Product Name:
-
New version hydraulic driven polyurea spray coating machine
-
Certification:
-
ce

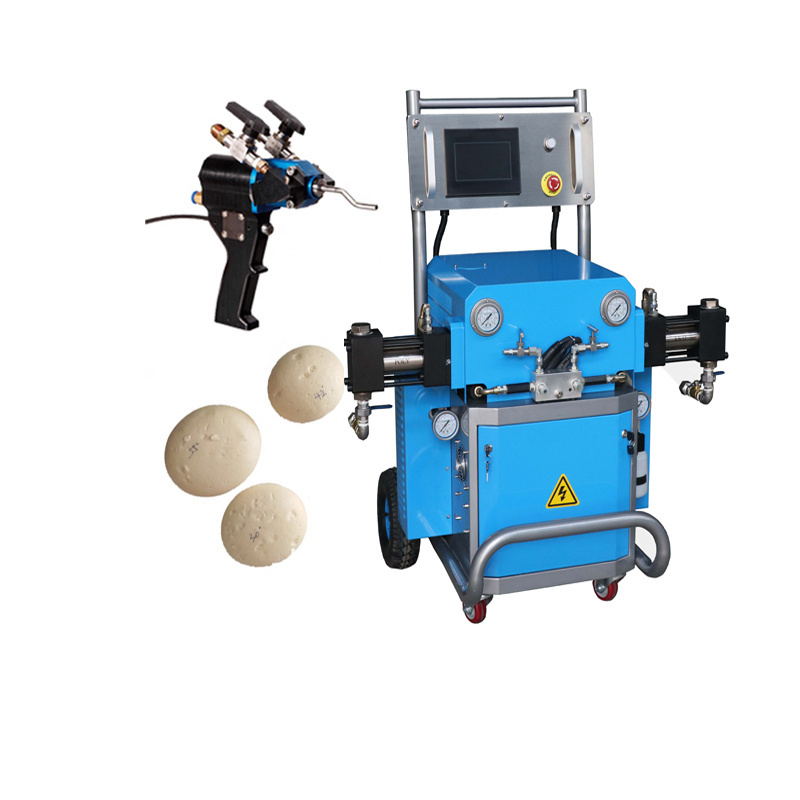

Hydraulic Polyurethane Foam/Pu polyurethane spray foam machine
1.Working efficiency can reach 60% or more,far greater than 20% efficiency of the pneumatic machine.
2.Hydraulic drive,less troubles
3.Working pressure up to 25 MPA,and very stable,large displacement per minute up to 24 kg.
4.Machine soft start,The booster pump is equipped with an overpressure valve.When the pressure exceeds the set pressure,it will automatically release pressure and protect the machine.
5.Electrical components,testing components,seals,all are all made in Germany,pumps made in Japan,solenoid valves made in Italy.
6.Only need 2.2 kW air compressor to work together,reducing the overall working load.
7.Equip with 8- inch operating touch screen PLC,convenient to observe the working status of the machine in real time.
- Work efficiency can reach 60% or more
- Imported Accessories
- Touch Screen PLC
|
Model |
CNMC-500 |
CNMC-500 L |
|
Total power |
17kW |
21 kW |
|
Heater power |
6 kw each side |
6 kw each side |
|
Heating hose power |
1000W / 15m |
1000W / 15m |
|
Driven mode |
Hydraulic |
Hydraulic |
|
Air source |
0.5-0.8MPa >=0.25m³ |
0.5-0.8MPa >=0.25m³ |
|
Chemical output |
2-24kg/min |
2-24kg/min |
|
Max Working pressure |
25MPa (250 bar) |
35Mpa (350 bar) |
|
A and B chemical output pressure |
1:1 |
1:1 |
|
Max hose support |
120 meters |
150 meters |
|
Each heater power |
3000W |
7500w |
|
Maximum Fluid Temperature |
88 ° C (190 ° F) |
88 ° C (190 ° F) |
|
Proportion Fixed Mainframe |
1 set |
1 set |
|
Self-cleaning spray gun |
1 set |
1 set |
|
Feed pump |
2 sets |
2 sets |
|
Heated hose |
49.2 ft (15 m) |
49.2 ft (15 m) |
|
Machine size |
870mm * 700mm * 1150mm |
1000 mm*750mm*1150mm |
