Quick Details
-
Capacity:
-
1.2~25m3/min
-
Working pressure:
-
16bar
-
Air connections:
-
1/2" - 3"
-
Application:
-
Compressed Air Pipeline
-
Filter accuracy:
-
3um, 1um, 0.01um
-
Weight:
-
1~8kg
-
HS code:
-
8421399090
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUNWIN
-
Product name:
-

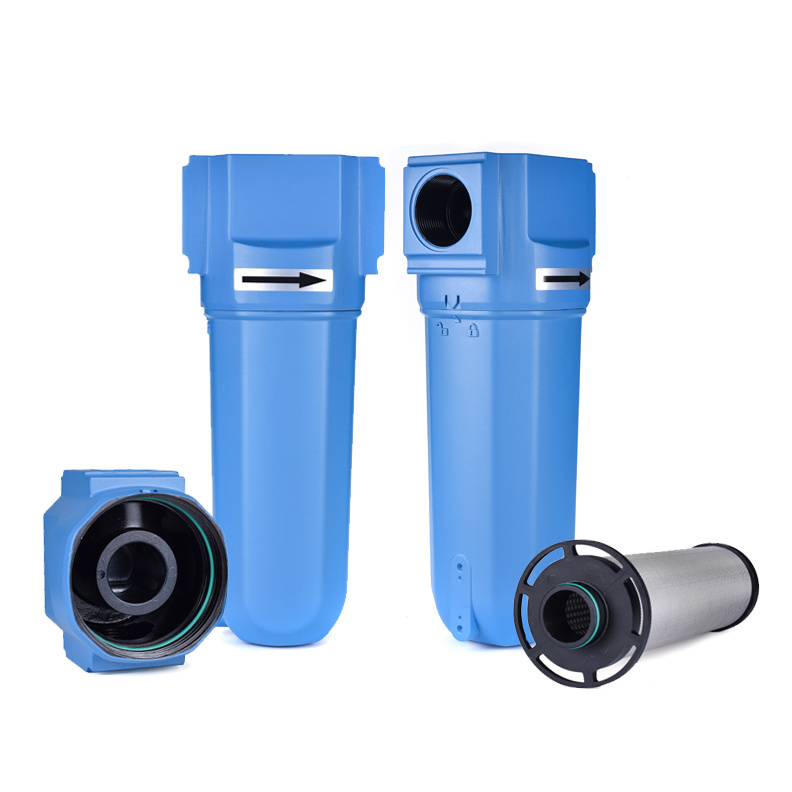

Compressed Air Filter
-
Capacity:
-
1.2~25m3/min
-
Working pressure:
-
16bar
-
Air connections:
-
1/2" - 3"
-
Application:
-
Compressed Air Pipeline
-
Filter accuracy:
-
3um, 1um, 0.01um
-
Weight:
-
1~8kg
-
HS code:
-
8421399090
Product
PROTECTION AND RELIABILITY
Compressed air can be contaminated by dirt, water and oil, which can damage the downstream appliances. SUNWIN, thanks to its 15 years experience in this sector offers a wide range of in-line filters for removing these contamination and protecting the equipment served by compressed air, according to the ISO 8573-1 standards.
Working conditions and Technical Data
• Capacity:1.2~25 m³/min
• Max. Working Pressure: 16 bar
• Max.working temperature:80℃
• Differential Pressure: 0.07 bar
• Filter Element Service: 6000 hours
• Air Filter With Differential Pressure Indicator
• Filter housing internal with anti-corrosion treatment.
• Max. Working Pressure: 16 bar
• Max.working temperature:80℃
• Differential Pressure: 0.07 bar
• Filter Element Service: 6000 hours
• Air Filter With Differential Pressure Indicator
• Filter housing internal with anti-corrosion treatment.
Features
1、
Generous aerodynamic flow paths and edged ports for reducing pressure drops.
2、
Differential pressure gauges are the Simple Way to Check a Filter Status.It helps the user to determine when to replace the filter element. SUNWIN in standard designs with higher temperature and increased corrosion resistance.
3、
The facilitates the element replacement by reducing service clearance, and the absence of tie-rod contributes in precious gain for the flow path through the end cap collar.
4、
Cataphoretic coating confers high quality surface finish as well as ensure long high protection against corrosion.
5
、
Filter elements are characterized by:
* high-quality stainless steel cores ensure extreme strength
* Endcaps made of synthetic material resistant up to 120 °C, ensuring absolutely corrosion free solution
* Outer drainer made of Strong alloy materialthat make drainage more timely and durable.
* high-quality stainless steel cores ensure extreme strength
* Endcaps made of synthetic material resistant up to 120 °C, ensuring absolutely corrosion free solution
* Outer drainer made of Strong alloy materialthat make drainage more timely and durable.
6
、
Outer drainer made of Strong alloy material that make drainage more timely and durable.
Optional Parts
Product Paramenters
|
Model
|
Capacity
Nm
3
/min
|
Connections
|
Dimensions(mm)
L*H
|
Weight
(KG)
|
|
AW*-001
|
1.4
|
G1"
|
117*293
|
3
|
|
AW*-002
|
2.4
|
G1"
|
117*293
|
3.2
|
|
AW*-003
|
3.8
|
G1.5"
|
133*330
|
4
|
|
AW*-006
|
6.5
|
G1.5"
|
133*428
|
5
|
|
AW*-008
|
8.5
|
G1.5"
|
133*428
|
5.2
|
|
AW*-010
|
10.7
|
G2"
|
159*555
|
6.5
|
|
AW*-013
|
13.5
|
G2"
|
159*555
|
6.8
|
|
AW*-015
|
18
|
G2.5"
|
175*620
|
12
|
|
AW*-020
|
22
|
G2.5"
|
175*620
|
12.5
|
Our Company
We are a manufacturing and trading combo specialize in compressed air drying and purification equipment for more than 15 years at this field. We have a professional technical team, which can provide professional and reasonable suggestions and technical support according to various customer needs, production needs and site conditions.
Our products are sold to more than 40 countries, including the United States, Germany, Australia, Japan and South Korea.We have full experience in exporting our machines to Southeast Asian market.Our products have passed the latest CE and ISO certificates.
Our Service
Pre-Sales Service
* We have separate testing room;
* To maintain pressure in the production process for 48 hours for testing;
* We will turn on the machine for test before theshipment;
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
