Quick Details
-
Max Discharge current:
-
40 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM
-
Model Number:
-
GSP9-C40-3P+N-40KA-275V
-
Nominal Discharge current:
-
20 A
-
Voltage Range:
-
275V 320V 385V 420V 440V
-
Voltage protection level:
-
<1,3/1,5/1,8/2,0 KV
-
Frequency:
-
50/60HZ
-
Nominal discharge current:
-
30KA
-
Maximum discharge current:
-
60KA
-
Standard:
-
IEC61643-1
-
Protection rating:
-
IP20
-
Certifications:
-
CE
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
Quick Details
-
Type:
-
T1+T2
-
Number of Pole:
-
3
-
Rated Voltage:
-
275V
-
Max Discharge current:
-
40 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM
-
Model Number:
-
GSP9-C40-3P+N-40KA-275V
-
Nominal Discharge current:
-
20 A
-
Voltage Range:
-
275V 320V 385V 420V 440V
-
Voltage protection level:
-
<1,3/1,5/1,8/2,0 KV
-
Frequency:
-
50/60HZ
-
Nominal discharge current:
-
30KA
-
Maximum discharge current:
-
60KA
-
Standard:
-
IEC61643-1
-
Protection rating:
-
IP20
-
Certifications:
-
CE
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
···········This link price is only for
GSP9-C40-3P+N-40KA-275V···········
Products Description

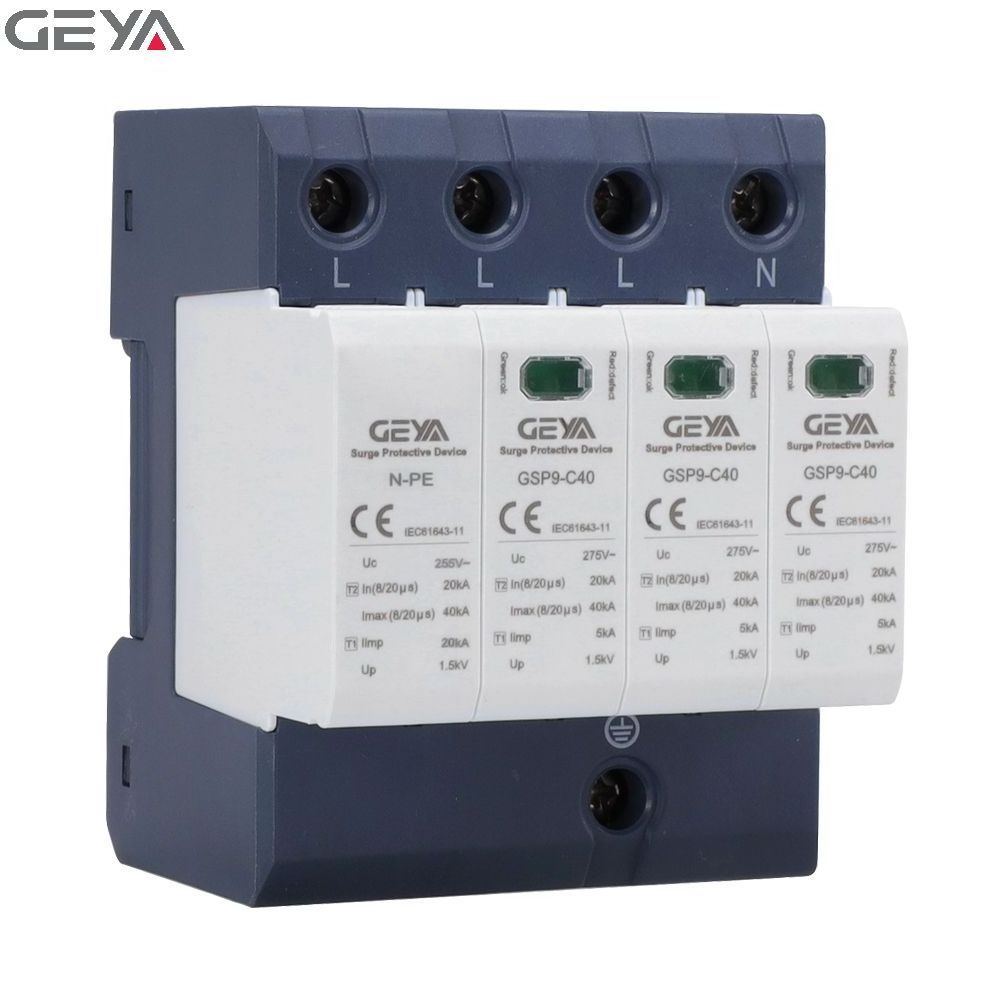

GSP9 series surge protective device (SPD)
is suitable for TN-S TN-C-S TT IT etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, it's designed according to IEC61643-1 GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device.
When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.
The combination lightning current and surge arrestors meet the type 1+2 requirement class according to IEC 61643-1. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.
Product Features
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350μs)
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Combination arrestors for buildings with lightning protection
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class 3+4
When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.
The combination lightning current and surge arrestors meet the type 1+2 requirement class according to IEC 61643-1. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.
Product Features
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350μs)
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Combination arrestors for buildings with lightning protection
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class 3+4
Product Paramenters
SPD classification according to EN61643-11
|
Type 1+2
|
SPD classification according to IEC61643-11
|
Class II
|
Max. continuous operating a.c. voltage (L-N) Uc
|
275V
|
Max. continuous operating a.c. voltage (N-PE) Uc
|
255V
|
Lightning impulse current (10/350p s) limp
|
12.5kA
|
Norminal discharge current (8/20 p s) In
|
20kA
|
Max. discharge current (8/20 y s) (L-N) Imax
|
50kA
|
Max. discharge current (8/20 p s) (N-PE) Imax
|
80kA
|
Voltage protection level Up
|
≤1.3kV
|
Voltage protection level 5kA Up
|
≤1.1kV
|
Max. backup fuse
|
160A gL
|
Response time tA
|
≤25nx
|
Operating temperature range Tu
|
-40℃-80℃
|
Operating state/fault indication
|
green/red
|
Cross-section area (Min.)
|
6 mm²
|
Cross-section area(Max.)
|
35mm²
|
For mounting on
|
35mm Din rail
|
Enclosure material
|
Thermalplastic UL94-V0
|
Degree of protection
|
IP20
|
