Quick Details
-
Dimension:
-
44.1*22.4*29.2mm
-
Voltage Range:
-
DC 4.8-8.4V
-
Stall Torque:
-
1.57N.M(16kg.cm)
-
No load Speed:
-
35.7rpm(0.28s/60°)
-
Motor Type:
-
Cored Motor
-
Running Degree:
-
0-300°
-
Communication Method:
-
TTL(Up To 115200 baud rate)
-
Feedback:
-
Position, Speed,Load
-
Position Sensor:
-
Potentiometer
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
K-power
-
Model Number:
-
RD15T
-
Dimension:
-
44.1*22.4*29.2mm
-
Voltage Range:
-
DC 4.8-8.4V
-
Stall Torque:
-
1.57N.M(16kg.cm)
-
No load Speed:
-
35.7rpm(0.28s/60°)
-
Motor Type:
-
Cored Motor
-
Running Degree:
-
0-300°
-
Communication Method:
-
TTL(Up To 115200 baud rate)
-
Feedback:
-
Position, Speed,Load
-
Position Sensor:
-
Potentiometer
Product Feature

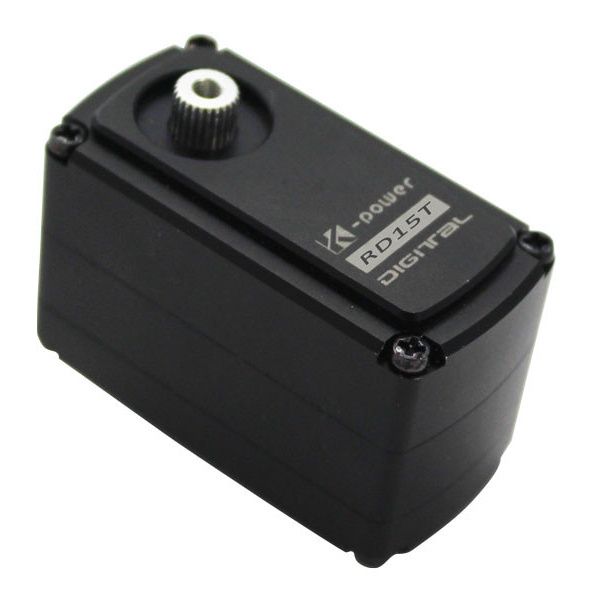

K-power 15kg digital servo/wheel mode double shaft servo for rc robot rc toy car servo RD15T
1.15kg Servo/Wheel Mode servo
2.Communication method: TTL
3.Feedback: Position Speed,Load
Product Description
|
Dimension
|
44.1*22.4*29.2mm
|
|
Weight
|
60.5g
|
|
Voltage Range
|
DC 4.8-8.4V
|
|
Rated Voltage
|
6.0V
|
|
Stall Torque
|
1.57N.M(16kg.cm)
|
|
No load Speed
|
35.7rpm(0.28s/60°)
|
|
Motor Type
|
Cored Motor
|
|
Resolution
|
0.32°
|
|
Running Degree
|
0-300°
|
|
Mode
|
Servo/Wheel Mode(endless rotation)
|
|
Communication Method
|
TTL(Up To 115200 baud rate)
|
|
NO.of Wire
|
4Pin
|
|
ID
|
0-254
|
|
Feedback
|
Position, Speed,Load
|
|
Position Sensor
|
Potentiometer
|
|
Gear
|
7075 Aluminium Coated With Titanium
|
Detailed Images
Our factory
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Customized servo, and offer sample testing support.
* View our Factory.
After-Sales Service
* Guarantee repair
* Engineers available to service operation
Quality Control
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products during processing.
3. 100% goods inspected before packing.
