Quick Details
-
Panel Size:
-
Customize
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LT-DMX-P7.62-Single Color
-
Usage:
-
indoor
-
Display content:
-
Scrolling led moving message sign led display sign outdoor LED module
-
Long life span:
-
11 years
-
Low power consumption:
-
300w-400w/sqm
-
Display Function:
-
Text Message
-
Control mode:
-
LAN/Wifi/USB
-
other option:
-
temperature,humidity,sensor,automatic,auto-showing
-
Power Supply:
-
110V~240V AC
-
Installation:
-
Fixed Installation
-
Pixel Pitch:
-
7.62mm
Quick Details
-
Application:
-
Indoor, semi-outdoor
-
Brand Name:
-
LIGHTIN
-
Color:
-
Red, Single red
-
Panel Size:
-
Customize
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LT-DMX-P7.62-Single Color
-
Usage:
-
indoor
-
Display content:
-
Scrolling led moving message sign led display sign outdoor LED module
-
Long life span:
-
11 years
-
Low power consumption:
-
300w-400w/sqm
-
Display Function:
-
Text Message
-
Control mode:
-
LAN/Wifi/USB
-
other option:
-
temperature,humidity,sensor,automatic,auto-showing
-
Power Supply:
-
110V~240V AC
-
Installation:
-
Fixed Installation
-
Pixel Pitch:
-
7.62mm

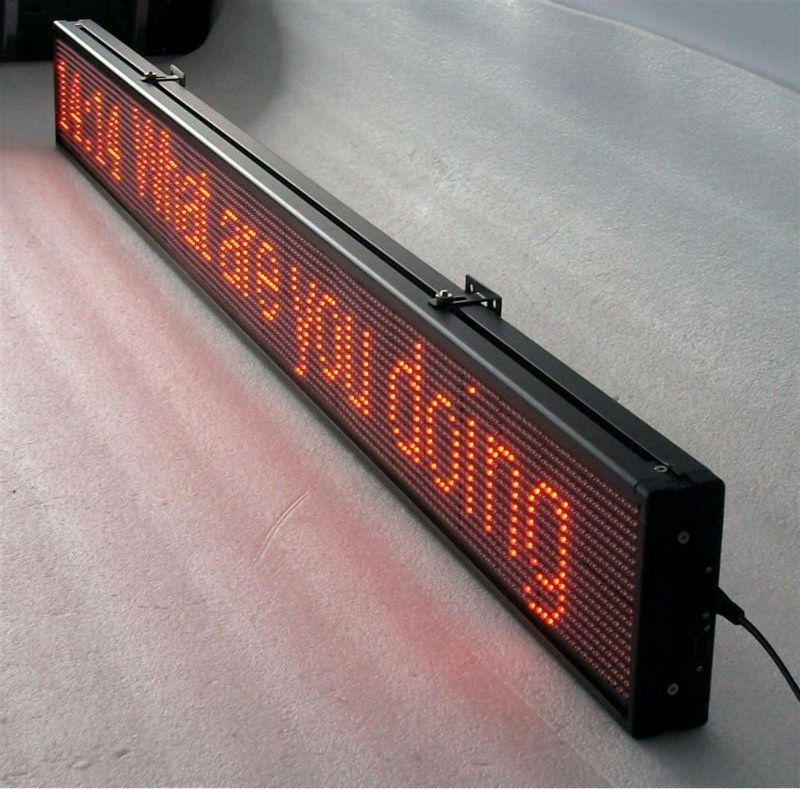

Programable scrolling led moving message sign single color P7.62 led display sign outdoor dot matrix Led display
♦.The led module display:
Dot matrix LED display screen is made of by many dot matrix modules, rather then modules or cabinets. The dot matrix modules have no fixed pixel composition or size, some are 5*7, some are 8*8 with different pixel pitch.
Whole LED display Parameter
|
Density |
17,222dots/m² |
|
Best viewing distanse |
4m-50m |
|
Display Capabilities |
Able to show text, graphics and animation |
|
Input Signal |
HDTV,NTSC, PAL, S-video, VGA |
|
Display Colors |
Red colors |
|
Processing/Color Depth |
14bit |
|
Brightness Control |
Manual Contorl (by PC); Automatic Control (by senor) |
|
Refresh Rate |
10Hz – 3000Hz (adjustable) |
|
Avpower Consumption |
1000 Watt / m² |
|
Lifetime of LEDs |
More than 100,000 Hours |
|
Input Voltage |
AC220V / 380V + 10% |
|
(three items and five lines |
|
|
Exchange frame speed |
60Hz |
|
Vertical Viewing Angle |
60° |
|
Horizontal Viewing Angle |
110° |
|
Way of Drive |
1/16 scan constant current |
|
Control mode |
To be synchronized with computer monitor |
|
Brightness |
>1200cd / m² ( adjustable ) |
|
Requirement of System environment |
- 20°C~ 60°C, 10% - 90%RH |
|
Communication Distance |
For 5 types of line(IBDN), no more than 150 meters; for fiber, no more than 5000 meters. |
Programable scrolling led moving message sign single color P7.62 led display sign outdoor dot matrix Led display aging
Dot matrix screen is commonly used as transparent curtain display screen, like LED strips lamps, net, mesh, gridding screen used for like: stage background, stage decorative lighting, screen wall of the room, pub, club and high-rise building. So it usually has low brightness and small screen size with small pixel pitch, so with high definition. And it has very easy installation with connection port on the side of each modules.
And it’s often single and double color screen display to show simple message and picture.
It can be used both indoor and outdoor with fixed installation or mobile usage.
LED Pixel parameter
|
Pixel Pitch |
Pixel Configuration |
|
7.62mm |
Dot-matrix (Red) |
-----------------------------------------------------------------------------------------------------------------------
Item: p7.62 dot matrix single color led display module
Size:488mmx244mm
Resolution:64x32
|
Payment terms |
30% deposit before production, 60% balance before shipping. -T/T -Paypal -Moneygram -Western Union -Alibaba Trade Assurance -Alibaba Secure Payment |
|
Shipping |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
|
After-Sales-Service |
-Lifetime with professional engineer support for free.
|
