Package Testing Equipment WVTR Water Vapor Transmission Rate

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: W301

Test method:: Gravimetric method

Standard:: ASTM E96

MOQ:: 1Set/pc

Payment:: TT/LC

Warranty:: 24 Months

Power supply:: AC 220V 50Hz

Test area:: 50.24cm2

Sample number:: 1 piece

Quick Details

Power:: Electronic

Place of Origin:: Guangdong, China

Brand Name:: GBPI

Model Number:: W301

Test method:: Gravimetric method

Standard:: ASTM E96

MOQ:: 1Set/pc

Payment:: TT/LC

Warranty:: 24 Months

Power supply:: AC 220V 50Hz

Test area:: 50.24cm2

Sample number:: 1 piece

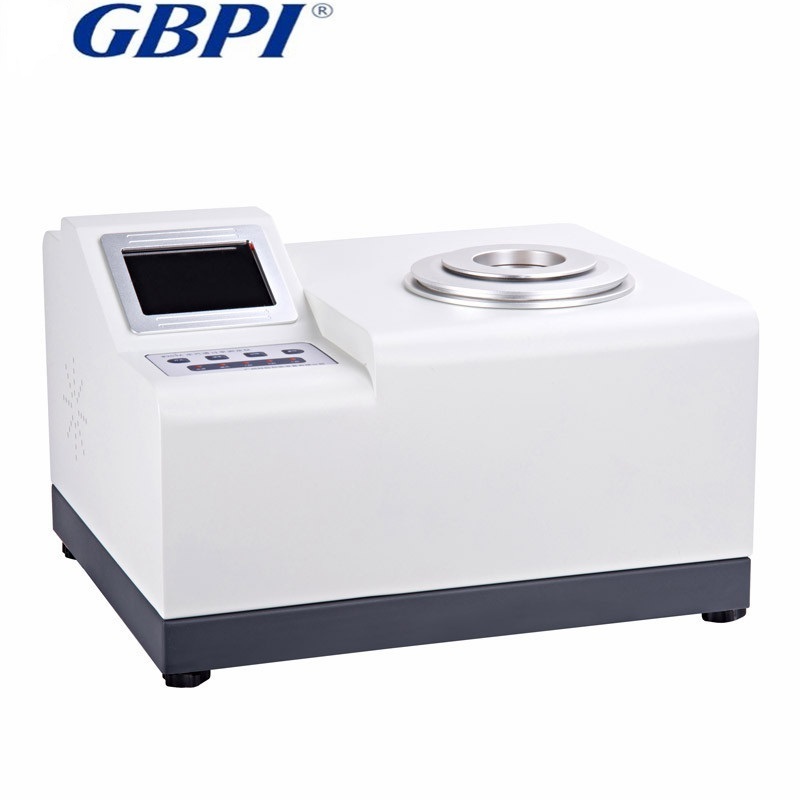

W301 Package Testing Equipment WVTR Water Vapor Transmission Rate

WVTR Water Vapor Transmission Rate

Standards

ASTM E96

Application :

* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP

* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon

*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers

Working principle

Gravimetric method. Fix the test sample in the middle of test chamber to separate the chamber into upper room and lower room; humid gas flows in upper room, and place desiccant device in lower room; as in lower room it remains dry (0-8%RH) by desiccant, water molecules penetrate through the sample from upper room into lower room, absorbed by desiccant; then the cup weight will increase; system weigh the increasing cup weight so as to calculate the water vapor transmission rate.

Techinical Parameter

Test range	0.01~10000 g/m ² ·24h
Test precision	0.001 g/m ² ·24h
Weight range	0.1mg~300g
Weight precision	0.1mg
Temperature range	15~55℃
Temperature precision	±0.1℃
Humidity range	30~90%RH, 100%RH
Humidity precision	±2%RH
Gas source	nitrogen, purity 99.999%
Gas port	Φ6mm gas pipe
Test area	50.24 cm ²
Sample size	Φ90 mm
Sample thickness	≤5mm
Product size	68×50×42cm

Features:

1, Three test chambers, with independent sensor, test data and test report; can test three different samples at the same time.
2,High precision sensor, continuous weighing and data acquisition.
3,Wholly automatic test, auto judgment, auto stop.
4,With software, control by computer.
5,Built-in operation system, Windows style interface, can test independently without computer.
6,True color LCD screen, real time display test data and working status; make setting and control by mouse operation and input values by soft keyboard, convenient to use.
7,Can adjust temperature; advanced electromagnetic temperature control technology, program controlled, automatic increase and decrease; integrated design, no external accessary installed; precision 0.1℃.
8,Can adjust humidity; use double gas flow method to control humidity, adjust the flow rates of 0%RH dry gas and 100%RH humid gas to form mixed humid gas of needed humidity; integrated design, no external accessary installed; precision 2%RH.
9,Self protection: sensor over range protection, auto save data when power cut off, wrong operation warning.
10,High test precision, can test high barrier material such as aluminum foil.
11,Excellent environmental suitability, not affected by environment temperature.
12,Can expand to up to 10 test chambers.
