Quick Details
-
Audio Encoding:
-
AAC(48K)
-
Video Resolution:
-
1920x1080,1280x720,960x540,848x480,640x360,480x270
-
Supported Internet:
-
3G/4G LTE/Wi-Fi
-
T-Flash Card:
-
128G
-
Battery Capacity:
-
4000mAh
-
Working Duration:
-
4-6 hours
Quick Details
-
Connector:
-
HDMI
-
Protocol:
-
H.264/H.265
-
Media Transmission Protocol:
-
RTMP/RTSP
-
Audio Encoding:
-
AAC(48K)
-
Video Resolution:
-
1920x1080,1280x720,960x540,848x480,640x360,480x270
-
Supported Internet:
-
3G/4G LTE/Wi-Fi
-
T-Flash Card:
-
128G
-
Battery Capacity:
-
4000mAh
-
Working Duration:
-
4-6 hours

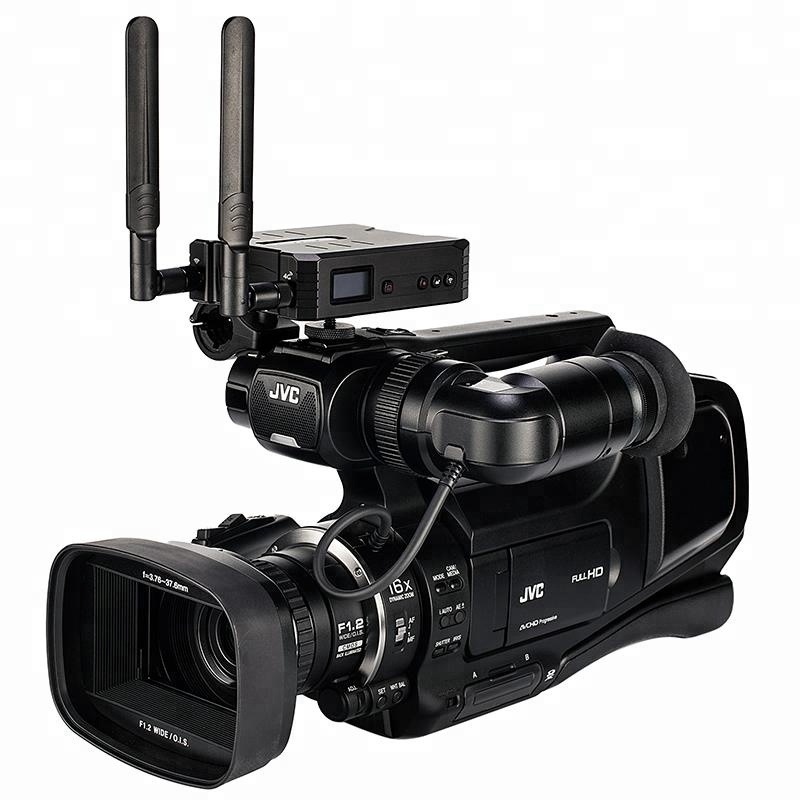

Mine Tech offers the smart telecaster range of solutions that include H264/H265 HEVC video transmission unit for streaming live video for outside broadcast, such as for live new gathering and live sports contribution. Mine-Q7 is a device that can be mounted on camcoders or cameras and can encode and stream over standard 3G, 4G LTE and Wi-Fi solution, with a very low latency.
It's Controlled by mobile APP, allow users to run Mine-Q7 with minimum training, hassle free.
Both Recording and Encoding Support 1080p Resolution
Built-in Battery
| Video | |
| Video Input | HDMI |
| Supported Video Resolution | 1080P/720P@24/25/30/50/60fps 1080i@50/60fps |
| Encoding Protocol | H.264 ( Encoding ) & H.265 ( Recording ) |
| Encoding Level | H.264/AVC High / Main / Baseline Profile |
| Stream Resolution | 1920x1080 1280*720 960*540 848*480 640*360 480*270 |
| Encoding Video FPS | 15-30FPS |
| Encoding Video Bitrate | adjustable |
| Bitrate control | VBR / CBR |
| TS Protocols |
RTMP |
| Audio | |
| Input | HDMI Audio or 1*3.5mm Mic |
| Sample Rates | 32kHz 44.1 kHz, 48.0 kHz |
| Encoding | AAC (48K) |
| Network | |
| SIM Slot | 4G TD-LTE / FDD-LTE (Modules are optional for different telecom operators) |
| Wi-Fi | 2.4G IEEE 802.11 a/b/g/n |
| WLAN | 100Base-T Ethernet interface |
| System | |
| Control Panel | iOS / Android APP |
| Firmware Update | supports |
| Remote management | supports |
| Working environment | |
| Operating temperature | -20 to 80 ℃ |
| Storage temperature | -40 to 90 ℃ |
| Humidity | 5% to 90% non-condenation |
| Dimension & Accessories | |
| Dimension | 122mm*94mm*31mm |
| Weight | 386g |
| Battery | 3.7V 4000mAh |
| Power adapter | DC 5V 2A |
