hook spinner hanger type shot blaster sandblaster blasting machine

hook spinner hanger type shot blaster sandblaster blasting machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $8600

≥2 Sets

US $7900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: Cusomized

Dimension(L*W*H):: Customer's Requirement

Type:: Shot Blasting Machine Equipment

Name:: hook spinner hanger type shot blaster sandblaster blasting machine

Function:: Metal Rust Surface Cleaning

Professional Design:: Good Service

Cleaning Material:: Steel Structure

Application:: Casting

Quick Details

Place of Origin:: Shandong, China

Brand Name:: XITIE

Weight (KG):: 7000 KG

Power:: Cusomized

Dimension(L*W*H):: Customer's Requirement

Type:: Shot Blasting Machine Equipment

Name:: hook spinner hanger type shot blaster sandblaster blasting machine

Function:: Metal Rust Surface Cleaning

Professional Design:: Good Service

Cleaning Material:: Steel Structure

Application:: Casting

Product Overview

hook spinner hanger type shot blaster sandblaster blasting machine

Q37 Series Hook Type Shot Blasting machine is for surface cleaning or strengthening treatment of small castings, forging parts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact. Spinner Double Hanger Hook Type Shot Blasting Machine is blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces. Bigger work pieces can be put on hanger hook uniquely. Smaller work pieces will be put on special tooling and then put on hinger hooks. After loading work pieces, hanger hooks will be driven into blasting chamber along T or Y overhead rails. Work pieces are rotating in blasting chamber to get steel shot impact from blasting wheels mounted on one side chamber wall. The other side of chamber wall is called hot area because it get strong abrasive flow. Hot area is protected by Mn alloy liners. After 3-5 min blast cleaning, work pieces will go out along T or Y overhead rails.

FEATURES AT A GLANCE

SURFACE CLEANING

STRENGTHENING TREATMENT OF SMALL CASTINGS

FORGING PARTS IN INDUSTRY OF FOUNDRY

PRODUCT SPECIFICATIONS

Item	Unit	Q376	Q376B	Q378C	Q3710	Q3720	Q3730	Q3750
Maximum weight of cleaning	kg	500	600	1000800	1000	2000	3000	5000
Abrasive flow rate	kg/min	2*200	2*200	2*250	2*250	3*250	3*250	4*250
Ventilation on capacity	m³/h	5000	5000	5000	5000	9000	11000	14000
Lifting amount of elevating conveyor	t/h	24	24	30	30	45	45	60
Separating amount of separator	t/h	24	24	30	30	45	45	60
Max overall dimensions of suspender	mm	600* 1200	700* 1200	1000* 1600	1200* 1800	1400* 2200	1600* 2300	1800* 2500

Products Description

Spinner Hanger Hook System
Spinner Hanger Hook : To hang work pieces or tooling

Driving Motor: To drive spinner hanger hooks to rotate&move along rails into or out.
Overhead Rails: T shaped is for one hook and Y shaped is for two hooks
Rotating & Blasting Time: 3-5 minutes according to different work pieces

Blasting Chamber

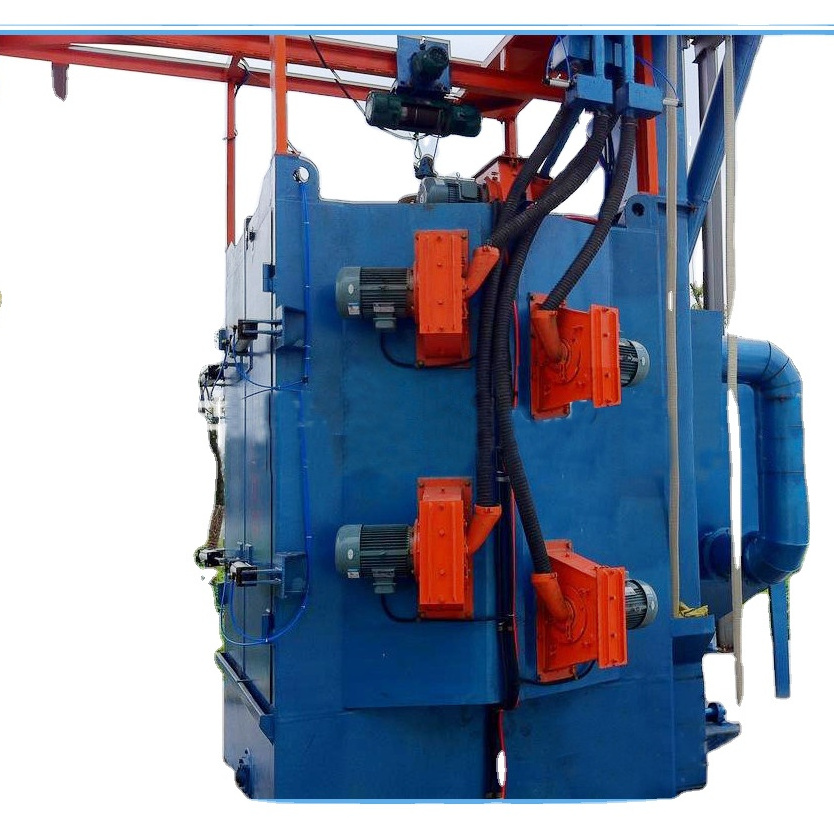

Blasting Wheels: Mounted on left side wall of blasting chamber. Angle will be customized according to work pieces.
Hot Area: Right inside of blasting chamber is called hot area protected by Mn alloy liners.
Doors: Manual or pneumatic type are available.
