Quick Details
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Steel
-
Brand Name:
-
COUP-LINK
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Steel Coupling Curved Jaw
-
Type:
-
Keyway
-
Surface Treatment:
-
Black Oxide
-
Outer Diameter:
-
80mm - 135mm
-
d1/d2 Max. Bore:
-
45mm - 70mm
-
d1/d2 Min. Bore:
-
30mm - 45mm
-
Overall Length:
-
114mm - 185mm
-
Max. Speed:
-
4600rpm- 2600rpm
-
Certificate:
-
ROHS ISO9001:2015
-
Samples:
-
Available
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Other
-
Structure:
-
Jaw / Spider
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Steel
-
Brand Name:
-
COUP-LINK
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Steel Coupling Curved Jaw
-
Type:
-
Keyway
-
Surface Treatment:
-
Black Oxide
-
Outer Diameter:
-
80mm - 135mm
-
d1/d2 Max. Bore:
-
45mm - 70mm
-
d1/d2 Min. Bore:
-
30mm - 45mm
-
Overall Length:
-
114mm - 185mm
-
Max. Speed:
-
4600rpm- 2600rpm
-
Certificate:
-
ROHS ISO9001:2015
-
Samples:
-
Available

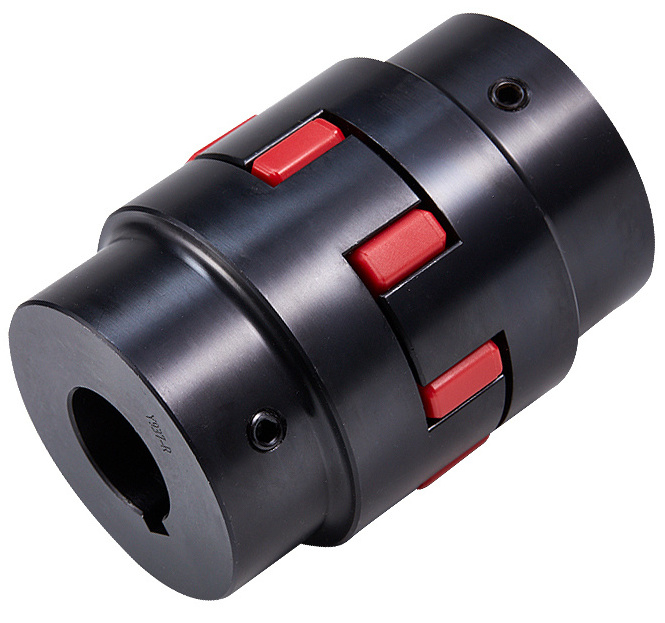

Keyed rubber star similar GR rotex electric motor pump coupling
|
Brand
|
Coup-link
|
|
Custom
|
Support
|
|
Components
|
Hubs: Steel, black oxidation
|
|
|
Spider: PU (4 hardness types are available, color red as standard)
|
|
Application
|
machine tool，monitor retractor, vacuum pump, lifting jack, entrance/exit gate, textile machinery, pump, hydraulic equipment, xy stage, transport device, index table, injection molding machine, tube production machine, test stand.
|
|
Features
|
Absorb vibration and adjust misalignment of parallel, angular and axial.
Support high torque transmission.
Zero backlash.
Spider supports 4 types of hardness, and red spider is the standard type.
Keyway type (Spline is available per requirements).
|
|
Packaging
|
Carton + wooden case
2 Pcs 18×12×10cm
10 Pcs 30×15×12cm
|
