Quick Details
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
hoyongtrd
-
Dimension(L*W*H):
-
1640*1670*1920
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5

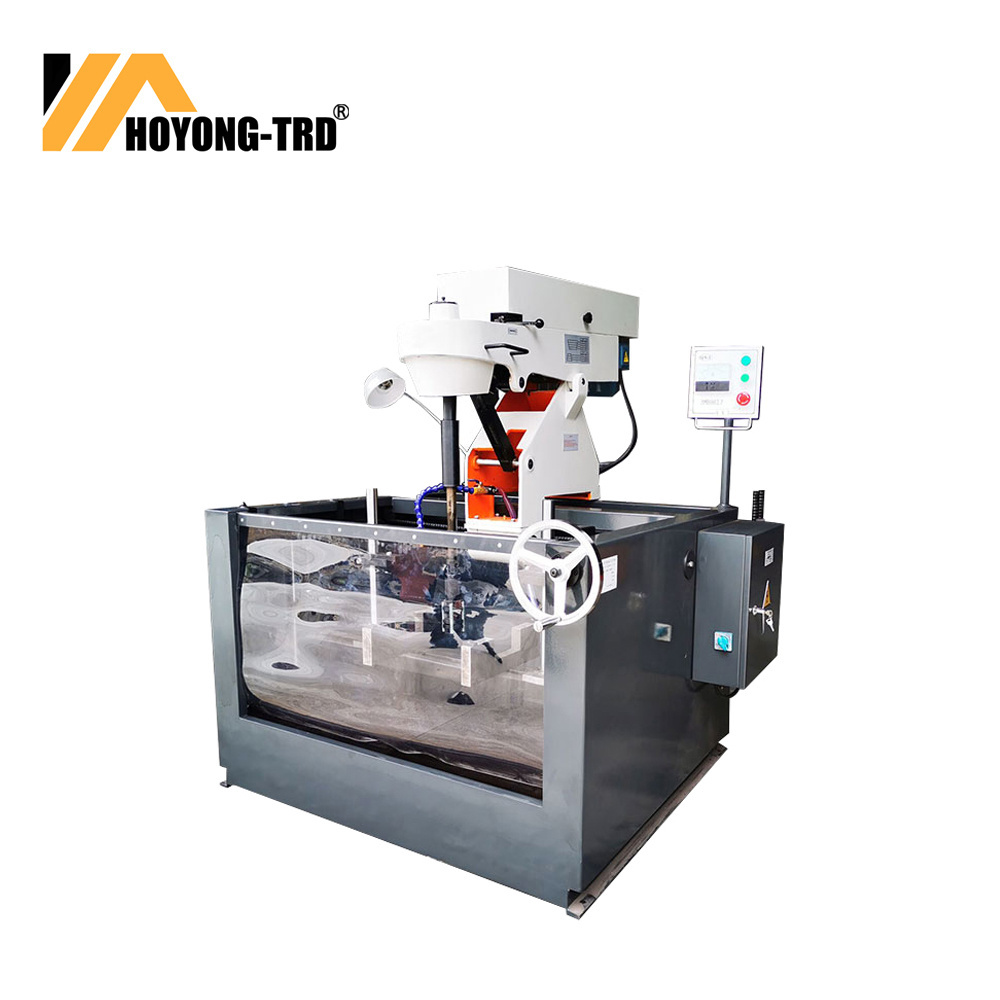

Vertical Cylinder Honing Machine 3MB9817
Features
3MB9817 vertical honing machine is mainly used for honing single line engine cylinders and
V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.3. Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.
|
Model
|
portable boring machine and honing machine sbm100 for repair motorcycle cylinder
|
|
|
Max diameter of hole honed
|
Φ25-Φ170 mm
|
|
|
Max depth of hole honed
|
320 mm
|
|
|
Spindle speed (4 steps)
|
120, 160, 225,290 mm
|
|
|
Stork (3 steps)
|
35, 44, 65 s/min
|
|
|
Power of main motor
|
1.5 Kw
|
|
|
Power of cooling pump motor
|
0.125 Kw
|
|
|
Machine working inside cavity dimensions (L×W)
|
1400×870 mm
|
|
|
Overall dimensions (L×W× H)
|
1640×1670×1920 mm
|
|
|
Packing dimensions (L×W×H)
|
1850×1850×2150 mm
|
|
|
N.W./G.W.
|
1000/1200 kg
|
|
