Quick Details
-
Output:
-
48V/20A, 36V/20A, 48V/25A, 60V/20A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Depower
-
Model Number:
-
PBCD-1000 Series
-
Input:
-
90~264VAC/20A
-
Warranty:
-
2 YEARS
-
Application:
-
Electric forklift/ship Lifting platform/Sweeper Lawn mower/golf cart
-
Operating temperature:
-
-20~50℃
-
Input voltage range:
-
90~264VAC
-
Full charge votlage:
-
54.6V & 57.6V& 56.4V
-
Output current:
-
20A/25A/30A
-
Miaximum Effiency:
-
94%
-
Weight:
-
3KG
-
Size:
-
289 *158 *82MM
-
Certification:
-
ce
Quick Details
-
Type:
-
Plug-In Charger
-
Use:
-
electric car, Golf Cart Charging, Electric forklift charging, Sweeper charging
-
Is LED Lamp Illumination:
-
NO
-
Output:
-
48V/20A, 36V/20A, 48V/25A, 60V/20A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Depower
-
Model Number:
-
PBCD-1000 Series
-
Input:
-
90~264VAC/20A
-
Warranty:
-
2 YEARS
-
Application:
-
Electric forklift/ship Lifting platform/Sweeper Lawn mower/golf cart
-
Operating temperature:
-
-20~50℃
-
Input voltage range:
-
90~264VAC
-
Full charge votlage:
-
54.6V & 57.6V& 56.4V
-
Output current:
-
20A/25A/30A
-
Miaximum Effiency:
-
94%
-
Weight:
-
3KG
-
Size:
-
289 *158 *82MM
-
Certification:
-
ce
Technical Specification
Battery Charger Specification
|
Battery type
|
|
LiFePO4 in 15 Series/LiFePO4 in 16 Series/NMC in 13 series
|
|
|
|||
|
Model name
|
|
PWCD-1000-540-20
|
PWCD-1300-540-25
|
PWCD-1600-540-30
|
|||
|
|
|
PWCD-1000-576-20
|
PWCD-1300-576-25
|
PWCD-1600-576-30
|
|||
|
|
|
PWCD-1000-546-20
|
PWCD-1300-546-25
|
PWCD-1600-546-30
|
|||
|
Input
|
Voltage range
|
90～264VAC
|
|
|
|||
|
|
Frequency range
|
45～65Hz
|
|
|
|||
|
|
Input current(Typ.)
|
5A
|
6.5A
|
8A
|
|||
|
|
Max. Efficiency(Typ.)
|
94%
|
|
|
|||
|
|
Leakage current
|
<0.5mA/220VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)
|
|
|
|||
|
Output
|
Charging phase
|
Pre-charge + constant current + constant voltage
|
|
|
|||
|
|
Max. output power
|
1000W@220VAC 500W@110VAC
|
1300@220VAC 650W@110VAC
|
1600W@220VAC 800W@110VAC
|
|||
|
|
Max. output current
|
20A@220VAC 10A@110VAC
|
25A@220VAC 12.5A@110VAC
|
30A@220VAC 15A@110VAC
|
|||
|
|
Constant voltage
|
54.0V(LiFePO4 in 15 Series)/ 57.6V(LiFePO4 in 16 Series)/ 54.6V(NMC in 13 series)
|
|
|
|||
|
Protection
|
Short circuit
|
Yes
|
|
|
|||
|
|
Over temperature
|
Yes
|
|
|
|||
|
Environment
|
Waterproof
|
IP65
|
|
|
|||
|
|
Working Temp.
|
–20～50℃
|
|
|
|||
|
SAFETY & EMC
|
Safety standards
|
EN60335, GB/T4706
|
|
|
|||
|
|
Isolation resistance
|
I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC/25℃/70%RH
|
|
|
|||
|
|
EMC emission
|
EN55022 Class A, GB/T 9254 Class A
|
|
|
|||

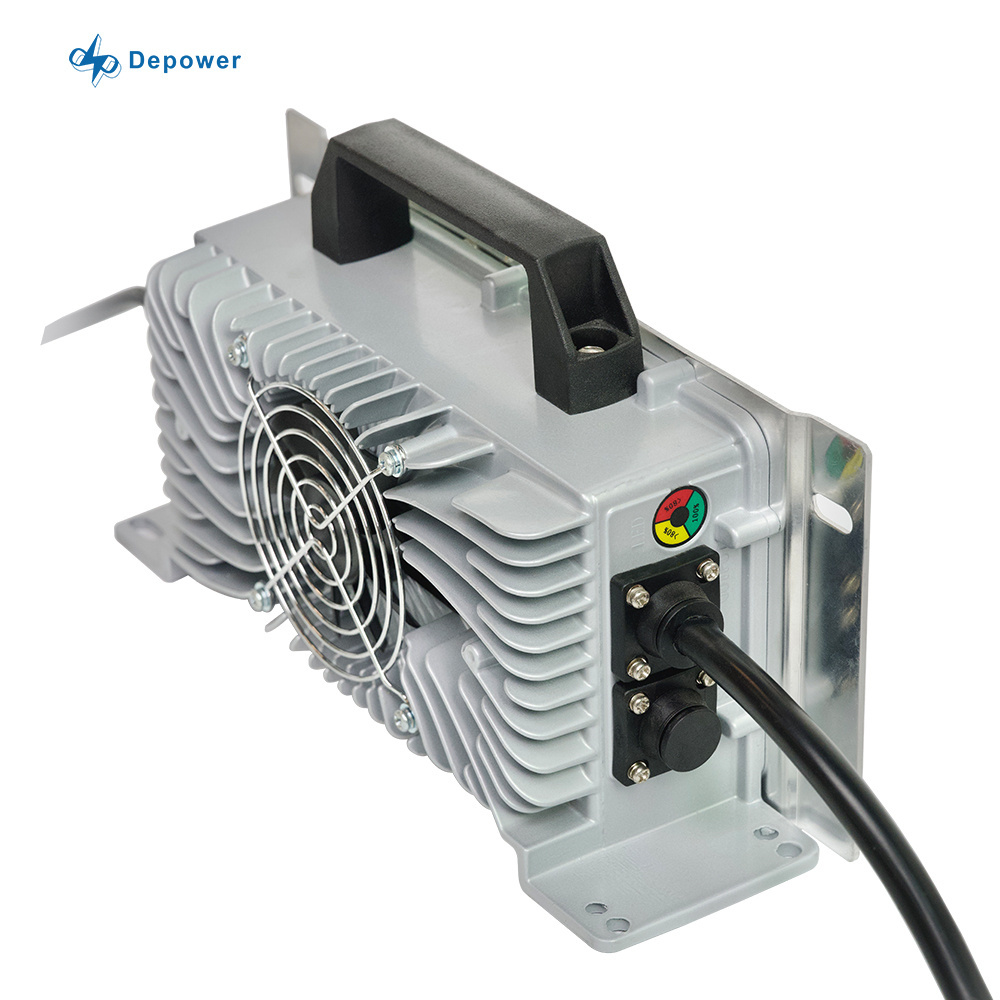

Product Feature- PWCD Series battery charger 54.0V/ 57.6V/ 54.6V
1.
Use internationally well-known semiconductor devices,such as IR, TI, ST, ON and so on
2.
Charging conversion efficiency is up to 94%
3. Support lithium and lead-acid battery
4. Short circuit/ Over voltage/ Over temperature protection
3. Support lithium and lead-acid battery
4. Short circuit/ Over voltage/ Over temperature protection
waterproof 36v 48v 60v 72v 20a 25a 30a Battery Charger for Club Car and Golf Cart Lithium Lead Acid Battery Chargers
FAQ
1. Who are we?
We are a battery charger and solar charge controller manufacturer with more than 10 years experiences. Our products sell to all over the world market. There are total about 150-200 people in our office.
2. What is the delivery way for the package?
For sample orders, we usually ship the goods by express like DHL, FedEx, and UPS. The shipping time is 5-7 days normally. For bunch orders weighing more than 200kg, we will choose the shipping way by sea, special line, or Express according to your needs. The shipping time by sea is 20-30 days.
3. Can you do DDP service of the shipment?
We could provide DDP service according to the shipping way you choose. And we always consider the most economic way for our customers.
4. How to proceed an order?
We are a battery charger and solar charge controller manufacturer with more than 10 years experiences. Our products sell to all over the world market. There are total about 150-200 people in our office.
2. What is the delivery way for the package?
For sample orders, we usually ship the goods by express like DHL, FedEx, and UPS. The shipping time is 5-7 days normally. For bunch orders weighing more than 200kg, we will choose the shipping way by sea, special line, or Express according to your needs. The shipping time by sea is 20-30 days.
3. Can you do DDP service of the shipment?
We could provide DDP service according to the shipping way you choose. And we always consider the most economic way for our customers.
4. How to proceed an order?
First, we need to know your battery type and series, battery nominal voltage , battery full charged voltage, battery capacity. Second about the batteries. According to your battery capacity, we will recommend you the current matching your battery. For example, your battery capacity is 100AH, we will recommend 20A or 25A for you, and the time required to fully charge the battery is 5 hours and 4 hours respectively. Then we will suggest the most suitable charger for your reference.Then, base on the chargers you choose and your address, we will provide you a quotation for total cost. Finally, we will draft your order on Alibaba or send you our bank account number as you required.
5. What is the operating & storage temperature range for this charger?
The operating temperature -20℃ ~ 50℃, storage temperature -40℃ ~ 80℃.
6. Can you also do OEM or ODM products for customers?
Yes, we could do OEM and ODM services for our customers around the world. You could forward your details demands to us via email, Whats@App, or We@Chat.
7. Do you offer guarantee for the products? If could, how long the warranty period can you offer？
We offer two years warranty to our products.
8. Are you a manufacturer/factory or trade company?
We are a superior battery charger manufacture with over 10 year's experience. All chargers produced by our factory.
9. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and UKCA certification for all of our battery charger. And we could support other certifications after
discussed the detail information.
10. How do you guarantee the quality of battery charger?
The battery charger workshop strictly follows the ISO9001 system. Each of our processes has to undergo strict quality audits, our chargers are fully filled with glue instead of half filled and 100% aging test before packing.
5. What is the operating & storage temperature range for this charger?
The operating temperature -20℃ ~ 50℃, storage temperature -40℃ ~ 80℃.
6. Can you also do OEM or ODM products for customers?
Yes, we could do OEM and ODM services for our customers around the world. You could forward your details demands to us via email, Whats@App, or We@Chat.
7. Do you offer guarantee for the products? If could, how long the warranty period can you offer？
We offer two years warranty to our products.
8. Are you a manufacturer/factory or trade company?
We are a superior battery charger manufacture with over 10 year's experience. All chargers produced by our factory.
9. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and UKCA certification for all of our battery charger. And we could support other certifications after
discussed the detail information.
10. How do you guarantee the quality of battery charger?
The battery charger workshop strictly follows the ISO9001 system. Each of our processes has to undergo strict quality audits, our chargers are fully filled with glue instead of half filled and 100% aging test before packing.
