Quick Details
-
Weight:
-
9000 KG
-
Product name:
-
Widely Used Portable Water Well Drilling Rigs for Sale
-
Drilling depth:
-
300m
-
Drilling diameter:
-
140-325mm
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Working pressure(mpa):
-
1.7-3.0MPa
-
Lifting power:
-
24T
-
Rotation Speed:
-
40-70r/min
-
Engine Power:
-
85Kw/2200rpm
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Unique
-
Dimension(L*W*H):
-
5900x2000x2850mm
-
Weight:
-
9000 KG
-
Product name:
-
Widely Used Portable Water Well Drilling Rigs for Sale
-
Drilling depth:
-
300m
-
Drilling diameter:
-
140-325mm
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Working pressure(mpa):
-
1.7-3.0MPa
-
Lifting power:
-
24T
-
Rotation Speed:
-
40-70r/min
-
Engine Power:
-
85Kw/2200rpm
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
ISO

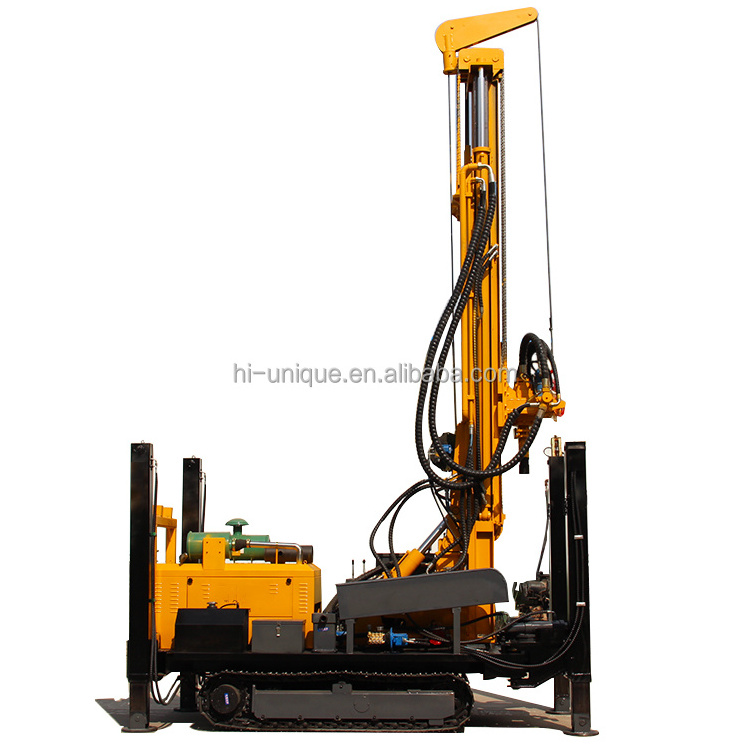

Widely Used Portable Water Well Drilling Rigs for Sale
1. The drilling rig makes the overall power loss small and the drilling cost low. 200m 300m 400m 500m 600m depth Truck crawler portable compressor water well drilling rig
2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.
3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents.
4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical
power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.
5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.
6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
7. The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation.
8. The drill rig reserves some functional interfaces in the hydraulic system, and can expand the functions according to the technological requirements of different users.
Technical Parameters
|
Drilling Depth |
300m |
|
Dia.hole |
φ140-325mm |
|
Advance Length one time |
6.6m |
|
Working pressure |
1.7-3.0MPa |
|
Air consumption |
17-35m³/min |
|
Length of rod |
1.5m,2m,3m,6m |
|
Dia. Of rod |
φ76, φ89,φ102,φ114 |
|
Lifting power |
24T |
|
Rotation torque |
8500-11000N.m |
|
Rotation Speed |
40-70r/min |
|
Diesel Engine |
Yuchai |
|
Engine Power |
85Kw/2200rpm |
|
Travelling speed |
0-2.5 Km/h |
|
Climb capacity |
30° |
|
Weight |
9000kgs |
|
Dimension |
5900x2000x2850mm |
|
Application |
Complicated geological conditions:Rock,Mud,Sand etc. |
|
Drilling Way |
Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
|
Dth Hammer |
4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
