FRP Spraying Machine Glass Fiber Cement Sprayer Resin Spray Gun System Fiberglass Chopper Gun

FRP Spraying Machine Glass Fiber Cement Sprayer Resin Spray Gun System Fiberglass Chopper Gun

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3970

≥5 Pieces

US $3950

≥20 Pieces

US $3900

≥100 Pieces

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: No electric

Dimension(L*W*H):: 82*82*100cm

Power (kW):: 10

Weight (KG):: 110 KG

Application:: Spray Wall

Product Name:: Fiberglass Resin Spray Machine

Keywords:: Foam Machiney

Model:: Mingko-ZJ

Feature:: Stable

Resin spray flow rate:: 2.5-8L/MIN

Pattern Width:: 200 to 500 mm

Air inlet:: 16MM

Fluid inlet:: 3/8"

Hose Assembly:: 15m

Marketing Type:: New Product 2022

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Mingko

Machine Type:: High pressure spray machine

Voltage:: No electric

Dimension(L*W*H):: 82*82*100cm

Power (kW):: 10

Weight (KG):: 110 KG

Application:: Spray Wall

Product Name:: Fiberglass Resin Spray Machine

Keywords:: Foam Machiney

Model:: Mingko-ZJ

Feature:: Stable

Resin spray flow rate:: 2.5-8L/MIN

Pattern Width:: 200 to 500 mm

Air inlet:: 16MM

Fluid inlet:: 3/8"

Hose Assembly:: 15m

Marketing Type:: New Product 2022

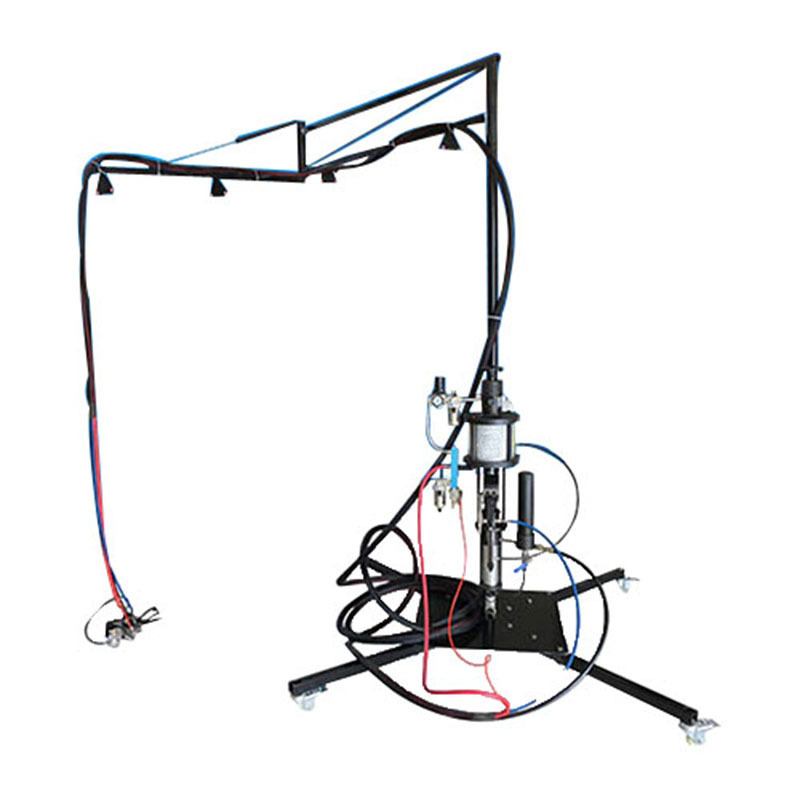

fiberglass chopper resin spray machine with gun

Hightop fibreglass chop equipment for FRPs (fibre-reinforced plastics) is engineered with exclusive technological advancements to provide unmatched durability and ease of use. Unique spray control technology delivers a superior mix of resin and fibreglass chop strands for material efficiency and better working environments. Operators can maximise production capacity with a simple user interface and tool-free catalyst adjustments.

fiberglass spray machine

Standard Nozzle: 1.4 mm 2.5L-6L/min spray resin .

Operating Pressure: 45 to 60 PSI (3.0 to 4.0 bar)

Pattern Width: (200 to 500 mm)
Air Consumption: Above 23cfm .

Heavy Duty Pressure Feed Paint Tank Specifications: Clamp on Lid with Gasket Fluid pressure
regulator with gauge Paint Tank Operating Pressure: Optimal 25-30 PSI

Hose Assembly: 15 meters

Hoses Air inlet: 16mm

Fluid inlet:3/8"

Choose Another Model

Mingko-ZZ

Mingko-CZ

Mingko-ZJ

Product Parameters

Product Name	Product Name
Model	Mingko-ZJ
Dimension(LWH)	8282100cm
Weight (KG)	110KG
Operating Pressure	45 to 60 PSI
Resin spray flow rate	2.5-8L/MIN
Air Consumption	23CFM
Pattern Width	200 to 500 mm
Air inlet	16MM
Fluid inlet	3/8"
Hose Assembly	15M
Standard Nozzle	1.4MM
