Quick Details
-
Brand Name:
-
Copeland
-
Model:
-
ZP91KCE-TFD-422
-
Norminal Power (HP):
-
7.5
-
capacity(w):
-
21800
-
Refrigerant:
-
R410a
-
power(w):
-
6950
-
EER(Btu/Wh):
-
10.7
-
Voltage:
-
380-420V/50Hz; 460V/60Hz; 3Ph
Quick Details
-
Type:
-
Refrigeration Compressor
-
Application:
-
Refrigeration Parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Copeland
-
Model:
-
ZP91KCE-TFD-422
-
Norminal Power (HP):
-
7.5
-
capacity(w):
-
21800
-
Refrigerant:
-
R410a
-
power(w):
-
6950
-
EER(Btu/Wh):
-
10.7
-
Voltage:
-
380-420V/50Hz; 460V/60Hz; 3Ph

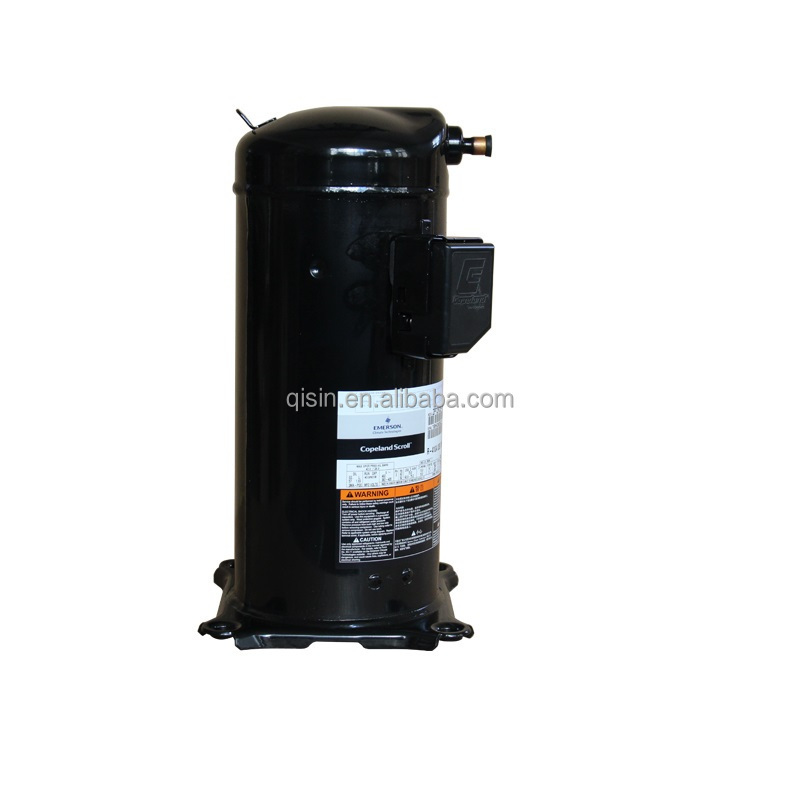

Product Description
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers
the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection
available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
Features for Copeland Scroll 2–7 HP:
(1) Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise,
and compact frame;
(2) Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
(3) Allows for the best overall applied cost for high-efficiency systems.
Features for Copeland Scroll 7–15 HP:
(1)Designed for superior R-410A efficiency and performance
(2)Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
(3)Light, compact design with smaller suction fittings for applied cost saving
(4)R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)
Features for Copeland Scroll 20–40 HP:
(1)R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
(2)Optimized for large rooftop and chiller applications
(3)Designed to provide highest R-410A efficiency in this capacity range
(4)Qualified for use in trio applications
the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection
available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
Features for Copeland Scroll 2–7 HP:
(1) Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise,
and compact frame;
(2) Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
(3) Allows for the best overall applied cost for high-efficiency systems.
Features for Copeland Scroll 7–15 HP:
(1)Designed for superior R-410A efficiency and performance
(2)Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
(3)Light, compact design with smaller suction fittings for applied cost saving
(4)R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)
Features for Copeland Scroll 20–40 HP:
(1)R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
(2)Optimized for large rooftop and chiller applications
(3)Designed to provide highest R-410A efficiency in this capacity range
(4)Qualified for use in trio applications
|
Model
|
ZP91KCE-TFD-422
|
|
Refrigerant
|
R410a
|
|
Voltage
|
380-420V,50Hz, 460V,60Hz, 3Ph
|
|
Norminal Power
|
7.5HP
|
