Quick Details
-
Power Source:
-
None
-
Specification:
-
2-5 Pieces
-
Pest Type:
-
Bed Bugs, Cockroaches, Flies, Mice, MOSQUITOES
-
Use:
-
Pest control
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KS
-
Model Number:
-
KSF33
-
Packing:
-
Machine packed in wooden case
-
Item:
-
cockroach glue trap making machine
-
Pest Control Type:
-
fly insect mouse coakroach
-
size adjust:
-
Computer control
-
total power of the equipment:
-
16KW
-
Keywords:
-
cockroach glue trap making machine
-
traps design:
-
with release paper pasting
-
Inner diameter of release paper:
-
700mm 400mm 500mm
-
Production speed:
-
80 pcs per min
-
Glue amount:
-
Can be adjusted
-
product name:
-
cockroach glue trap making machine
Quick Details
-
Applicable Area:
-
>800 ㎡
-
Time Used:
-
>480 Hours
-
Product:
-
Sticky Type Sticky Type Mosquito-killing Lamp
-
Power Source:
-
None
-
Specification:
-
2-5 Pieces
-
Pest Type:
-
Bed Bugs, Cockroaches, Flies, Mice, MOSQUITOES
-
Use:
-
Pest control
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KS
-
Model Number:
-
KSF33
-
Packing:
-
Machine packed in wooden case
-
Item:
-
cockroach glue trap making machine
-
Pest Control Type:
-
fly insect mouse coakroach
-
size adjust:
-
Computer control
-
total power of the equipment:
-
16KW
-
Keywords:
-
cockroach glue trap making machine
-
traps design:
-
with release paper pasting
-
Inner diameter of release paper:
-
700mm 400mm 500mm
-
Production speed:
-
80 pcs per min
-
Glue amount:
-
Can be adjusted
-
product name:
-
cockroach glue trap making machine

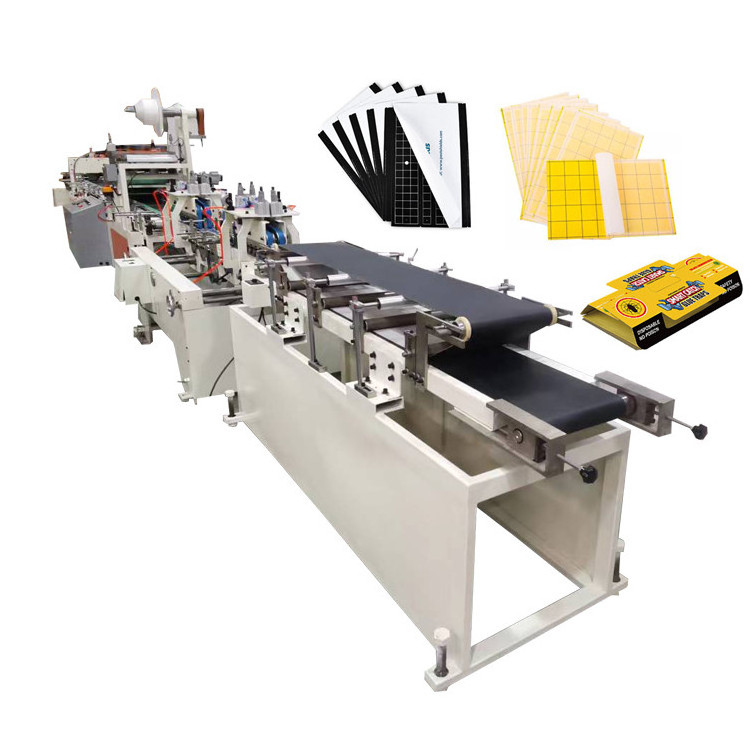

Automatic cockroach glue trap making machine hot melt glue coating machine for indoor fruit fly trap glue boards
Finished glue traps can be made by this machine as follows
Insect glue boards machine main information
Insect glue boards machine brief introduction
The automatic sticking release paper equipment produced by our company is a special equipment for producing sheet glue and automatic lamination of release paper. This equipment can produce cockroach board, sticky insect board, white card sticky mouse board and other products that need to be glued and then laminated with release paper. The whole set of equipment is controlled by servo motor and PLC. It is an equipment with simple operation, high speed and high efficiency, and precise control.
Auto release paper glue trap machine working principle
The whole stack of sheets is sent out by the paper feeder, glued by the glue gun, and then reaches the release paper wheel after running forward and self-cooling. When the laminating part detects the cardboard, the release paper pressure wheel will send out the required length of the release paper, and the cutter wheel will cut the release paper, and at the same time, the release paper will be laminated with the cardboard. The laminated products are transported out through the production line conveyor belt.
If you are making cockroach house products, you can also add a folding and compacting line. After the product is glued and laminated, the product is transported to the hemming line through the turntable for the hemming process, and then enters the compacting line for compaction, and then Conveyed by the production line conveyor belt.
|
maximum unwinding diameter of release paper
|
700 mm
|
|
Inner diameter of paper core
|
Φ 76 mm
|
|
Effective maximum glue width
|
230 mm (reservation is required for ultra-wide products)
|
|
Gluing uniformity
|
± 3%
|
|
Glue weight range
|
20~500 g/㎡
|
|
Bonding length of release paper
|
less than 400 mm or less than 600 mm
|
|
Air pressure source
|
6~8 kgf/cm²
|
|
Power supply for equipment
|
AC380V
|
our company specialized in pests equipment for14 years.High speed machine for fly stick paper and mouse soft board
New model 2023 11th generation high speed machine for sticky fly paper and sticky rat soft board
