Quick Details
-
Encoding Format:
-
MPEG-4 AVC/H.264
-
Input:
-
HD-MI,ASI, IP
-
Input Resolution:
-
1920x1080P,1920x1080i,1280x720P,720x576i,720x480i
-
Output:
-
IP, ASI
-
Output Resolution:
-
1920x1080,1280x720,720x576,720x480
-
Rate Mode:
-
VBR and CBR
-
Protocol:
-
UDP, RTP
-
Management:
-
Web-based NMS
-
Power Supply:
-
Redundant dual power supply
-
Application:
-
digital TV
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yukuan
-
Model Number:
-
YUK800-2
-
Encoding Format:
-
MPEG-4 AVC/H.264
-
Input:
-
HD-MI,ASI, IP
-
Input Resolution:
-
1920x1080P,1920x1080i,1280x720P,720x576i,720x480i
-
Output:
-
IP, ASI
-
Output Resolution:
-
1920x1080,1280x720,720x576,720x480
-
Rate Mode:
-
VBR and CBR
-
Protocol:
-
UDP, RTP
-
Management:
-
Web-based NMS
-
Power Supply:
-
Redundant dual power supply
-
Application:
-
digital TV

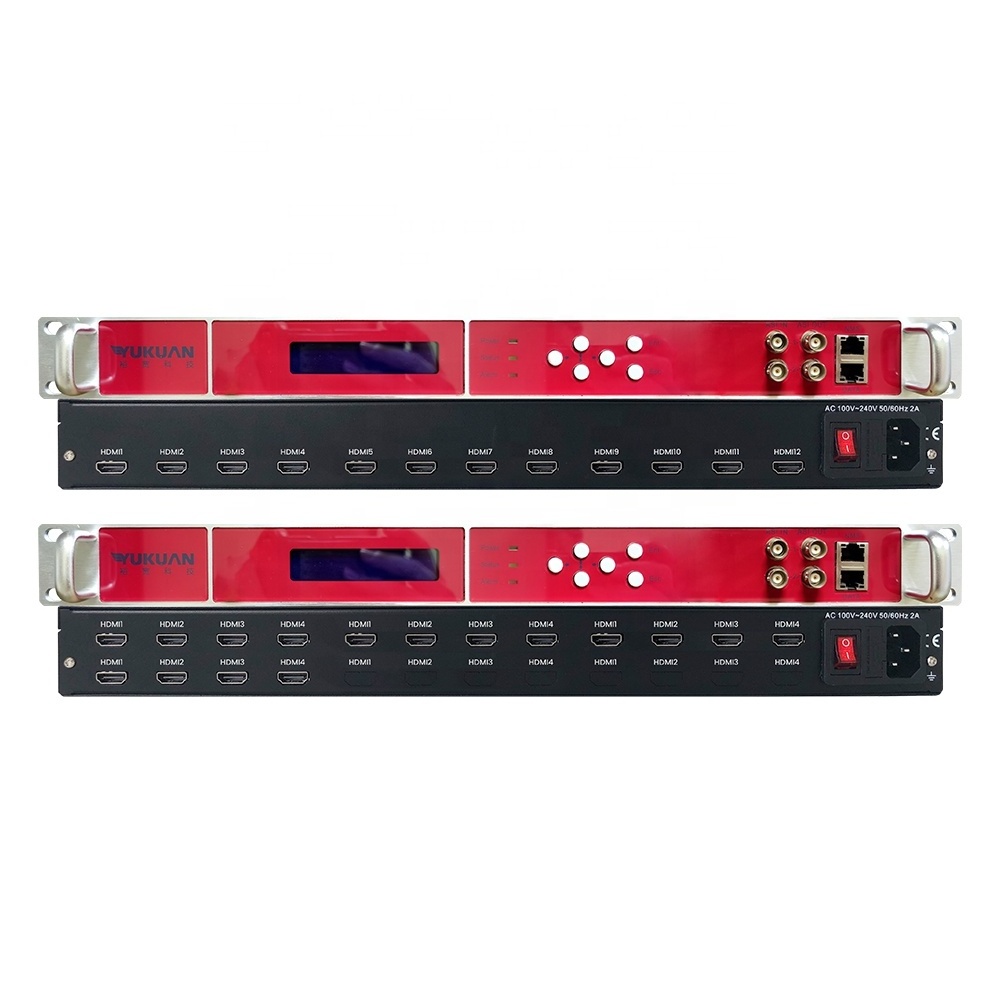

YUK800-2
Manufacturer Price Broadcast Grade 4 to 16 channels IPTV H.264 MPEG4 HD-MI Encoder
Manufacturer Price Broadcast Grade 4 to 16 channels IPTV H.264 MPEG4 HD-MI Encoder
Product Overview
YUK800-2 series is the latest cost-effective HD MPEG-4 AVC/H.264 encoder. It supports 4 / 8 / 12 / 16 / 20 / 24 channel HDMI input, 1 channel IP output, 8 MPTS output, 504 SPTS output. With high integration, great performance and low cost, it integrated a complete headend system function. The device is widely used in digital TV transmission systems such as hotels, clubs, hospitals etc.
Product Feature
*Support 4 / 8 / 12 / 16 / 20 / 24 channel HDMI input, 3 channel IP input
*Support 1 channel IP output, 8 MPTS output, 504 SPTS output, UDP/RTP protocol (multicast)
*Support 2 ASI input, 2 ASI independent output
*Support MPEG-4 AVC H.264 encoding
*Support OSD insertion
*Support QR code, LOGO, caption insertion
*Support ”Null PKT Filter” function
*Support LCD display and button operation
*Support web network management
*Support online upgrade
Specification
|
Input
|
|
|
|
4/8/12/16/20/24 channel HDMI input
|
|
|
|
2 channel ASI input
|
|
|
|
3 channel IP input
|
|
|
|
Output
|
|
|
|
2 channel ASI independent output
|
|
|
|
1 channel Gigabit IP, 8 MPTS output, 504 SPTS output, UDP/RTP protocol (multicast)
|
|
|
|
Video Encoding
|
|
|
|
Encode Format
|
MPEG-4 AVC/H.264
|
|
|
Rate Mode
|
VBR, CBR
|
|
|
Input
|
HDMI
|
|
|
Input Resolution
|
1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i@50/59.94Hz |
|
|
Output Resolution
|
1920×1080_25P_30P_50P_60P
1280×720_25P_30P_50P_60P 720×576_25P,720x480_30P |
|
|
Audio Encoding
|
|
|
|
Code Rate
|
1Mbps~13Mbps（each channel)
|
|
|
Rate Mode
|
CBR
|
|
|
Encode Format
|
MPEG1 Layer II, LC AAC, HE AAC, HE AAC+
|
|
|
Sample Rate
|
44.1KHz,48KHz
|
|
|
Bit Rate
|
32kbps, 48kbps,64kbps ,128Kbps,192kbps,256kbps,320kbps, 384kbps
|
|
|
General
|
|
|
|
Power
|
AC100~240V，50/60Hz
|
|
|
Power Consumption
|
<90W
|
|
|
Temperature Range
|
0~45℃(operation), -20~80℃(storage)
|
|
|
Dimension
|
482mm×410mm×44mm
|
|
|
Weight
|
4-8kg(4-ch to 24-ch)
|
|
