Quick Details
-
Brand Name:
-
CN AISO
-
Model Number:
-
ASQ-250/4P
-
Rated Current:
-
250A
-
Frame current:
-
250
-
Product:
-
Automatic Transfer Switches
-
Rated Voltage:
-
400V/690V
-
Rated frequency:
-
50/60Hz
-
Mechanical Life:
-
5000 Times
-
Warranty:
-
18 Months
-
Customized:
-
Accept Special Order
-
Port:
-
Ningbo/Shanghai
-
Certification:
-
CE/ISO9001
-
Product Keywords:
-
Dual Power Isolation Switch
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
CN AISO
-
Model Number:
-
ASQ-250/4P
-
Rated Current:
-
250A
-
Frame current:
-
250
-
Product:
-
Automatic Transfer Switches
-
Rated Voltage:
-
400V/690V
-
Rated frequency:
-
50/60Hz
-
Mechanical Life:
-
5000 Times
-
Warranty:
-
18 Months
-
Customized:
-
Accept Special Order
-
Port:
-
Ningbo/Shanghai
-
Certification:
-
CE/ISO9001
-
Product Keywords:
-
Dual Power Isolation Switch

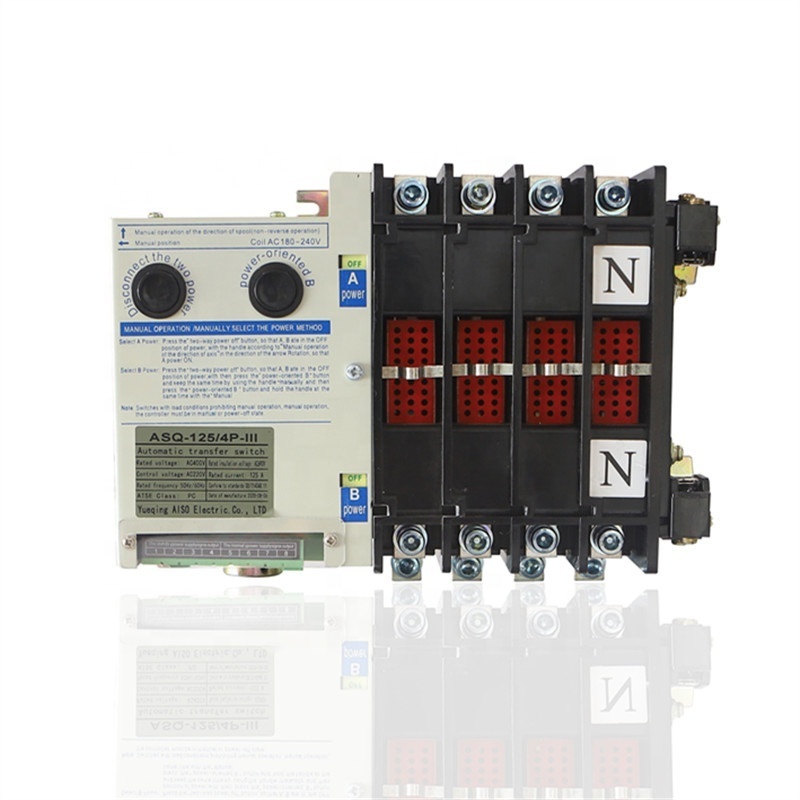

Dual power isolation switch/ automatic transfer switch 250a/ changeover switch 250a
Factory supply automatic transfer switch controller Dual power isolation switch/ automatic transfer switch 250a
Dual power isolation switch (ATS)is the latest company technology development of high-tech products.It conforms to GB/T14048/.1-2006,GB/T14048.11-2008,and also with “high-rise building fire norms” and “emergency lighting design guide” etc.It is suitable to AC 690V,rated frequency 50Hz/60Hz.
Two section changeover switch 250a, change from one power supply connect to another immediately on the intermediate open position when the switch get the switching signal.
Three section automatic transfer switch 250a when get the switching signal can change from one power supply connect to another or change from one power supply connect to the intermediate immediately or affter a preset delay time.
The class of S or L seriesswitch:PC
The front plate wiring.
If you are interested in dual power automatic transfer switch intelligent controller settings, pls contact us.
Dual power isolation switch/ automatic transfer switch 250a/ changeover switch 250a
Main technical parameters Dual power isolation switch/ automatic transfer switch 250a/ changeover switch 250a
| Model | ASQ-250/4P | ||
| Rated working voltage Ue | AC400V | ||
| Rated insulation voltage | 690V | ||
| Rated impulse withstand voltage | 8kV | ||
| Operating cycles(S/times) | 30S | ||
| Switching time | 0-99S | ||
| Model | Overall dimension | Installation dimension | Copper bar dimension | ||||||
| L | W | H | L1 | W1 | 3-Ø | L2 | T | P | |
| ASQ-125/4P | 298 | 193 | 112 | 185 | 152 | Ø7 | 20 | 4 | 35 |
