Quick Details
-
Dimension(L*W*H):
-
3650*1750*2200mm
-
Weight:
-
0.9 KG
-
Name:
-
Mini granulating fertilizer loader feeding hopper
-
Key words:
-
Fork lift silo
-
Type:
-
Conveying equipment
-
Silo type:
-
Assembly Farm Machinery
-
Power:
-
3+(4) kw
-
Application:
-
Conveying fertilizer, powder, cement, sand
-
Auxillary function:
-
Crushing and mixing
-
Structure:
-
Conveyor System
-
Color:
-
Customer Request
Quick Details
-
Core Components:
-
motor
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huaqiang
-
Dimension(L*W*H):
-
3650*1750*2200mm
-
Weight:
-
0.9 KG
-
Name:
-
Mini granulating fertilizer loader feeding hopper
-
Key words:
-
Fork lift silo
-
Type:
-
Conveying equipment
-
Silo type:
-
Assembly Farm Machinery
-
Power:
-
3+(4) kw
-
Application:
-
Conveying fertilizer, powder, cement, sand
-
Auxillary function:
-
Crushing and mixing
-
Structure:
-
Conveyor System
-
Color:
-
Customer Request

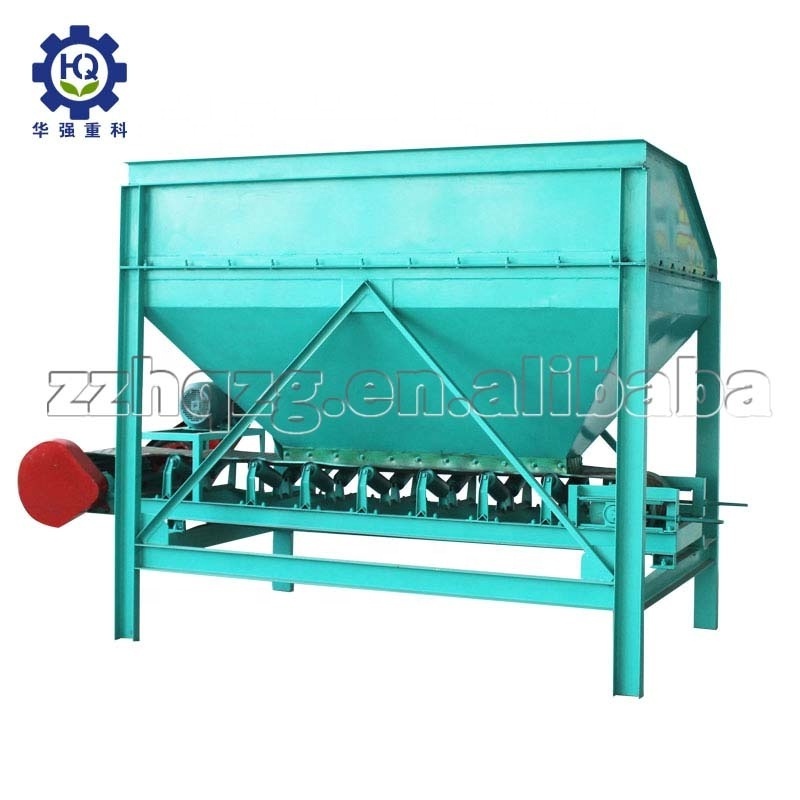

Mini granulating fertilizer loader feeding hopper
Mini granulating fertilizer loader feeding hopper
This machine is a new combination of capacity and even feeding. The machine has material storage bin, anti caking crushing device, discharging adjustment system and conveying device. The overall combination enables large volume storage of materials to be transported at a uniform speed and can be continuously worked continuously, especially for engineering applications such as chemical fertilizers and aquaculture.
Feature of Mini granulating fertilizer loader feeding hopper
The machine is mainly used for the mechanized feeding and transport of raw materials. The raw material can be continuously fed by a shovel to reduce the artificial fatigue. The middle of the silo has a pulverizing and feeding device. The material in the silo is too much to start the pulverizing device. The main shaft runs to com-minuted and accumulated materials, so that the material is loose from the line, and falls on the conveyor belt, and the belt is on the belt.
The shovel bin is suitable for the uniform conveying characteristics of various solid materials and certain moisture materials.
fork-lift truck
loader feeding hopper
Fertilizer fork lift silo
Parameter of Mini granulating fertilizer loader feeding hopper
|
M odel |
Dimensions (m m ) |
P ower ( kw ) |
V olume ( m³ ) |
Weight (t ) |
|
1525type |
3650×1750×2200 |
3+(4) |
3.6 |
0.9 |
|
2030type |
4200×2150×2550 |
4+(4) |
8.3 |
1.4 |
