1. Inclined design for easy observation.
2. Double control
3. Sinking design
- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
dingrun
-
Year:
-
new
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
11 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product
-
Product name:
-

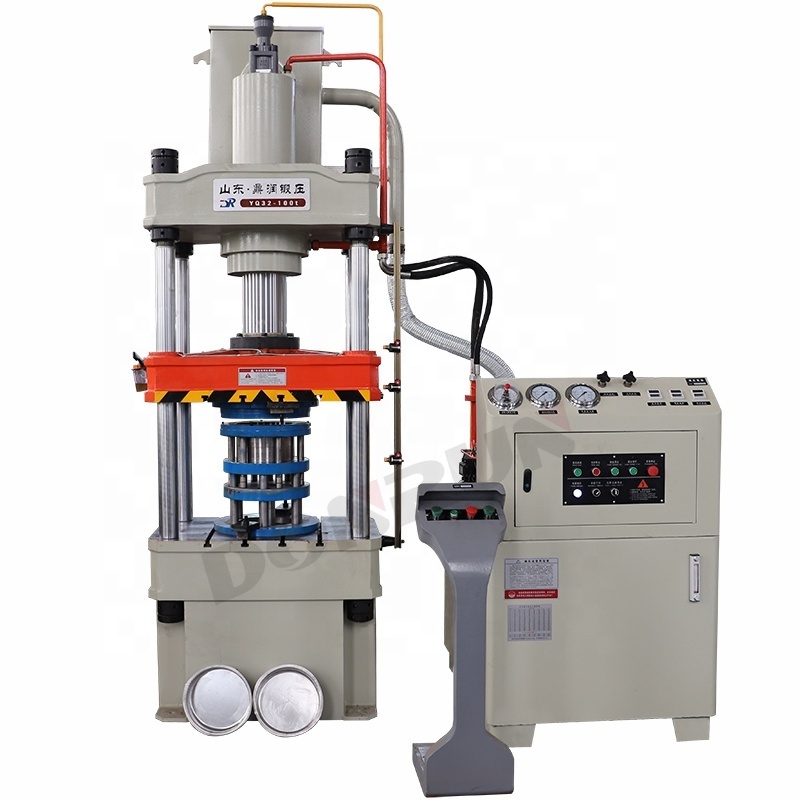

315 ton manhole cover four column hydraulic press machine
-
Type:
-
Four Columns hydraulic press
-
Material:
-
45# Steel Material
-
Usage:
-
metal stamping four column hydraulic heat press machine
-
Application:
-
Metal ,non-metalic forming procession: resin,plastic ,pvc ,melamine
-
Function:
-
steel product pressing with molds,kitchenware,container
-
supplier type:
-
manufacturer
-
Weight:
-
1-6T
-
Power(W):
-
22KW
-
Name:
-
Hydraulic Workshop Press
Quick Details
-
Machine Type:
-
Four-column Two-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Ejector Force (kN):
-
630
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
dingrun
-
Year:
-
new
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
11 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product
-
Product name:
-
315 ton manhole cover four column hydraulic press machine
-
Type:
-
Four Columns hydraulic press
-
Material:
-
45# Steel Material
-
Usage:
-
metal stamping four column hydraulic heat press machine
-
Application:
-
Metal ,non-metalic forming procession: resin,plastic ,pvc ,melamine
-
Function:
-
steel product pressing with molds,kitchenware,container
-
supplier type:
-
manufacturer
-
Weight:
-
1-6T
-
Power(W):
-
22KW
-
Name:
-
Hydraulic Workshop Press
315 ton
hydraulic deep drawing press machine
Product Description
The main performance characteristics:
The main unit of this series of hydraulic press machine adopts a three-beam four-column structure, the hydraulic system uses a cartridge valve oil circuit, and the electrical system uses a relay or PLC control circuit. It has adjustment and semi-automatic operation modes.
The whole hydraulic press machine is simple, compact, economical and reasonable, and has a long service time. The hydraulic impact force is small, reducing the connection pipeline and leakage.
The whole hydraulic press machine is simple, compact, economical and reasonable, and has a long service time. The hydraulic impact force is small, reducing the connection pipeline and leakage.
The working pressure, pressing speed and stroke range of this series of hydraulic press machines can be adjusted within the specified range according to the process requirements, and two process methods of constant pressure and fixed stroke can be realized.
During constant pressure molding, there is a pressure-holding delay and automatic return after pressing. Application field :
During constant pressure molding, there is a pressure-holding delay and automatic return after pressing. Application field :
This series of hydraulic press machine is suitable for the pressing process of various plastic materials, such as stamping, bending, flanging, sheet stretching, etc. Can also be engaged in calibration, press-fitting, grinding wheel molding, cold extrusion metal parts molding, plastic products,rubber products and powder products compression molding process.
Product main technical specifications:
|
Specification
|
|
Unit
|
315T-F
|
315T-A
|
315T-A-Z
|
315T-B
|
315T-C
|
|
|
Nominal force
|
|
KN
|
3150
|
3150
|
3150
|
3150
|
3150
|
|
|
Max. pressure of liquid
|
|
MPa
|
25
|
25
|
25
|
25
|
25
|
|
|
Stroke of slider
|
|
mm
|
400
|
500
|
500
|
600
|
800
|
|
|
Max. opening height
|
|
mm
|
700
|
900
|
900
|
1000
|
1250
|
|
|
Working table size
|
|
mm*mm
|
700x700
|
800x800
|
800x800
|
1000x1000
|
1260x1200
|
|
|
Speed of slider
|
Descent speed
|
mm/s
|
60
|
80
|
160
|
100
|
100
|
|
|
|
Working speed
|
mm/s
|
6-12
|
6-12
|
6-12
|
6-12
|
6-15
|
|
|
|
Return speed
|
mm/s
|
60
|
60
|
85
|
60
|
80
|
|
|
Motor power
|
|
KW
|
11
|
15
|
15
|
15
|
22
|
|
|
Ejecting force
|
|
KN
|
50
|
63
|
63
|
63
|
63
|
|
|
Ejecting stoke (mm)
|
|
mm
|
250
|
250
|
250
|
250
|
250
|
|
|
Weight
|
|
T
|
4.5
|
5.8
|
6.3
|
8
|
11
|
|
Detailed Images
Hydraulic Press System:
The hydraulic transmission device of the machine is arranged beside the hydraulic press machine, and its role is to control the
movement of the slider. The hydraulic control system adopts the integral two-way plug-in valve integrated block. It has fast response speed, large oil-passing capacity, small flow resistance, reliable operation and easy maintenance. The power device of the cartridge valve uses a large flow CY high pressure variable axial piston pump.
The large-diameter pipes of the hydraulic system are connected by flange joints, which are shockproof and leak-proof. The hydraulic oil tank is equipped with an oil filter device and a liquid level display device. The filling tank is installed on the upper end of the upper beam.
1
New hydraulic pump station
1
Oil Pump
（updated from YCY to HY）
Nine plunger, high oil supply density, more stable flow, greatly reducing the phenomenon of micro-crawling of the cylinder piston, suitable for fine work, especially for the metal drawing industry, the forming effect is better.
2
Hard Pipe
The pressure line is connected by hard pipe, which has the advantages of
(1). Neat and beautiful;
(2). Reduce the impact on the pipeline , and it is more difficult to
spill
.
3
Combination Gasket
All oil joints are sealed with a combination of gaskets, internally with rubber, externally with
customized
red copper.
The advantages:
(1).The ductility of red copper is strong, making the bond tight;
(2).The red copper can effectively protect the rubber skin from breakage.
4
Seal Ring
After rough machining on an ordinary lathe and finishing by a CNC lathe, the α angle is processed more smoothly, the quality is completely uniform, and the seal is tight and difficult to leak.
Piston Rod And Column
(1).Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch it.
(2).
For the workpiece after medium-frequency quenching, we use the lathe to soft throw it, and then use an cylindricall grinding machine to repair the deformation, to ensure the accuracy.
*Punching cushioning installation *Mixing installation(hydraulic or mechanical)
*Movement working table *Touching industry display screen
*Cooling installation *PLC programmable control system
*light curtain Safety protector *Displacement device
*Movement working table *Touching industry display screen
*Cooling installation *PLC programmable control system
*light curtain Safety protector *Displacement device
PLC Control System
Optional
Hydraulic
Servo System
Optional
Hydraulic Cooling Unit
Optional
Finished Products
Hydraulic press mainly applies to:
metal non-metallic materials(watches, metal products, bicycles, motorcycles,tableware, kitchen utensils, automobiles, electrical appliances,rubber, grinding wheel, buttons,gold and silver jewelry, ceramics, powder metallurgy, etc.)
metal non-metallic materials(watches, metal products, bicycles, motorcycles,tableware, kitchen utensils, automobiles, electrical appliances,rubber, grinding wheel, buttons,gold and silver jewelry, ceramics, powder metallurgy, etc.)
Related Products
Our Service
Pre-sale service
Process services
The task you entrusted to Dingrun, our professional management team in accordance with the national high standards of quality, do every detail.
Company Introduction
Tengzhou Dingrun Forging Machinery Factory was built in 2005, covering an area of 20,000 square meters, has dozens of production lines, and an annual output value of 150
million. The technical team includes more than 20 engineers, many of whom have been engaged in the forging industry for more than 30 years. With an authoritative technical team to do product management and control, the products we make can withstand the test of the market.
million. The technical team includes more than 20 engineers, many of whom have been engaged in the forging industry for more than 30 years. With an authoritative technical team to do product management and control, the products we make can withstand the test of the market.
Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Packing&Shipping
Conventional four-column hydraulic press under 315 tons in stock packing:
1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.
FAQ
Q:What's the price and specification of hydraulic press machine?
A: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.
Q:How about your machine quality?We are worry about the quality.
A:Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q:How to select your machine?
A: You can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
Q:May I send samples to test? Do you have a test fee or not?
A: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products,so the moulds cost will be on your account, of course the moulds belong to you.
