Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Dimension(L*W*H):
-
226x94x160cm
-
Weight:
-
394 KG
-
Working Temperature Range:
-
-40 - 40 ℃
-
Core Components:
-
Fan Motor
-
Product name:
-
Waste Oil Heater/ hot air generator
-
Model:
-
KVH8000
-
Oil Consumption:
-
12-15 Liter per hour
-
Output Power:
-
230Kw
-
Output Heat:
-
800 000Btu/h
-
Output Air:
-
6500cbm/h+8500cbm/h
-
Reference Heating Area:
-
1000-1600sq.m
-
Working Pressure:
-
0.02-0.05bar
-
Color:
-
yellow & black
-
Max temperature:
-
100C
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Waste Oil, Diesel Oil
-
Voltage:
-
220v or 110v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KING VITAL
-
Dimension(L*W*H):
-
226x94x160cm
-
Weight:
-
394 KG
-
Working Temperature Range:
-
-40 - 40 ℃
-
Core Components:
-
Fan Motor
-
Product name:
-
Waste Oil Heater/ hot air generator
-
Model:
-
KVH8000
-
Oil Consumption:
-
12-15 Liter per hour
-
Output Power:
-
230Kw
-
Output Heat:
-
800 000Btu/h
-
Output Air:
-
6500cbm/h+8500cbm/h
-
Reference Heating Area:
-
1000-1600sq.m
-
Working Pressure:
-
0.02-0.05bar
-
Color:
-
yellow & black
-
Max temperature:
-
100C
Picture & Parameter

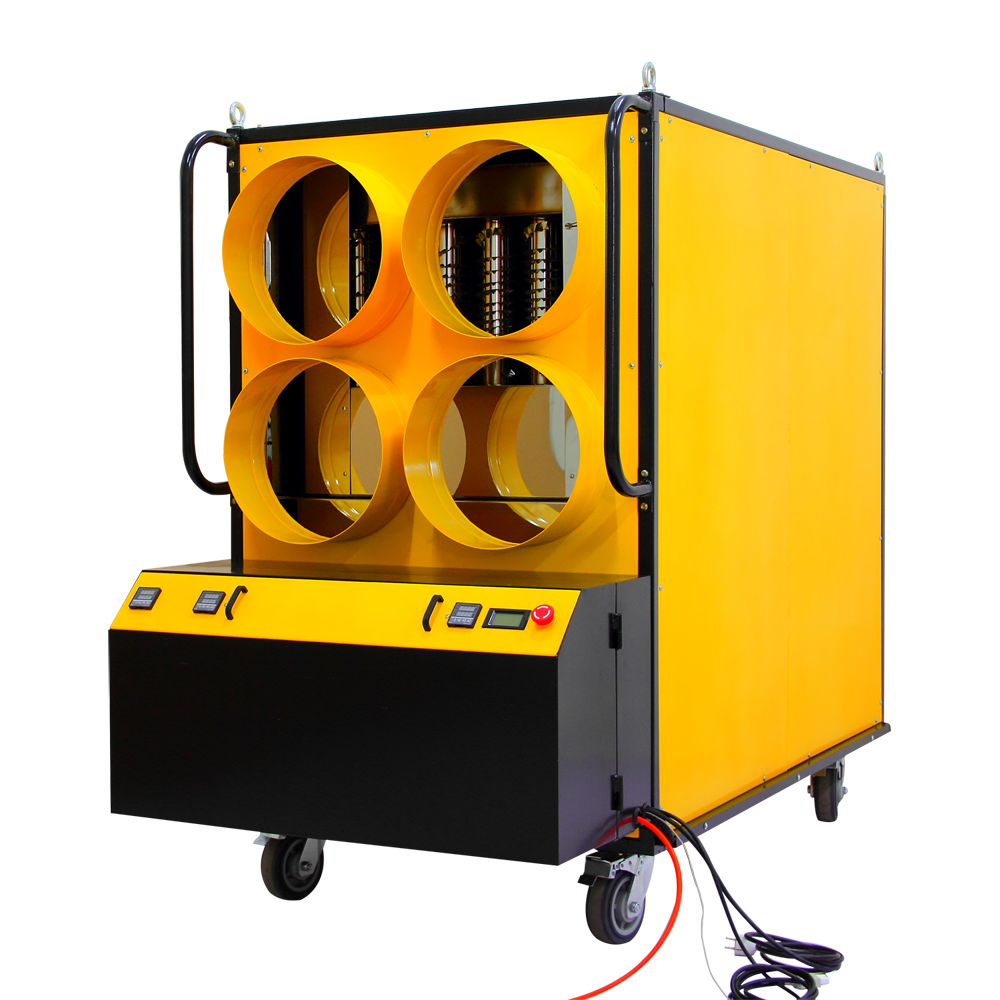

Product Feature
Many clients choose the KVH8000 heater for its significant power, convenient mobility.
Applications: construction site, mine operation, outdoors, etc.
It is also a good option if you need distance heat transfer.
Big Power & Integrate-
1. KVH8000 is our hot sell big power heater, 800 000Btu, 230kw, 220v /110v.
2. KVH8000 heater has two fans to blow out hot air/ suck in cool air fast.
3. Four big air holes to release hot air
concentratedly.
4. It is highly integrated, includes an external 213L oil storage tank, air compressor, etc. You only need to connect it to a socket; the heater will work all by itself.
Convenience-
1. KVH8000 heater can run on all kinds of liquid oil/waste oil with or without impurities, such as waste car oil, soybean oil, diesel oil, etc.
2. KVH8000 has four wheels and brakes;
3.
Four air ducts are coming with the heater for long-distance heat transfer.
Efficiency-
1.The heater releases warm air within four minutes.
2.The alarm sound comes at once if a malfunction happens.
Safe-
1.KVH8000's combustion chamber is 100% sealed, which means the burner's fire can't go outsides.
2.Fans keep blowing cool air until the chamber temperature reduces to a certain number.
No smoke-
1.The chamber's chimney connector is 100% sealed with asbestos pads and flanges. So there is impossible to smoke leakage indoors.
2.With the correct setting, the heater can have no smoke outdoor as well.
4. It is highly integrated, includes an external 213L oil storage tank, air compressor, etc. You only need to connect it to a socket; the heater will work all by itself.
Convenience-
1. KVH8000 heater can run on all kinds of liquid oil/waste oil with or without impurities, such as waste car oil, soybean oil, diesel oil, etc.
2. KVH8000 has four wheels and brakes;
3.
Four air ducts are coming with the heater for long-distance heat transfer.
Efficiency-
1.The heater releases warm air within four minutes.
2.The alarm sound comes at once if a malfunction happens.
Safe-
1.KVH8000's combustion chamber is 100% sealed, which means the burner's fire can't go outsides.
2.Fans keep blowing cool air until the chamber temperature reduces to a certain number.
No smoke-
1.The chamber's chimney connector is 100% sealed with asbestos pads and flanges. So there is impossible to smoke leakage indoors.
2.With the correct setting, the heater can have no smoke outdoor as well.
Order Display
Heater Test
Kingwei Oil Heater Test
(V)
- How long reach 100℃
Test result, The hot air outlet, raise from 26 to 100℃ takes 6 minutes 26 seconds
Video link, https://youtu.be/liVvfBJzh7Q
Kingwei Oil Heater Test (VI)- What's the smoke temp
We first tested the smoke temperature on 30th April 2020. Four minutes the smoke temp rise from 31 to 260 Celsius. The rising
speed is breakneck. Video link, https://youtu.be/471Fv0ecTGI
We took this second video on 22nd March 2021, in which the heater has an updated smoke construction. You can see that the smoke temp rises from 31 to only 140 celsius in the same four minutes, which means smoke has a slower pass speed, which leads to less heat loss. The heater's current heat efficiency is around 90%.
Video link, https://youtu.be/k8quwdG2r9I
speed is breakneck. Video link, https://youtu.be/471Fv0ecTGI
We took this second video on 22nd March 2021, in which the heater has an updated smoke construction. You can see that the smoke temp rises from 31 to only 140 celsius in the same four minutes, which means smoke has a slower pass speed, which leads to less heat loss. The heater's current heat efficiency is around 90%.
Video link, https://youtu.be/k8quwdG2r9I
Kingwei Oil Heater Test (VII)- How the air compressor works
Test result, The compressed air, raise from 0 to 7bar, takes two minutes.
Each working period uses 2 bar compressed air, which takes one minute 30 seconds—thirty seconds to raise compressed air from 5-7 bar, the left one minutes for burner's consumption. After compressed air reduces to 5bar, the air compressor starts to work again.
Video link, https://youtu.be/uvC_zhkW7Lk
Kingwei Oil Heater Test (VIII)- What's the 3 meter air hose temp
Test result, The end of the 3-meter hot air hose, raise from 29 to 48℃ takes 2 minutes
Video link, https://youtu.be/7QVXIPLOGYc
Description, When the room’s temperature(near the hot air outlet
hole) is 19℃, ice melts. Heater starts to blow out hot air, which accelerates its process.
hole) is 19℃, ice melts. Heater starts to blow out hot air, which accelerates its process.
Test result,
The first three minutes, room’s temperature rases 6℃, from 19℃ to 35℃
The ice block can still see its shape.
From the fourth minutes to the eighth minute, the room’s temperature rases 10℃, from 40 to 50℃.
The ice block still melts, sleeks and becomes smaller.
From the ninth minutes to the final 14th minutes 30 seconds, room’s temperature rases 4℃, from 54℃ to 58℃
The ice block can’t see its shape anymore and melt completely to water.
It takes 14 minutes 30 seconds to melt 200g ice block completely. Waste engine oil consumption is 1.75L.
Video link, https://youtu.be/G6NJJ1-QT0Y
Test Explanation
We tested the heater in a 34sq.m(6.1*5.64m), 3.4-meter height, unsealed workshop
Test day’s weather is sunny and windy.
Temp is 15-21℃
The test date is the 29th-30th of April 2020.
Fuel: waste engine oil
Model: KVH6000(400 000Btu/h)
All the data will change in a different environment.
Application
Our waste oil heater has many applications,can be used both indoor and outdoor.Such as garage,workshop,factory,poultry house,greenhouse,drying kiln,tunnel,stadium,snow melt,warm airplane engine etc.
Drying Installation
Farm Installation
Workshop Installation
