Quick Details
-
Brand Name:
-
Blue Taiyang
-
Model Number:
-
403050
-
Battery Size:
-
LP403050
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
13g
-
The charging ratio:
-
0.2c-1c
-
The discharge rate:
-
0.2c-1c
-
Electric Energy:
-
2.4 Wh
-
Type:
-
403050 3.7v 650mah li-ion rechargeable lithium-ion battery
-
Size:
-
4.0*30.0*50.0mm
-
Max. Continuous charge:
-
1C
-
Max. Continuous discharge:
-
1C
-
Operating Temperature:
-
-20~60deg C
-
PCB protections (optional):
-
over-charge/over-discharge/short-circuit/over-temperate protection
-
Warranty:
-
12 Months
-
Sample:
-
Provide Free Samples
-
Cycle Life:
-
500 times
-
OEM/ODM:
-
Yes(Accepted)
Quick Details
-
Storage Type:
-
Normal temperature storage
-
Anode Material:
-
LCO
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Digital Products / Bluetooth / Smart Watch / GPS
-
Brand Name:
-
Blue Taiyang
-
Model Number:
-
403050
-
Battery Size:
-
LP403050
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
13g
-
The charging ratio:
-
0.2c-1c
-
The discharge rate:
-
0.2c-1c
-
Electric Energy:
-
2.4 Wh
-
Type:
-
403050 3.7v 650mah li-ion rechargeable lithium-ion battery
-
Size:
-
4.0*30.0*50.0mm
-
Max. Continuous charge:
-
1C
-
Max. Continuous discharge:
-
1C
-
Operating Temperature:
-
-20~60deg C
-
PCB protections (optional):
-
over-charge/over-discharge/short-circuit/over-temperate protection
-
Warranty:
-
12 Months
-
Sample:
-
Provide Free Samples
-
Cycle Life:
-
500 times
-
OEM/ODM:
-
Yes(Accepted)

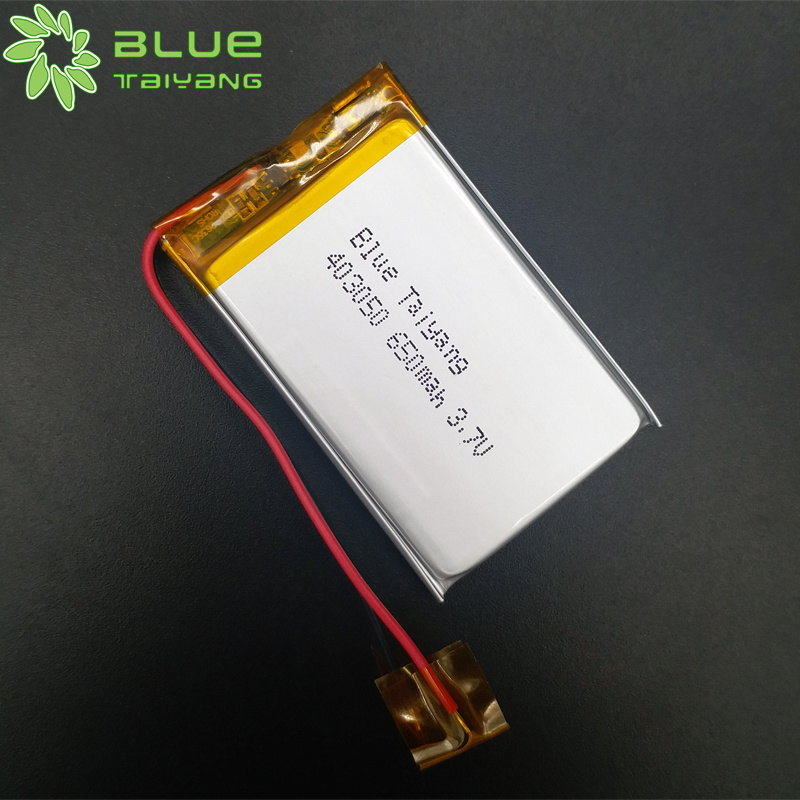

Blue Taiyang 403050 650mah li-ion rechargeable lithium-ion battery 700mah 650mah small battery
|
|
| T | 4.0mm max. |
|
| W | 30.0mm max. | |
| H | 50.0mm max. | |
| L | 60.0±3.0mm |
Battery Raw Materials
|
Chemical Name |
Molecular formula |
Chemical code |
In % by Weight |
|
Aluminum Foil |
Al |
7429-90-5 |
8.0% |
|
Copper Foil |
Cu |
7440-50-8 |
10.0% |
|
Lithium cobalt oxide |
LiCoO2 |
12190-79-3 |
48.0% |
|
Carbon |
C |
1333-86-4 |
15.0% |
|
Lithium Hexafluorophoshate |
LiPFe |
21324-40-3 |
10.0% |
|
Polypropylene |
PP |
9003-02-0 |
2.0% |
|
Nickel |
Ni |
7440-02-0 |
2.0% |
|
Nylon |
-- |
9008-75-7 |
5.0% |
Product Parameter
|
Type |
Blue Taiyang 403050 600mah li-ion rechargeable lithium-ion battery 650mah small battery |
|
Reference Certification |
CB, IEC62133, KC, CE, UN38.3, MSDS. |
| Charge voltage | 4.2V |
| Nominal voltage | 3.7V |
| Nominal capacity | 650mAh |
| Charge current Standard Charging | 0.2C |
|
Charge current Rapid charge |
1.0C |
|
Charging time Standard Charging |
6.0 hours (Ref.) |
|
Rapid charge |
2.0 hours (Ref.) |
| Cycle Life | 500 times |
| Operating temperature | Charging : 0℃ ~ 55℃ |
| Discharging : -20℃ ~ 65℃ | |
| Max. charge voltage | 4.3v |
| Max. charge current | 1C |
| Max discharge current | 1C |
| Weight | 13g |
