Quick Details
-
Product name:
-
HDMI Wireless 1x4
-
Input:
-
1 HDMI
-
Output:
-
1 HDMI LOOP Output 4hdmi receiver output
-
Color:
-
Black
-
Type:
-
Wireless TX+4RX
-
Product Type:
-
Wireless Video Transmitter
-
Resolution:
-
1080P@60Hz Max
-
Certifications:
-
CE FCC ROHS
-
Transmission distance:
-
200m
-
Dimension (L x W x H):
-
127.5x127.5x25 (mm)
Quick Details
-
Model Number:
-
HDEX0021M4
-
Brand Name:
-
ASK
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Wireless 1x4
-
Input:
-
1 HDMI
-
Output:
-
1 HDMI LOOP Output 4hdmi receiver output
-
Color:
-
Black
-
Type:
-
Wireless TX+4RX
-
Product Type:
-
Wireless Video Transmitter
-
Resolution:
-
1080P@60Hz Max
-
Certifications:
-
CE FCC ROHS
-
Transmission distance:
-
200m
-
Dimension (L x W x H):
-
127.5x127.5x25 (mm)
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m
HDMI Wireless Extender
Model No: HD EX0021 M1
This product will let the user experience of transmitting the HD content by wireless. The HDMI sources over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away .
The extender follows the TCP / IP standard Wireless Transport Protocol , so it has high transmission rate and s trong anti-interference capability . It also s upport s HDMI m irror output and infrared remote control extension . The HDMI Wireless Extender is widely applicable to office presentation, lecture, education , conference, family entertainments etc.
HDEX0021M4 Hdmi Wireless Video 1 Transmitter And 4 Receiver Long Range Up To 200m
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m
FEATURES :

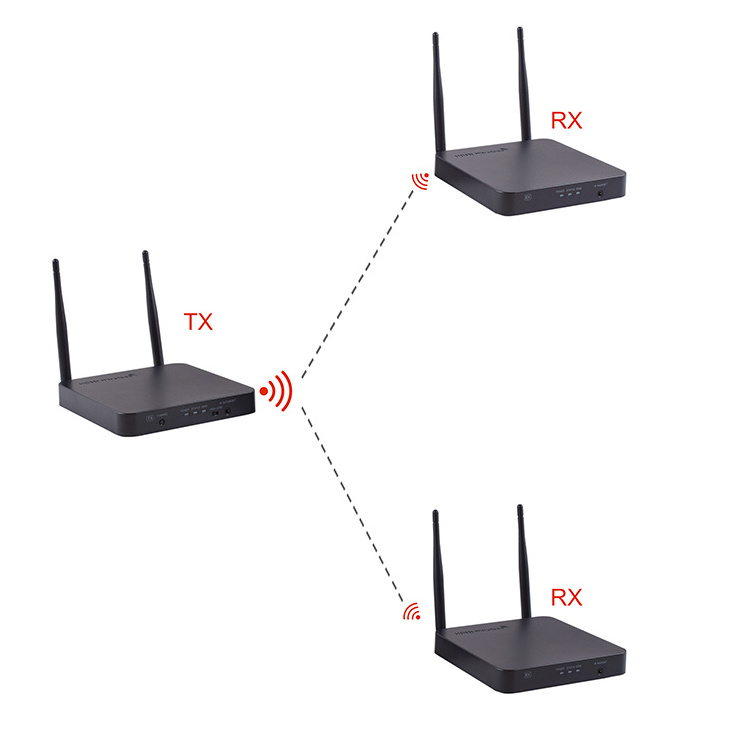

l Contains a transmitter (TX) and a receiver (RX) . The HDMI signal over wireless transmission from the transmitter to the receiver
l One TX can be paired with multiple (up to 4 PCS ) RX
l The TX support one HDMI loop output , for local screen monitor
l Support HDMI resolution : 480P~1080P@50/60Hz and SVGA~WUXGA
l Use the internationally accepted 5G ISM frequency band , high transmission rate and s trong anti-interference capability
l Using an external dual - gain antenna s. Full HD 1080p transmits up to 2 00 meters wireless in open space .( May be affected by the u se environment )
l Extends wide-band infrared remote to control source device from display side
l Support OSD , f or informed of device status
l Simple Plug and Play , no software installation required
l Support s both panel s ettings and W eb Configuration Interface , Simple and easy to use
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m
P ACKAGE CONTENTS :
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m
1 . HDMI Wireless Transmitter 1pcs
2. HDMI Wireless Receiv er 1 ~4 pcs ( optional )
3. IR Transmitter cable 1 pcs
4. IR Receiv er cable 1~4 pcs
5. U ser manual 1pcs
6. DC power adapter 2~5pcs
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m
SPECIFICATIONS:
| HDMI Audio Format | LPCM2.0 |
| HDMI Max bandwidth | 225MHz |
| HDMI Max baud rate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| HDMI output cable distance | ≤12m AWG26 HDMI standard cable |
| Antenna type |
External dual 3dBi gain antenna
Wireless |
| Wireless Band | 5GHz ISM Band |
| Max Data rates | 2T2R up to 300Mbps |
| Transmit Output Power(IPEX) | 16±2dBm |
| Transmission distance | up to 200m (in open space) |
| IR Carrier frequency | 20-60KHz |
| TX/RX Max working current | 1A |
| Power adapter format Input | AC 100V~240V 50HZ/60Hz, DC5V/2A |
| Operating Temperature range | -5 to +45℃ |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Case Dimension (L x W x H) | 127.5x127.5x25 (mm) |
| Weight | TX175g/RX170g |
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m
OPERATIONG AND CONNECTION :
1. Connect one HDMI cable from the DVD/BD player into the HDMI input port of the HDMI wireless TX.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port of the HDMI wireless RX.
3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device. 4. Connect IR Receiver cable to the HDMI wireless RX.
5. Connect 5V power supplies to the TX&RX, the POWER indicator will be lit at this moment.
6. The device will automatically connect after power on. The STATUS indicator of TX and RX will be lit when the connection is successful. If the HDMI input or output signal is normal, the HDMI indicator light will be lit also. The STATUS indicator flashes continuously during normal transmission.
| Packaging Details: | Standard neutral gift box |
|---|---|
| Delivery Detail: | in 2-3days later after your payment |
HOT HDMI ASK Wireless Hdmi Audio Video Transmitter And Receiver Wifi audio transmitter 100M
HDMI Wireless Transmitter and Receiver 1x4 HDMI Splitter Wireless Audio 1 TX And 4 RX Long Range Up To 200m Ma nufacturers High Quality OEM 1080P Wireless Av Video Audio Signal Transmitter 200m
Standard Package: Blister Box+ Instruction book + white box .Mostly,we could provide our Ai. diecut for customer to add their own design.Or We could also do customized package as customer's requirements.
