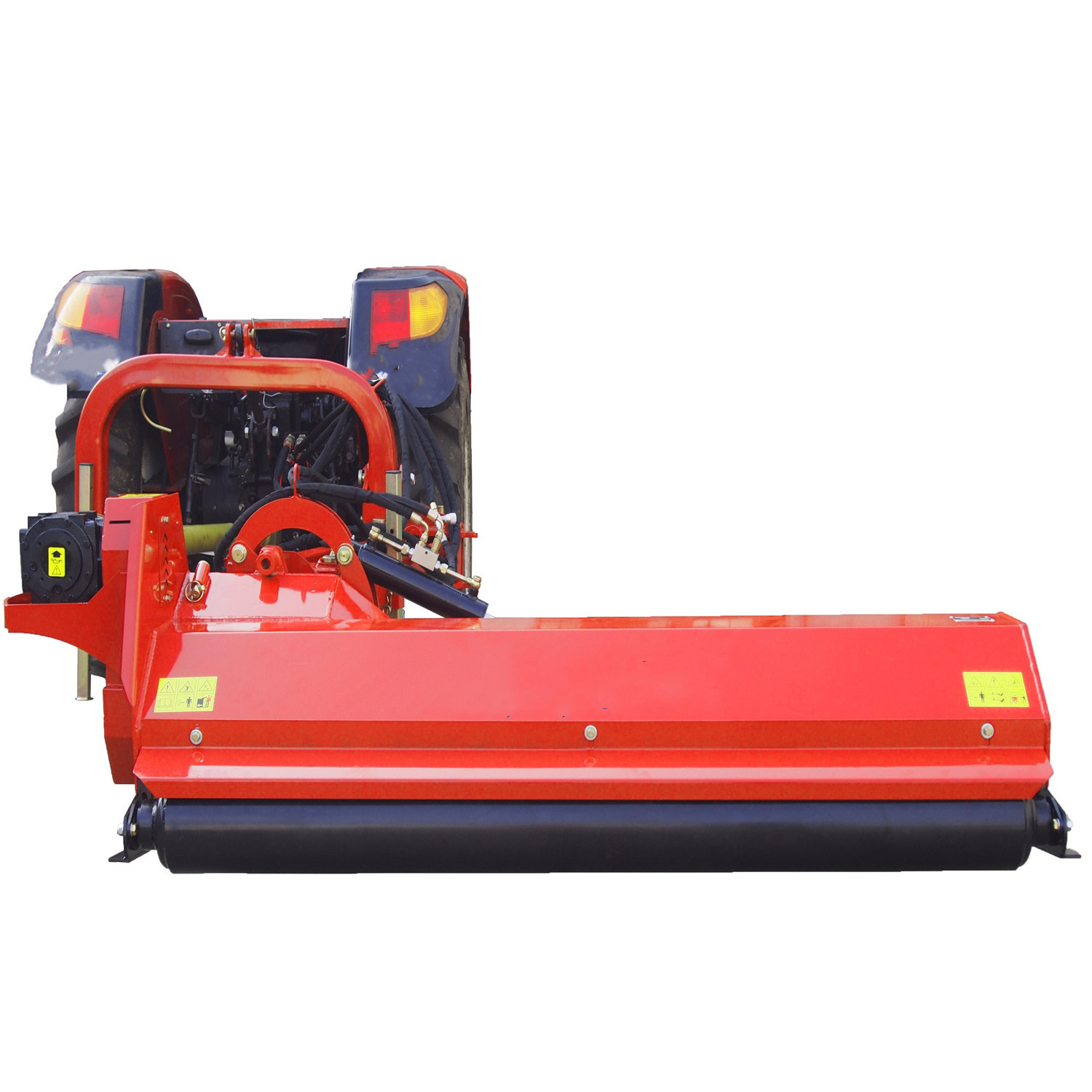

Our AGF verge flail mowers are ideal for ditches, embankments, hedges, trees, debris, vines, and other vegetation. This flail
mower with its hydraulic swivel arm is designed to fit tractors with 50HP to 120HP engines and connects to your CAT II 3-point
hitch. Performance features: Our AGF verge flail mower series is equipped with a high-performance gearbox that maximizes the
performance of the mower when matched to the proper tractor size. The hydraulic swivel arms allow for maximum flexibility and a
mowing range angle from -55 degrees to +90 degrees. The hydraulic swivel arm saves maneuvering in narrow corners when used as aregular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arms.
Safety features: This kind of mower has 14-18 large forged steel galvanized high performance hammers. Each hammer weighs 1,200 grams (2.45 pounds U.S.), ensuring a perfect mowing result on grass & undergrowth, as well as bushes & hedges. The mowing height is adjusted at the heavy self-cleaning rear roller to prevent the mower from cutting into the ground on bumpy surfaces. It adjusts
both at the rear roller and the side skids.
- Product Details
- {{item.text}}
Quick Details
-
Use:
-
land formation
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
qianyi
Quick Details
-
Weight (KG):
-
800
-
Marketing Type:
-
New Product
-
Type:
-
Lawn maintenance machine
-
Use:
-
land formation
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
qianyi
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
MODEL
|
AGF140
|
AGF160
|
AGF180
|
AGF200
|
AGF220
|
||||
|
Structure Weight
|
565kg
|
577kg
|
596kg
|
625kg
|
658kg
|
||||
|
Tilt-Up Angle
|
90°
|
90°
|
90°
|
90°
|
90°
|
||||
|
Tilt-Down Angle
|
53°
|
53°
|
53°
|
53°
|
53°
|
||||
|
Cutting Width
|
1380mm
|
1580mm
|
1780cm
|
1980cm
|
2180cm
|
||||
|
Flail Type
|
Hammer
|
|
|
|
|
||||
|
Number Of Flails
|
14
|
14
|
18
|
18
|
18
|
||||
|
Vertical Extending Distance
|
1780mm
|
1980mm
|
2180mm
|
2380mm
|
2580mm
|
||||
|
Horizontal Extending Distance
|
2345mm
|
2345mm
|
2345mm
|
2345mm
|
2345mm
|
||||
|
PTO Speed
|
540r/min
|
540r/min
|
540r/min
|
540r/min
|
540r/min
|
||||
|
Tractor HP
|
50-85hp
|
50-85hp
|
70-110hp
|
80-110hp
|
90-120hp
|
||||
