Quick Details
-
Machine name:
-
auto taper square machine
-
Processing range:
-
min square 15*15 max square 70*70mm
-
Thickness:
-
1.0-1.2mm
-
Forming length:
-
950mm
-
Forming time:
-
3 second
-
Main motor:
-
4 KW
-
Machine weight:
-
2500KG
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-STRONG
-
Weight (KG):
-
2500
-
Machine name:
-
auto taper square machine
-
Processing range:
-
min square 15*15 max square 70*70mm
-
Thickness:
-
1.0-1.2mm
-
Forming length:
-
950mm
-
Forming time:
-
3 second
-
Main motor:
-
4 KW
-
Machine weight:
-
2500KG
Product Description
Product Description ：

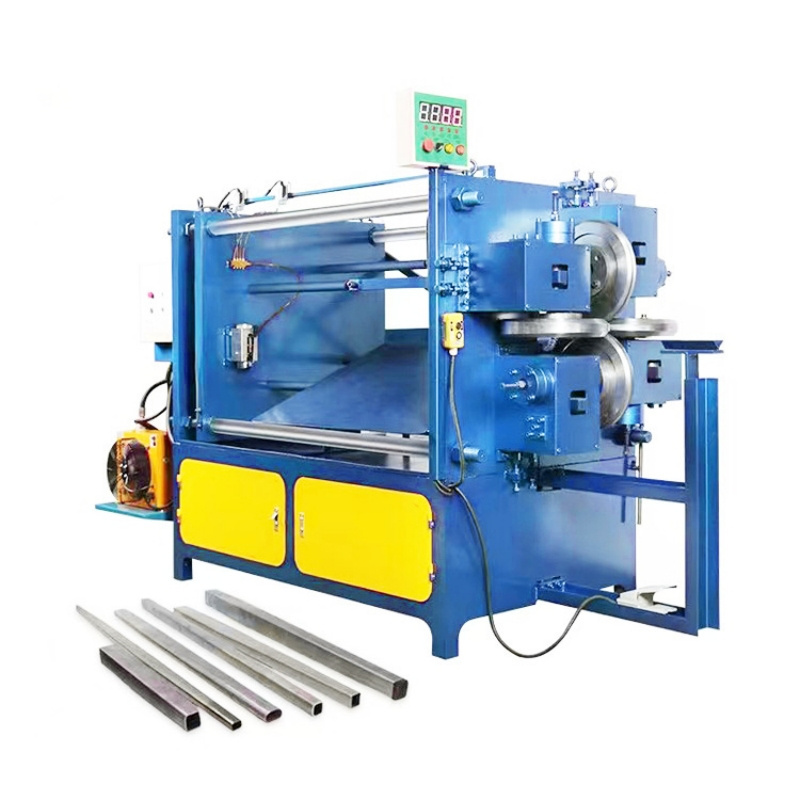

The taper square tube machine is abbreviated as the taper square machine.It is a device specially developed to make the taper square tube of hardware furniture. It is a supporting equipment with the taper tube machine. First, the round tube is used to taper into the tapered tube, and then the taper square machine is used for processing.
Product Features：
1. The mold is customized according to the requirements
(the factory has a CNC engraving center).
2. Low noise, high processing intensity, easy and labor-saving.
3. Iron, aluminum can be processed.
4. The maximum processing length of the cone square machine
is 950mm, and the maximum processing diameter of round pipes is 80mm.
5. Servo motor.
6. The yield is high and the standard is flat.
7. There is no notch in the square.
Machine Parameter
|
PROCESS RANGE (MM)
|
SQUARE MIN 15*15, MAX 70*70
|
|
THICKNESS (MM)
|
1.0-1.2
|
|
FORMING TIME (SECOND)
|
5-10
|
|
FORMING LENGTH (MM)
|
950
|
|
MAIN MOTOR
|
4 KW
|
|
SPINDELE CENTER HEIGHT
|
850
|
|
WEIGHT (KG)
|
2500
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
