Quick Details
-
Seals Type:
-
Open
-
Place of Origin:
-
Japan
-
Contact type:
-
Normal contact (two-point contact)
-
Number of rows:
-
1
-
Ring type:
-
One-piece inner and outer rings
-
Design:
-
High-capacity C
-
Universal matching bearing:
-
Yes,
-
axial clearance/ preload:
-
Measuring load, class C
-
Tolerance class:
-
P4
-
Material, bearing:
-
Bearing steel
-
Sealing:
-
Without
-
Lubricant:
-
None
Quick Details
-
Precision Rating:
-
P4
-
Number of Row:
-
Single row
-
Brand Name:
-
NSK EXPLO
-
Seals Type:
-
Open
-
Place of Origin:
-
Japan
-
Contact type:
-
Normal contact (two-point contact)
-
Number of rows:
-
1
-
Ring type:
-
One-piece inner and outer rings
-
Design:
-
High-capacity C
-
Universal matching bearing:
-
Yes,
-
axial clearance/ preload:
-
Measuring load, class C
-
Tolerance class:
-
P4
-
Material, bearing:
-
Bearing steel
-
Sealing:
-
Without
-
Lubricant:
-
None
Product Description
Specification

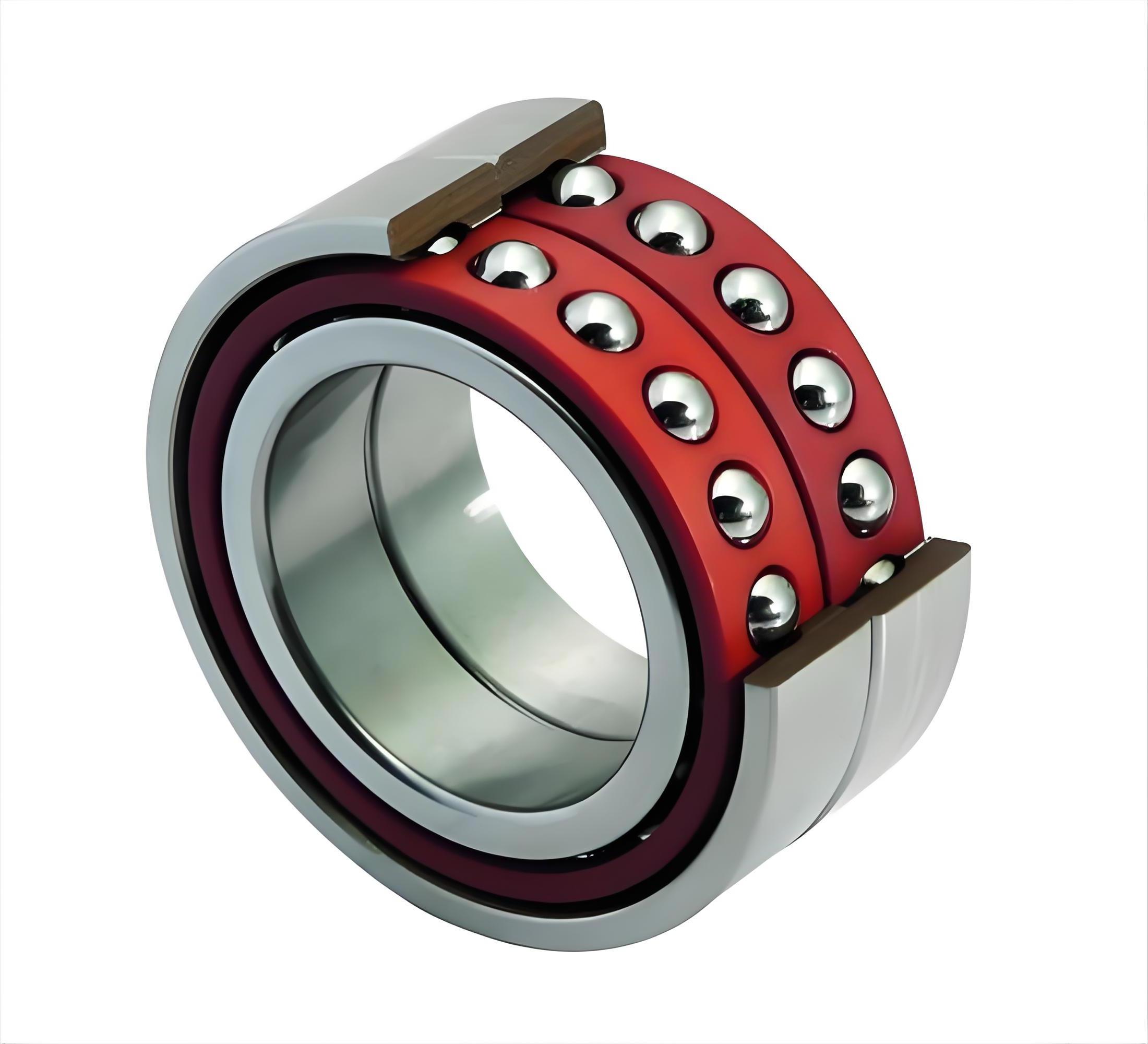

Super-precision, high-capacity, universally matchable single row angular contact ball bearing
Super-precision, high-capacity, universally matchable single row angular contact ball bearing
These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.
Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable
Features and benefits
High load carrying capacity
The lower shoulder enables a large number of balls to be incorporated in the bearing, giving it a relatively high load carrying capacity.
Good running properties
Rapid accelerations and decelerations are possible.
Easy mounting of universally matchable bearings
No adjustment is needed for correct internal clearance or preload.
|
Designation
|
Principal dimensions
|
|
|
Basic load ratings
|
|
Speed ratings
|
|
||||
|
|
|
|
|
dynamic
|
static
|
Reference speed
|
Limiting speed
|
||||
|
|
d/mm
|
D/mm
|
B/mm
|
C/KN
|
Co/KN
|
r/min
|
r/min
|
||||
|
71908 CE/P4ADBB
|
40
|
62
|
24
|
15.9
|
12
|
|
|
||||
|
71908 CE/P4ADGA
|
40
|
62
|
24
|
15.9
|
12
|
|
|
||||
|
71908 CE/P4ADT
|
40
|
62
|
24
|
15.9
|
12
|
|
|
||||
|
71908 CEGA/HCP4A
|
40
|
62
|
12
|
9.75
|
6
|
|
|
||||
|
71908 CEGA/P4A
|
40
|
62
|
12
|
9.75
|
6
|
|
|
||||
|
71908 CEGB/P4A
|
40
|
62
|
12
|
9.75
|
6
|
|
|
||||
|
71908 FE/HCP4ALDT
|
40
|
62
|
24
|
15.9
|
12
|
|
|
||||
|
71908 FE/P4ADBA
|
40
|
62
|
24
|
15.9
|
12
|
|
|
||||
|
71908 FEGA/HCP4A
|
40
|
62
|
12
|
9.75
|
6
|
|
|
||||
|
71908 FEGA/HCP4AL
|
40
|
62
|
12
|
9.75
|
6
|
|
|
||||
|
71908 FEGA/P4A
|
40
|
62
|
12
|
9.75
|
6
|
|
|
||||
|
71908/VA9D1
|
40
|
62
|
12
|
11.7
|
8
|
14 000
|
|
||||
|
7208 ACD/HCP4A
|
40
|
80
|
18
|
31.9
|
22.8
|
19 000
|
32 000
|
||||
|
7208 ACD/HCP4ADBA
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 CTYNSULP4
|
40
|
80
|
18
|
31.9
|
22.8
|
16 000
|
26 000
|
||||
|
7208 ACD/P4ADBA
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4ADBB
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4ADBC
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4ADGA
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4ADGB
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4ADGC
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4ADT
|
40
|
80
|
36
|
52
|
45.5
|
|
|
||||
|
7208 ACD/P4AQBTB
|
40
|
80
|
72
|
85.2
|
91.5
|
|
|
||||
|
7208 ACD/P4AQBTC
|
40
|
80
|
72
|
85.2
|
91.5
|
|
|
||||
|
7208 ACD/P4ATBTA
|
40
|
80
|
54
|
68.9
|
69.5
|
|
|
||||
|
7208 ACD/P4ATBTC
|
40
|
80
|
54
|
68.9
|
69.5
|
|
|
||||
|
7208 ACDGA/HCP4A
|
40
|
80
|
18
|
31.9
|
22.8
|
|
|
||||
|
7208 ACDGA/P4A
|
40
|
80
|
18
|
31.9
|
22.8
|
|
|
||||
|
7208 ACDGB/P4A
|
40
|
80
|
18
|
31.9
|
22.8
|
|
|
||||
Packing & Delivery
Packing:
1, Original brand packing. Contact us for more pictures.
Delivery:
We usually send goods by sea or by air freight depends on the weight and volum of your pakcage, such as UPS, Fedex, DHL, TNT, EMS,etc. If buyer has designated forwarder, we can also send goods to them directly based on buyer's requirement.
How long will it take to ship to my country?
If deliver by air express such as DHL, UPS, FEDEX, It will takes about 4-9 working days to arrive. If deliver by sea, It usually
takes about 30 to 45 working days to arrive.
What is the shipping cost?
The shipping cost depens on the gross weight and delivery address.
As for customized bearings, you can contact us for the exact shipping cost.
As for the RTS products, the shipping cost will be calculated by system automatically. you can see it on product page.
Payment:
We accept T/T (Bank Wire), Trade Assurance through alibaba.com, Western Union, Money Grame, Paypal, L/C. Buyer can pay in USD, AUD, CAD, SGD, EUR, GBP, HKD, JPY and cash.
If you have any further question, please feel free to contact us.
