Quick Details
-
Model Number:
-
HS6-Y2-6-04Q100-BR03(001)
-
Mechanical Life:
-
50000 Cycles
-
color:
-
available
-
Material:
-
PA66
-
Pins:
-
Brass Material
-
Housing color:
-
Black\White\Customized
Quick Details
-
Max. Voltage:
-
125V, 250V, 250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUACONN
-
Model Number:
-
HS6-Y2-6-04Q100-BR03(001)
-
Mechanical Life:
-
50000 Cycles
-
color:
-
available
-
Material:
-
PA66
-
Pins:
-
Brass Material
-
Housing color:
-
Black\White\Customized
Specification for ac dpdt rocker switch
|
Rating |
8A 250VAC 10A 125VAC 1/2HP 250VAC
|
|
Initial contact resistance |
50m Ωmax |
|
Insulation resistance |
100M Ω |
|
Withstand voltage |
1500VAC for terminal to terminal
|
|
Mechanical life |
100000 cycles |
|
Electrical life |
10000 cycles |
|
Terminals type |
quick contact and soldering |
|
Working temperature |
≤105℃ |
|
Working force |
700 ±300gf |
|
Main material of Body |
PA66 |
|
Material of Actuator |
PA66 |
|
Material of Terminals and movable contact |
brass |

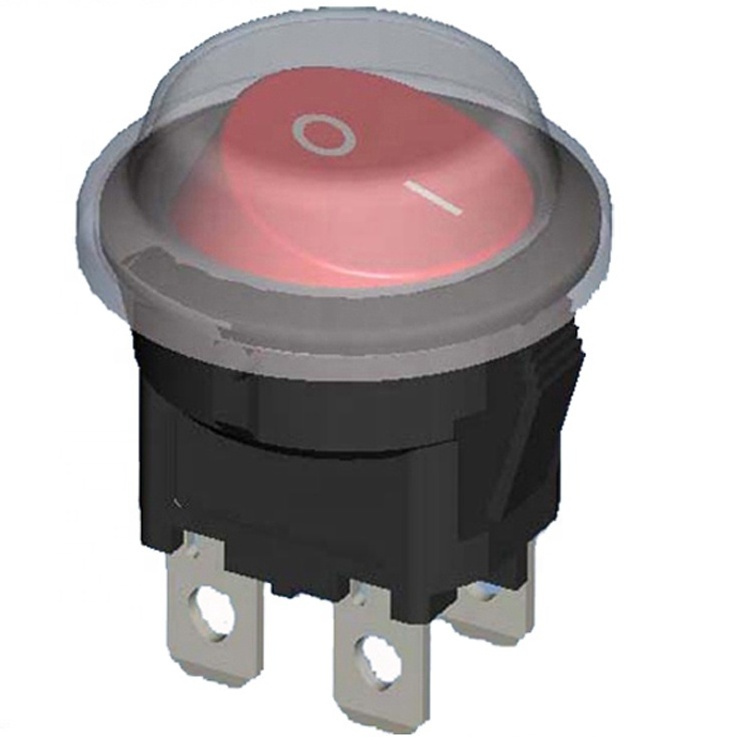

Picture of ac dpdt rocker switch
Certificates : UL VDE KC CB RoHS CCC
All of our products are UL VDE KC CE CB RoHS CCC approved.
As a manufacturer in the field of manufacturing AC sockets, AC Inlet, receptacles and rocker switches, we can design the items as requirements. It is available for us send samples for testing at any time.
Please contact us to get the drawing of our items by email, thanks!
