New!Upgrade Type Common Rail Injector Nozzle Valve Measuring Tool With 7PCS Micrometer Gauge, Common Rail Injector Repair Tool

New!Upgrade Type Common Rail Injector Measuring Tool With 7PCS Micrometer Gauge, Common Rail Injector Repair Tool

Description:
1. Test nozzle pin valve lift, which decides nozzle pin valve shim thickness (Horsepower different)
2. Test armature total range, which decides circlip thickness
3. Test armature range, which decides the hexagonal shim thickness below.
4. Test remaining air gap, which decides the hexagonal shim thickness above.
5. If VE is not proper, pls debug solenoid valve spring force adjusting shim.
6. If LL is not proper, pls debug nozzle pin valve spring force shim.

Specification:
Armature lift test: 45-50um
Cross lift test: 35-50um
Remaining air gap testing: 35-55um
The armature total rang: 50-70um
Test injectors: Common rail solenoid injectors for Bossch and for Densoo
Package weight: 5kg

Package includes:

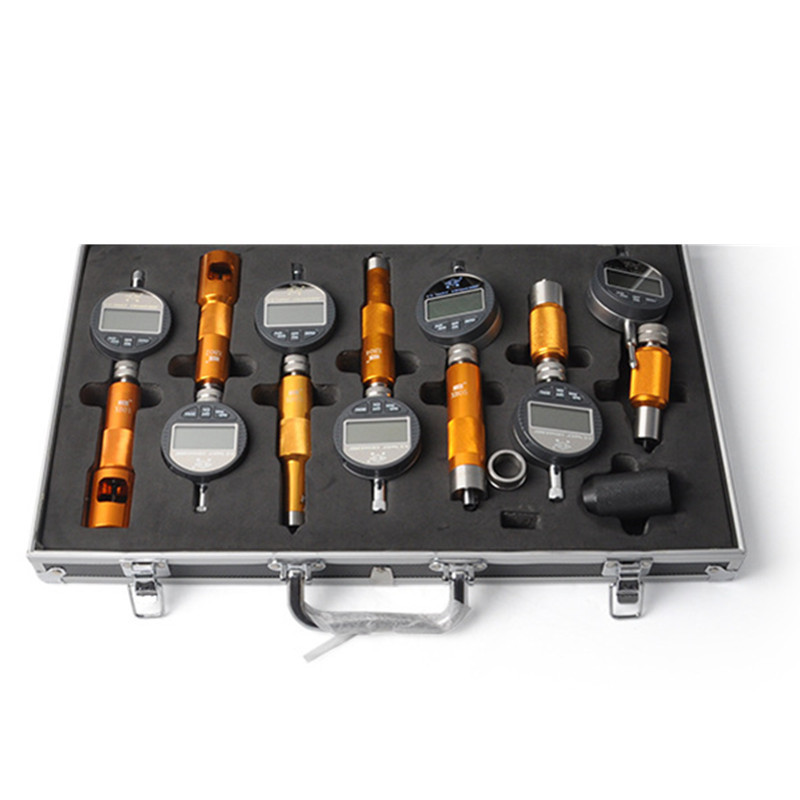

1 Set Common Rail Injector Valve Measuring Tool

Note:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow 1-2cm measuring deviation due to manual measurement. Thank you!
