Quick Details
-
Network:
-
cable, wired
-
Installation:
-
Ceiling mounted
-
Detection Angle:
-
360°
-
Power supply:
-
DC 9-16V
-
Working Current:
-
18mA@DC12V
-
Detection Distance:
-
8m at 2.5m or 12m at 3.6m
-
Alarm output:
-
NO. NC
-
Output relay:
-
9@15V DC,18mA maximum
-
Detection speed:
-
0.2 @ 7m/sec
-
LED:
-
RED LED,ON for 3 seconds
-
Dimensions (mm):
-
Diameter 105mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Paradox
-

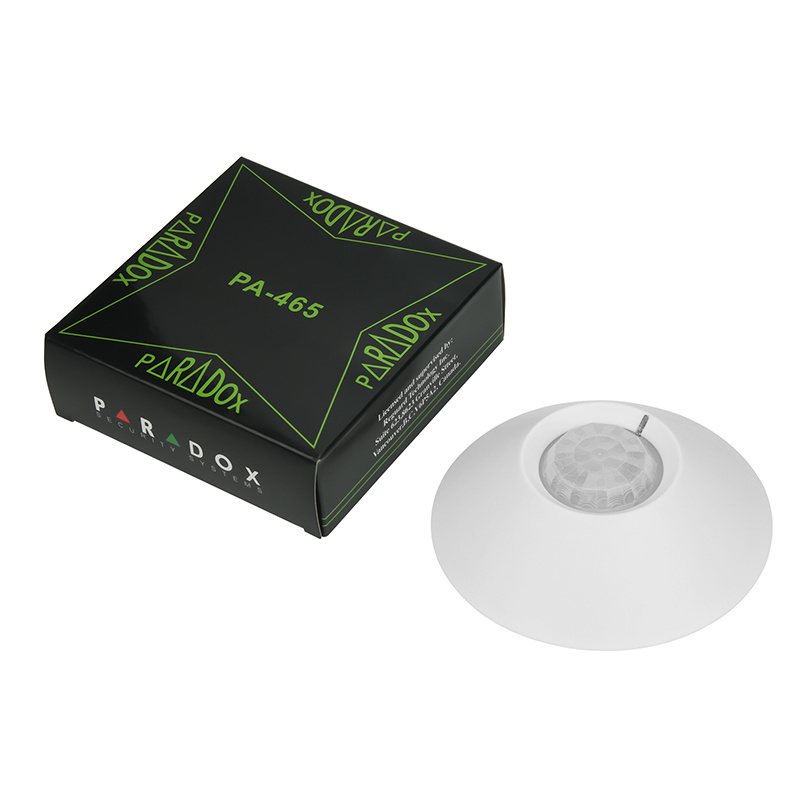

Model Number:
-
PA-465
-
Network:
-
cable, wired
-
Installation:
-
Ceiling mounted
-
Detection Angle:
-
360°
-
Power supply:
-
DC 9-16V
-
Working Current:
-
18mA@DC12V
-
Detection Distance:
-
8m at 2.5m or 12m at 3.6m
-
Alarm output:
-
NO. NC
-
Output relay:
-
9@15V DC,18mA maximum
-
Detection speed:
-
0.2 @ 7m/sec
-
LED:
-
RED LED,ON for 3 seconds
-
Dimensions (mm):
-
Diameter 105mm
Product Description
|
Place of Origin
|
China.Guangdong
|
|
Model Number
|
PA-465
|
|
Type
|
Wired Ceiling Mounted
|
|
Detection angle
|
360 degree
|
|
Power supply
|
9-16V DC
|
|
Current
|
18mA (Standby)
|
|
Installation height
|
2.2m~4.5m (Recommend 2.5 ~3.6m)
|
|
Coverage area
|
8m at 2.2m, 12m at 4.5m / 360 degree
|
|
Alarm time
|
3s
|
|
Output
|
NO, NC
|
|
Alarm output
|
28VDC /100mA
|
|
Detection speed
|
0.2M/S to 3.5M/S
|
|
Working Temperature
|
-10℃～+50℃(14°F～122°F)
|
|
Humiity
|
95% (RH), No condensation
|
Specification
Packing & Delivery
White Box ( Regular order )or Color Gift Box(For OEM/ODM order)
Corrugated Paper Carton.
