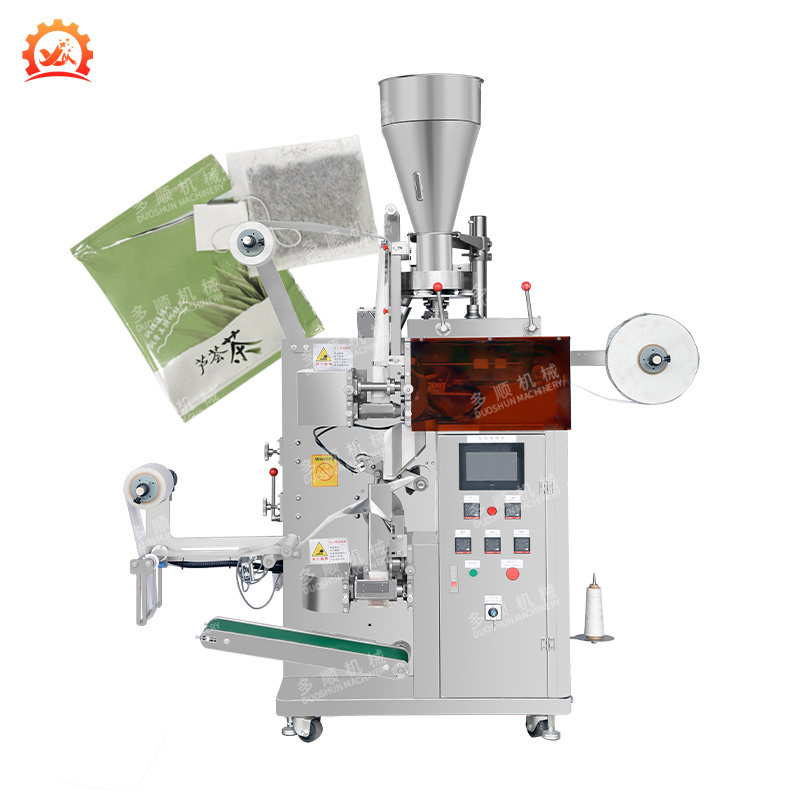

DCK-18 High Speed Custom Service Automatic Inner And Outer Tea Bag Packing Machine

DCK-18 High Speed Custom Service Automatic Inner And Outer Tea Bag Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7600

≥3 Sets

US $7300

≥5 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 450

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: DUOSHUN

Dimension(L*W*H):: 1750*740*1950mm

Product name:: Bag Packing Machine

Name:: Vertical Automatic Packaging Machine

Bag type:: Three Side Sealing

Usage:: Bag Making

Main Function:: Weighing Forming Filling Sealing

Machine type:: Automatic Bag Forming Filling Sealing Machine

Keyword:: Packaging Machinery Equipment

Packing speed:: 30-40 Bags/min

Film material:: Hot Seal Film

Automaticity:: Full-automatic

Quick Details

Function:: FILLING, Wrapping, Labeling, Sealing, Gluing, SLITTING

Packaging Type:: Bags, Film, Foil, Pouch

Packaging Material:: Plastic, Paper, Metal

Weight (KG):: 450

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: DUOSHUN

Dimension(L*W*H):: 1750*740*1950mm

Product name:: Bag Packing Machine

Name:: Vertical Automatic Packaging Machine

Bag type:: Three Side Sealing

Usage:: Bag Making

Main Function:: Weighing Forming Filling Sealing

Machine type:: Automatic Bag Forming Filling Sealing Machine

Keyword:: Packaging Machinery Equipment

Packing speed:: 30-40 Bags/min

Film material:: Hot Seal Film

Automaticity:: Full-automatic

- Factory Area -

More than 20,000 m ² area.

- Quantity in Stock -

More than 5,000 sets .

- Team Power -

More than 300 employees .

- Monthly Yield -

More than 2,000 sets .

- Established Time -

More than 20 years .

- Monthly Sales -

More than 1,000 sets .

Product Model	DCK-18
Production Capacity	30-40bag/min
Thread	√
Label size	2025/2020mm
Inner bag size(custom)	L:50-75mm w:45-80mm
Outer bag size(custom)	L:80-120mm w:75-95mm
Voltage	220V 50Hz 3700W
Machine Dimensions	17507401950mm
Machine Weight	450kg

Product Application

Product Description

Diagram 1

1. packaging film (inner bag)

2. rotary feeder

3. sealing device ( inner bag )

4. mechanical arm

5. packaging film (outer bag)

6. sealing device (outer bag)

7. belt

8. feeding storage hopper

9. feeding controller

10. cutting controller

11. label roll

12. control panel

13. thread roll (inner)

Diagram 2

1. touch screen

2. labeling

3. up horizontal sealing

4. start/stop

5. main switch

6. Indicator light

7. up vertical sealing

8. down vertical sealing

9. down horizontal sealing

10. urgent stop switch

Feeding Hopper :

Big capacity hopper, made of SUS304 material. Food grade, easy to maintain.

Feeding Tray:

Measuring cup type design is to make the feeding evenly. Moreover, the feeding speed is very fast.

Former:

The size of the former can be customized. It determines the width of final product.

Mechanical Arm :

Move the inner bag into the outer bag flexibly. Full automatic working.

Sealing Device:

First vertically seal, then horizontally seal. Various hot sealing materials are allowed.

Conveyor :

Finished bags fall to the belt, and convey out. Durable and stable.

Cursor:

If the film is printed, the cursor help locate the track point, so each picture will be in the right position.

Product Parameter

Product Model	DCK-10	DCK-11	DCK-18
Production Capacity	40-60bag/min	40-80bag/min	30-40bag/min
Thread	√	√	√
Label size	×	2025/2020mm	*2025/2020mm*
Inner bag size(custom)	L:50-75mm w:45-80mm	L:40-110mm w:30-80mm	L:50-75mm w:45-80mm
Outer bag size(custom)	×	×	L:80-120mm w:75-95mm
Voltage	220V 50Hz 1600W	220V 50Hz 1500W	220V 50Hz 3700W
Machine Dimensions	11006401850mm	17906001780mm	*17507401950mm*
Machine Weight	350kg	350kg	450kg
