Quick Details
-
Displacement:
-
50CC
-
Engine Type:
-
4-Stroke
-
Power:
-
200 - 350W
-
Voltage:
-
36V
-
Motor:
-
Brushless
-
Condition:
-
New
-
Product Name:
-
Alpha Motorcycle 50cc
-
Color:
-
Optional
-
Wheel Base(mm):
-
1175
-
Net Weight(kg):
-
85
-
Max.Load(kg):
-
150
-
Spark Plug:
-
A7TC
-
Spark Plug Gap:
-
0.6-0.8
-
Front Tyre Size:
-
2.25-17
-
Rear Tyre Size:
-
2.50-17
-
vCompression Ratio:
-
8.8:1
-
Certification:
-
CCC
-
Type:
-
Street Motorcycle
-
Brake(F/R):
-
Drum/ Drum
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Fuel:
-
Gas / Diesel
-
Max. Speed:
-
40 - 60km/h
-
Displacement:
-
50CC
-
Engine Type:
-
4-Stroke
-
Power:
-
200 - 350W
-
Voltage:
-
36V
-
Motor:
-
Brushless
-
Condition:
-
New
-
Product Name:
-
Alpha Motorcycle 50cc
-
Color:
-
Optional
-
Wheel Base(mm):
-
1175
-
Net Weight(kg):
-
85
-
Max.Load(kg):
-
150
-
Spark Plug:
-
A7TC
-
Spark Plug Gap:
-
0.6-0.8
-
Front Tyre Size:
-
2.25-17
-
Rear Tyre Size:
-
2.50-17
-
vCompression Ratio:
-
8.8:1
-
Certification:
-
CCC
-
Type:
-
Street Motorcycle
-
Brake(F/R):
-
Drum/ Drum

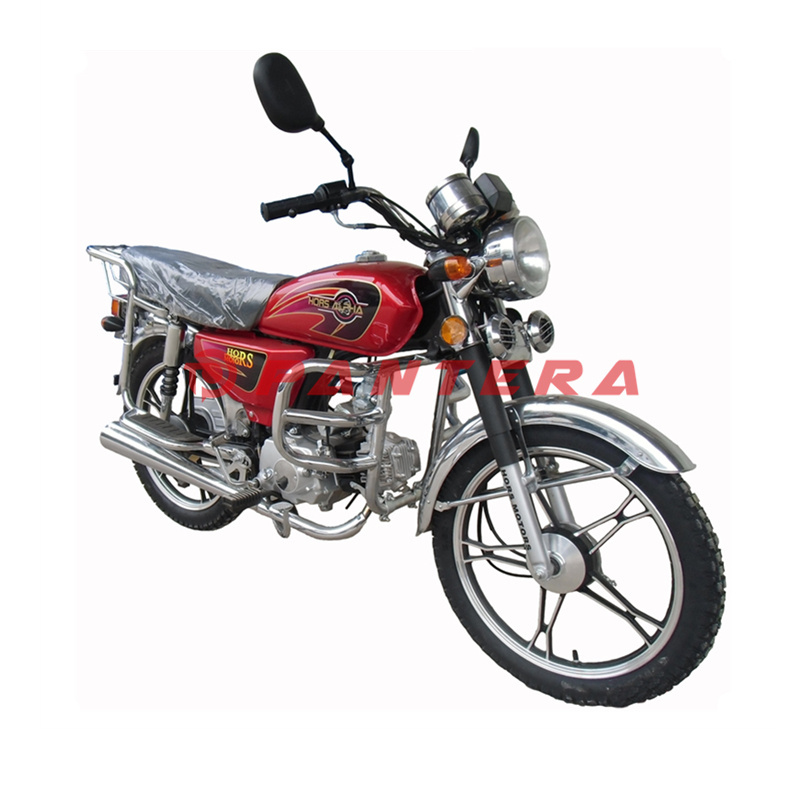

Mini Gasoline Alpha Street Motorcycle Moped with 50cc 70cc Engine
Overview
Different Angles
Details
| Specification: | |
| Wheel Base(mm) | 1175 |
| Net Weight(kg) | 85 |
| Max.Load(kg) | 150 |
| Spark Plug | A7TC |
| Spark Plug Gap |
0.6-0.8
|
| Front Tyre Size | 2.25-17 |
| Rear Tyre Size | 2.50-17 |
| Compression Ratio | 8.8:1 |
| Standard Power(kw/r/min) | 1.6/7500 |
| Max.Torque(N.m/r/min) | 2.2/6000 |
| Max.Speed(km/h) | 60 |
| Bore×Stroke(mm) | 39.0x41.3 |
| Idle Speed(r/min) | 1500 |
| Brake Distance(30km/h) | ≤7.00m |
| Displacement(ml) | 70 |
| Climbability | ≥18o |
| Loading(CBU): | 20'GP:63units |
| 40'GP:96units | |
| 40'HQ:135untis | |
| Loading(CKD): | 40'HQ:230untis |
| 20GP' 90 |
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc to 150cc
5.Color is optional too
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
|
Note: the above spare parts packaged separately, carton packaging, standard mark |
|
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
