Quick Details
-
Weight:
-
4100 kg
-
Pipe diameter(ID):
-
600mm
-
Pipe diameter(OD):
-
750mm
-
Torque:
-
34KN.M
-
Charge pump Motor power:
-
5.5KW
-
Discharge pump Motor power:
-
11KW
-
Injection pump Motor power:
-
4KW
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NEWINDU
-
Dimension(L*W*H):
-
770*3200mm
-
Weight:
-
4100 kg
-
Pipe diameter(ID):
-
600mm
-
Pipe diameter(OD):
-
750mm
-
Torque:
-
34KN.M
-
Charge pump Motor power:
-
5.5KW
-
Discharge pump Motor power:
-
11KW
-
Injection pump Motor power:
-
4KW
-
Certification:
-
ISO

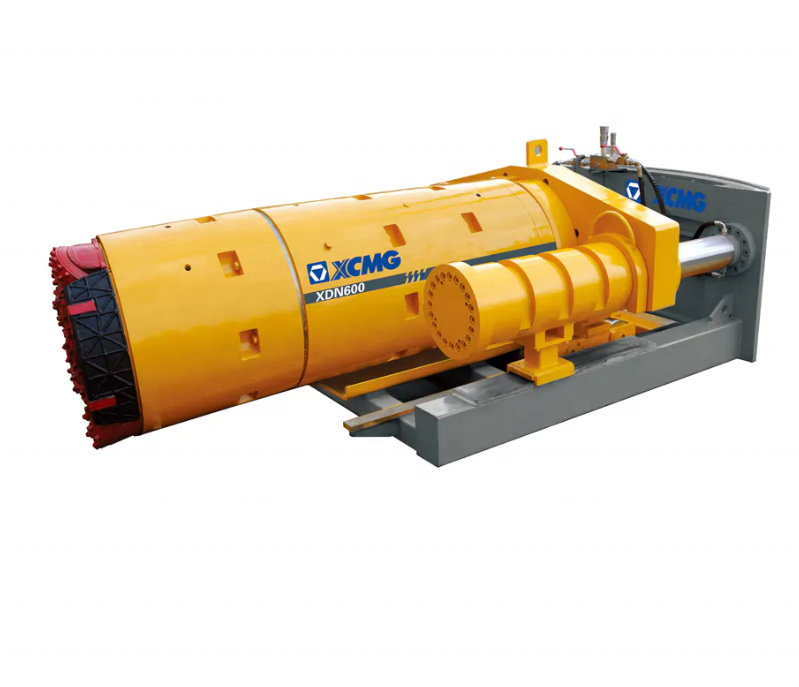

600mm XDN600 Micro Tunnel Boring Machine for Sale
Please Contact
Sales Manager
Aring Zhou
Wechat/Whatsapp: +8615855426352
Product Description
1.High reliability:Hydraulic overload protection system is reliable and safer,and
the water proof is good.
2.Great geology adaptability:Revolution can be adjusted without grade and different cutting wheels are designed for different ground conditions.So it makes great adaptability.
3.High rock breaking efficiency:The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing which also makes rock pieces easier to discharge.
4.Good construction operability:Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a balance of jacking speed and delivery of slurry flow.
Main Parameters
| Description | Unit | Parameter value | |
| Pipe diameter | ID | mm | Φ600 |
| OD | Φ750 | ||
| Outer diameter× length | mm | Φ770×3200 | |
| Rotation system | Motor power | kW | 37 |
| Torque | kN.m | 34 | |
| Revolution | r/min | 12 | |
| Roll correction system | Force per cylinder | kN | 217 |
| Cylinder number | EA | 3 | |
| Steering angle | ° | 3 | |
| slurry line diameter | mm | Φ75 | |
| Weight | kg | 4100 | |
| Jacking system Motor power | kW | 15 | |
| Jacking cylinders | Thrust | kN | 1000 |
| Number | EA | 2 | |
| Stroke | mm | 760×2 | |
| Launch shaft dimensions | mm | Φ2900 | |
| Reception shaft dimensions | mm | Φ1900 | |
| Charge pump Motor power | kW | 5.5 | |
| Discharge pumpMotor power | kW | 11 | |
| Injection pump Motor power | kW | 4 | |
Product Image
