Product Description

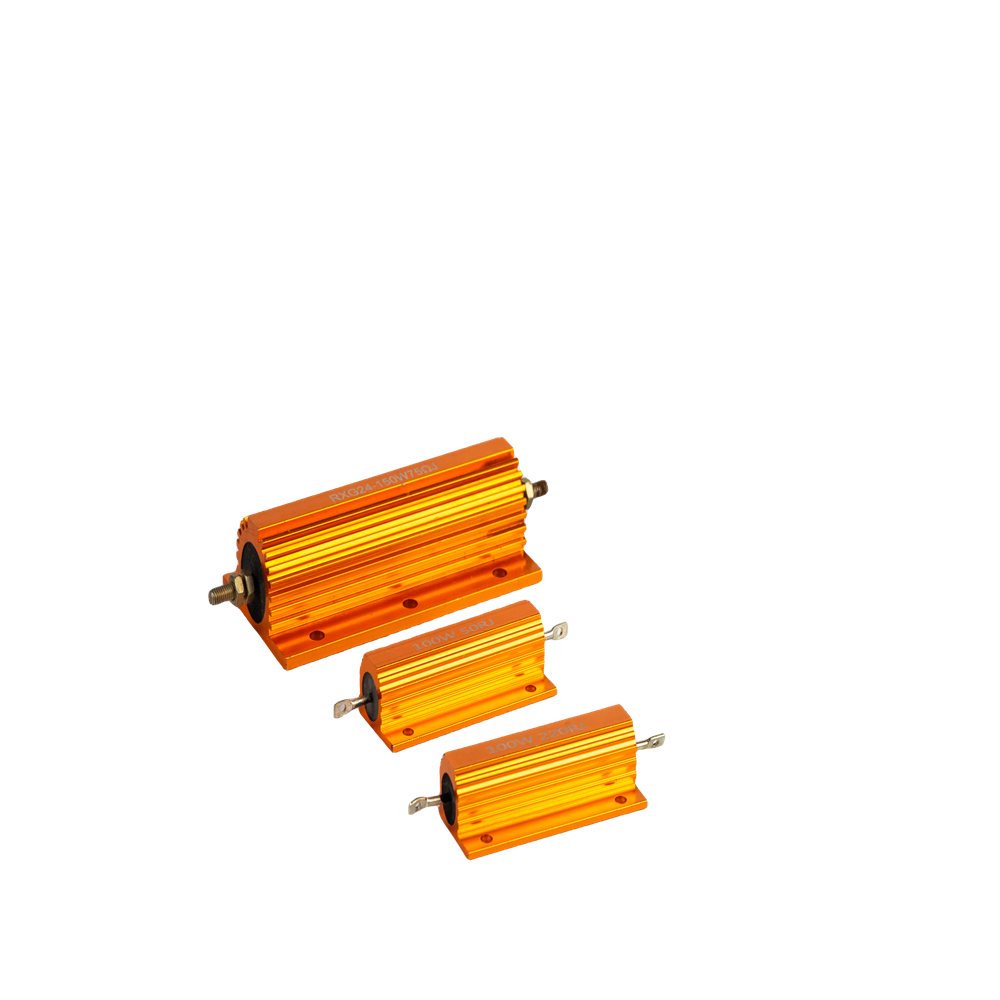

The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature
resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use
.
- Product Details
- {{item.text}}
Quick Details
-
Specification:
-
150W
-
Packaging Type:
-
Paper package
-
Application:
-
frequency converter, elevator, stage audio
-
Package / Case:
-
aluminum case
-
Series:
-
RX24
-
Features:
-
Wirewound resistors, can do with inductive model
-
Size / Dimension:
-
60*21*15
-
Description:
-
RX24 aluminum housed resistor
-
Resistance:
-
0.1R~40KR, 0.1R~40KR
-
Resistance Tolerance:
-
5%
-
Brand name:
-
BONENS
-
Composition:
-
Wirewound
-
Coating, Housing Type:
-
Aluminum
-
Temperature Coefficient:
-
100PPM
-
Lead Style:
-
terminals
-
Operating Temperature:
-
-55℃~+125℃
-
Rated Power:
-
100W
-
Color:
-
golden
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
RX24
-
Specification:
-
150W
-
Packaging Type:
-
Paper package
-
Application:
-
frequency converter, elevator, stage audio
-
Package / Case:
-
aluminum case
-
Series:
-
RX24
-
Features:
-
Wirewound resistors, can do with inductive model
-
Size / Dimension:
-
60*21*15
-
Description:
-
RX24 aluminum housed resistor
-
Resistance:
-
0.1R~40KR, 0.1R~40KR
-
Resistance Tolerance:
-
5%
-
Brand name:
-
BONENS
-
Composition:
-
Wirewound
-
Coating, Housing Type:
-
Aluminum
-
Temperature Coefficient:
-
100PPM
-
Lead Style:
-
terminals
-
Operating Temperature:
-
-55℃~+125℃
-
Rated Power:
-
100W
-
Color:
-
golden
|
Test items
|
Standard
|
Test Methods
|
|
|
|
Short time overload
|
±5%,±2%,±1%
|
2.5 times power/5 seconds
|
|
|
|
Temperature coefficient
|
±200PPM/°C
|
Test temperature:indoors temp.100°C
|
|
|
|
Resistance to solder heat
|
±1%
|
Solder temp:350±10°C time:3 seconds
|
|
|
|
Dielectric withstanding voltage
|
No breakdown or flashover
|
500V for 60 seconds
|
|
|
|
Humidity Load Life
|
±0.5%
|
1.5hr ON,0.5hr OFF at 40±2°C，90-95&RH for 1000hrs
|
|
|
|
Load Life
|
±2.0%
|
Rated voltage 1.5hrON,0.5hr OFF at 25°C for 1000hrs
|
|
|
|
Solderability
|
At least 95% coerage
|
235±5°C for 2±0.5 seconds
|
|
|
S
i
Chuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state. Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.
We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith! Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.
We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith! Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.
1. Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand. All products are characterized by high performance and competitive
price.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer,Resistor,EMI Filter,Knob,Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,and
ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
A1: We are a factory, we can guarantee our price is first-hand. All products are characterized by high performance and competitive
price.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer,Resistor,EMI Filter,Knob,Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,and
ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
