- Product Details
- {{item.text}}
Quick Details
-
Rated Loading Capacity:
-
2-10tons
-
Rated Lifting Moment:
-
2.0
-
Max. Lifting Height:
-
1.2-25m
-
Span:
-
4-19m
-
Place of Origin:
-
Hebei
-
Brand Name:
-
LD
-
Showroom Location:
-
None
-
Product name:
-
Spider Crawler Crane
-
Color:
-
green
-
Type:
-
Mini Crane Used
-
Applicaton:
-
Cargo Handling Cranes
-
Specification:
-
2.95T*l.3m
-
Power Source:
-
3 Phase 380V 50hz
-
Max. lifting capacity:
-
10 Tons
-
Year:
-
1 Year
Quick Details
-
Weight (KG):
-
2600
-
Marketing Type:
-
New Product 2022
-
Application:
-
Construction site
-
Rated Loading Capacity:
-
2-10tons
-
Rated Lifting Moment:
-
2.0
-
Max. Lifting Height:
-
1.2-25m
-
Span:
-
4-19m
-
Place of Origin:
-
Hebei
-
Brand Name:
-
LD
-
Showroom Location:
-
None
-
Product name:
-
Spider Crawler Crane
-
Color:
-
green
-
Type:
-
Mini Crane Used
-
Applicaton:
-
Cargo Handling Cranes
-
Specification:
-
2.95T*l.3m
-
Power Source:
-
3 Phase 380V 50hz
-
Max. lifting capacity:
-
10 Tons
-
Year:
-
1 Year
Product Overview

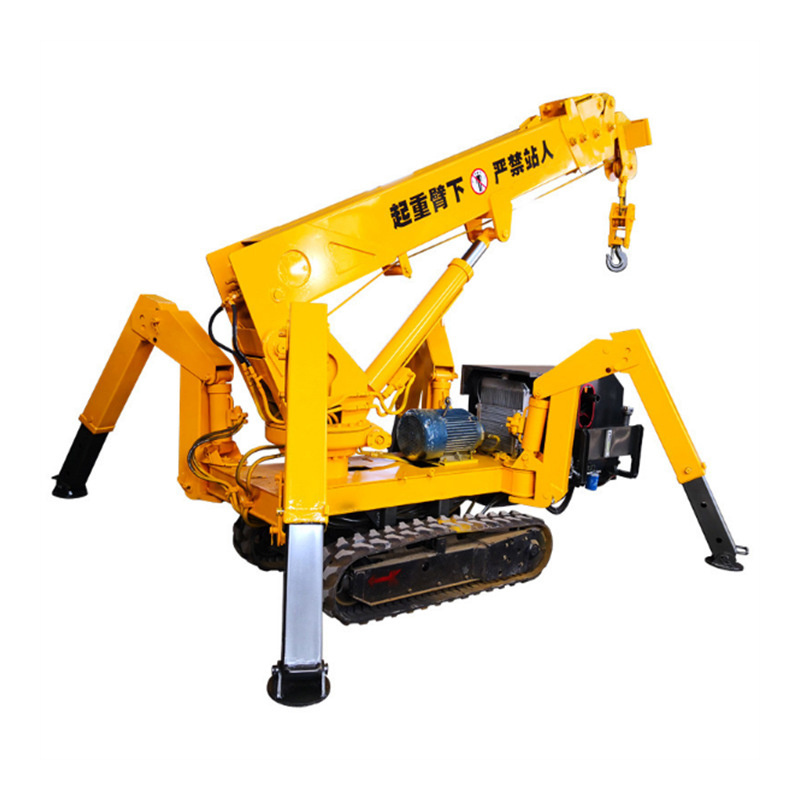

Mini spider crane
Lifting operations can be carried out in narrow spaces, and the legs can retract and walk with loads
Performing high-altitude operations, 360 degree rotation, hydraulic support
Multiple usage ranges, adaptable to various scenarios and terrains, safe, convenient, and easy to operate. The boom rotates 360 degrees, and the boom retracts and retracts automatically.
Details Images
Hydraulic outrigger: When operating the outrigger, it occupies a small space and can be freely combined and adjusted at an angle
.
High strength and wear-resistant hook: With sufficient toughness and strength, it is safe and durable during operation
.
Track chassis: Rubber tracks, suitable for walking on difficult and complex terrains
.
Walking shrinkage: The shrinkage area is small during walking, making it easy to enter and exit any door railing
.
Product parameters
|
Model
|
1.2 ton spider crane
|
|
|
|
|||
|
Overall dimensions
|
length 2095 * width 600 * height 1393mm
|
|
|
|
|||
|
Operation radius
|
5M * 0.3ton
|
|
|
|
|||
|
Ground lift
|
5.8M * 0.8ton
|
|
|
|
|||
|
Telescopic device
|
4-section lifting arm, U-shaped high-strength manganese
|
|
|
|
|||
|
Support leg form
|
manual rotation+oil pressure automatic support (two legs)
|
|
|
|
|||
|
Standard configuration
|
engine power
|
|
|
|
|||
|
Engine
|
gasoline
|
|
|
|
|||
|
Model
|
3 ton spider crane
|
|
|
|
|||
|
Overall dimensions
|
length 2830 * width 800 * height 1650mm
|
|
|
|
|||
|
Operation radius
|
7.8M * 0.2ton
|
|
|
|
|||
|
Ground lift
|
9.2M * 0.8ton
|
|
|
|
|||
|
Telescopic device
|
5-section lifting arm, U-shaped high-strength manganese
|
|
|
|
|||
|
Support leg form
|
manual rotation+oil pressure automatic support (two legs)
|
|
|
|
|||
|
Standard configuration
|
diesel engine and electric motor (dual power)
|
|
|
|
|||
|
Engine
|
Changchai
|
|
|
|
|||
|
Model
|
5 ton spider crane
|
|
|
|
|||
|
Overall dimensions
|
4500 length * 1360 width * 2100mm height
|
|
|
|
|||
|
Operation radius
|
15M * 0.2ton
|
|
|
|
|||
|
Ground lift
|
16M * 0.8ton
|
|
|
|
|||
|
Telescopic device
|
5-segment lifting arm
|
|
|
|
|||
|
Support leg form
|
manual rotation+oil pressure automatic support
|
|
|
|
|||
|
Standard configuration
|
diesel engine and electric motor (dual power)
|
|
|
|
|||
|
Engine
|
Yunnei
|
|
|
|
|||
|
Model
|
8 ton spider crane
|
|
|
|
|||
|
Overall dimensions
|
length 4950 * width 1560 * height 2235mm
|
|
|
|
|||
|
Operation radius
|
16M * 0.2ton
|
|
|
|
|||
|
Ground lift
|
17M * 0.9ton
|
|
|
|
|||
|
Telescopic device
|
5-segment lifting arm
|
|
|
|
|||
|
Support leg form
|
manual rotation+oil pressure automatic support (two legs)
|
|
|
|
|||
|
Standard configuration
|
diesel engine and electric motor (dual power)
|
|
|
|
|||
|
Engine
|
conventional diesel
|
|
|
|
|||
