Quick Details
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
1.5
-
Lamp Luminous Flux(lm):
-
60
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
China
-
Brand Name:
-
LUMIN
-
Installation:
-
Suspended, Embeded,Recessed
-
LGP material:
-
4T CHIMEI PMA
-
Diffuser material:
-
fire resistense PS
-
Dimension:
-
295x295X18mm
-
Power Factor:
-
>0.9
-
Color tolerance adjustment:
-
SDCM3
-
UGR:
-
22
-
Dimmable:
-
TRIAC,DALI,0-10V,WIRELESS
-
LED Driver:
-
lifud
-
Product name:
-

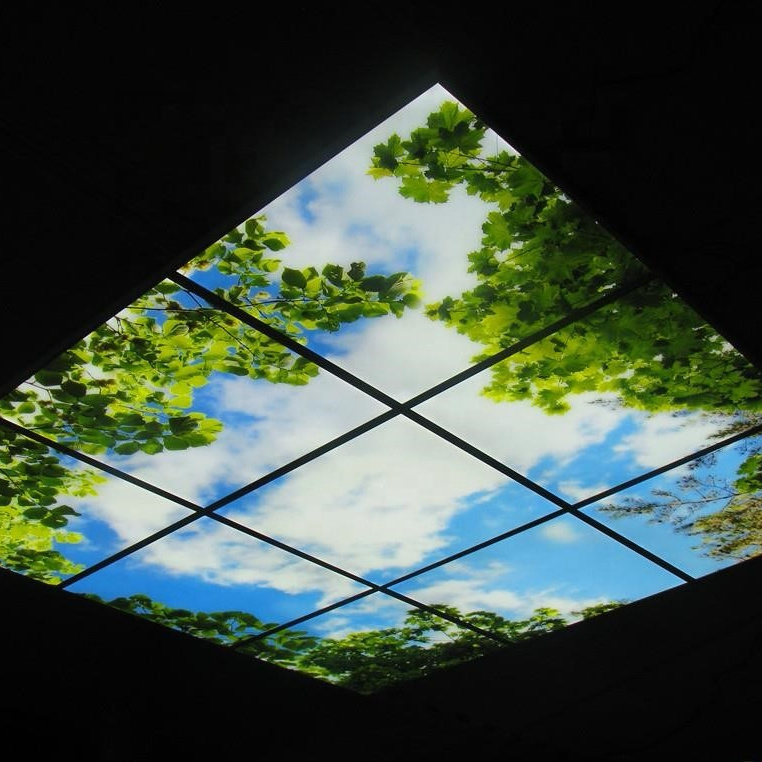

30x30 cct dimmable artificial skylight recessed led ceiling panel
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
60
-
Application:
-
Home Office
-
Lamp Body Material:
-
Aluminum Alloy
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
1.5
-
Lamp Luminous Flux(lm):
-
60
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
China
-
Brand Name:
-
LUMIN
-
Installation:
-
Suspended, Embeded,Recessed
-
LGP material:
-
4T CHIMEI PMA
-
Diffuser material:
-
fire resistense PS
-
Dimension:
-
295x295X18mm
-
Power Factor:
-
>0.9
-
Color tolerance adjustment:
-
SDCM3
-
UGR:
-
22
-
Dimmable:
-
TRIAC,DALI,0-10V,WIRELESS
-
LED Driver:
-
lifud
-
Product name:
-
30x30 cct dimmable artificial skylight recessed led ceiling panel
30x30 cct dimmable artificial skylight recessed led ceiling panel
Specification
| Model | LM-P33-18W-SKY |
| Power | 18W |
| Luminous | 900ml |
| CRI | 80 |
| Dimmable Solution | DALI,0-10V,Triac |
| Lifetime | 50000 hours |
| IP Rating | IP40 |
| Lamp Body material | Aluminue |
| Dimension | 295x295x10mm |
| Color temperature | 3000k,4000k,6000k |
Features
(1) 18W square LED panel light with high hardness aero aluminum housing matrial 6063.
(2) 10mm super slim design
(3) save 80% energy over than fluorescent tube.
(4) 50000 hours desighed lifespan, 6 times than fluorescent tube.
(5) Flicker free and instant start.
(6) LM-80 listed LEDs realized high luminous efficacy&low optical decay.
(7) High transmittance PMMA light guide plate& optical fire-resistant,PC diffuser.
(8) IP rates 40,used indoors.
(9) Lifud drivers have high power supply ENEC listed.
(10) Good heat dissipation,weighed 400G.
(11) Dimming solution can be customized.
Key Features
1. Light Therapy
Lumin's blue LED technology help people relaxtheir bad emotion due to heavy life, study, andwork pressure.
2. Biophilic Design
Lumin's all design inspiring comes from the realnature, blue sky, white cloud, sunshine, forest,flowers, trees, sea,etc. by real light design.
3. Easy to Install
It's mounted on the surface wall, ceiling system,also can be suspended through differentmounting kit accessories.
4. Reliable
lt's produced in Lumin's ISO9001 standard
workshop in China, the products are certified byCE, RoHs, UL.
5. Leading Industry Design
The design is different from the regular one withframe,the photos look much better.
6. Custom Design
Lumin accept customers' design on size, photos,parameters of their own.
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.
Packaging & Shipping
One panel in an inner box ,one master carton contain 5 inner boxes.
Inner carton size:74CM*68*CM*3.5cm
Inner carton GW:4.5KG
Master carton size:74.5CM*68.5CM*22CM
Master carton GW:23.5KG
Shipping by Fedex,DHL,TNT.Air,shipping is also avaliable
Application
