Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal

Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal

FOB Reference Price: Get Latest Price
≥30 Pieces
US $1
≥600 Pieces
US $0.95
≥900 Pieces
US $0.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Daiertek
Model Number:
PBS-24B-4, PBS-24B-4
Certification:
CE,Rohs, CE,Rohs
Terminal:
2 Pin Solder Termianl
Mounting hole diameter:
12mm
Function:
Momentary
Button color:
Silver
Product type:
Pedal Foot Switch
OEM&ODM:
YES

Quick Details

Protection Level:
IP67
Max. Current:
4A, 4A
Max. Voltage:
250VAC, 250VAC
Place of Origin:
Zhejiang, China
Brand Name:
Daiertek
Model Number:
PBS-24B-4, PBS-24B-4
Certification:
CE,Rohs, CE,Rohs
Terminal:
2 Pin Solder Termianl
Mounting hole diameter:
12mm
Function:
Momentary
Button color:
Silver
Product type:
Pedal Foot Switch
OEM&ODM:
YES
PRODUCT DESCRIPTION
ltem
PBS-24B-4 Pedal Foot Switch
Switch Function
SPST OFF-(ON)
Rating
4A 125VAC; 2A 250VAC
Contact R
20mΩ max
Insulation R
500V DC 100MΩ min
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
50000 CYCLES
PRODUCT DETAILS

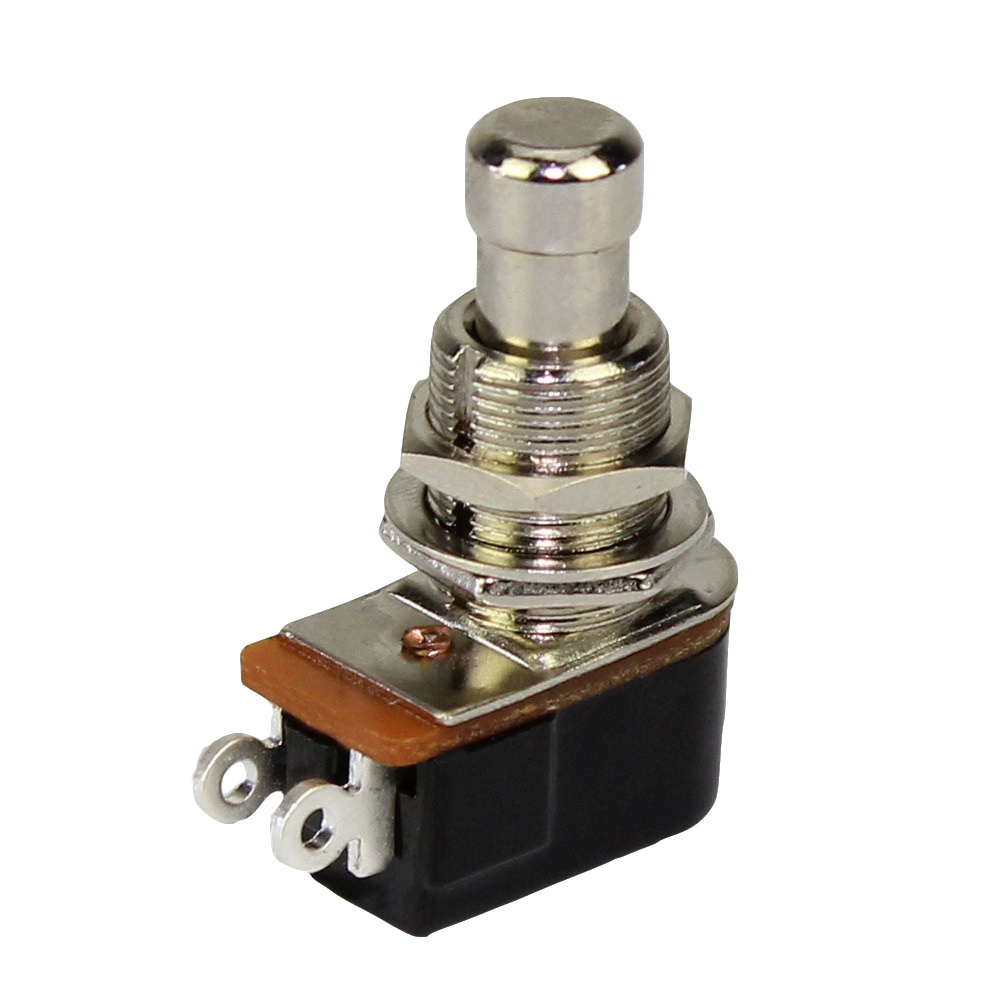

PBS-24B-4 Push button switch
Foot Switch Series:
Rating: 3A 250VAC ; 6A 125VAC
Insulation Strength:≥100MΩ
Contact Resistance:≤100MΩ
Test Voltage: ≥1500V AC/5S
Electonical Life：50,000 Cycles
Temperature: T85

Foot Switch Series:Widely used in guitar effect enclosure,volume pedal and music equipment.

More color can be choosed: Brown Red, Blue, Red, Black and Green.
WORKSHOP
Daiertek PBS-24B-4 SPST Momentary OFF-(ON) 2 PIN Push Button Foot Switch Metal Stomp Foot Switch For Guitar Effect Pedal
EXHIBITION
OUR TEAM
CERTIFICATION
TRANSPORTATION
FAQ
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.

2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.

3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.

4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.

5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.

6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.

7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.

8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
