Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
JXSC series
-
Certification:
-
ce
-
Vacuum tube material:
-
Borosilicate glass 3.3
-
Inner tank:
-
SUS304/ 2B food grade class
-
solar water heater:
-
split pressure
-
Frame:
-
Stainless steel,Alumimum alloy,Galvanized steel,and so on
-
Insulation:
-
55mm polyurethane layer
-
Heat Source:
-
Solar energy, heat pump,boiler or electric heater
-
Material:
-
SUS 304 2B SS
-
Vacuum tube:
-
58*1800/58*2100/70*2000 Three-targets
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
JXSC series
-
Certification:
-
ce
-
Vacuum tube material:
-
Borosilicate glass 3.3
-
Inner tank:
-
SUS304/ 2B food grade class
-
solar water heater:
-
split pressure
-
Frame:
-
Stainless steel,Alumimum alloy,Galvanized steel,and so on
-
Insulation:
-
55mm polyurethane layer
-
Heat Source:
-
Solar energy, heat pump,boiler or electric heater
-
Material:
-
SUS 304 2B SS
-
Vacuum tube:
-
58*1800/58*2100/70*2000 Three-targets

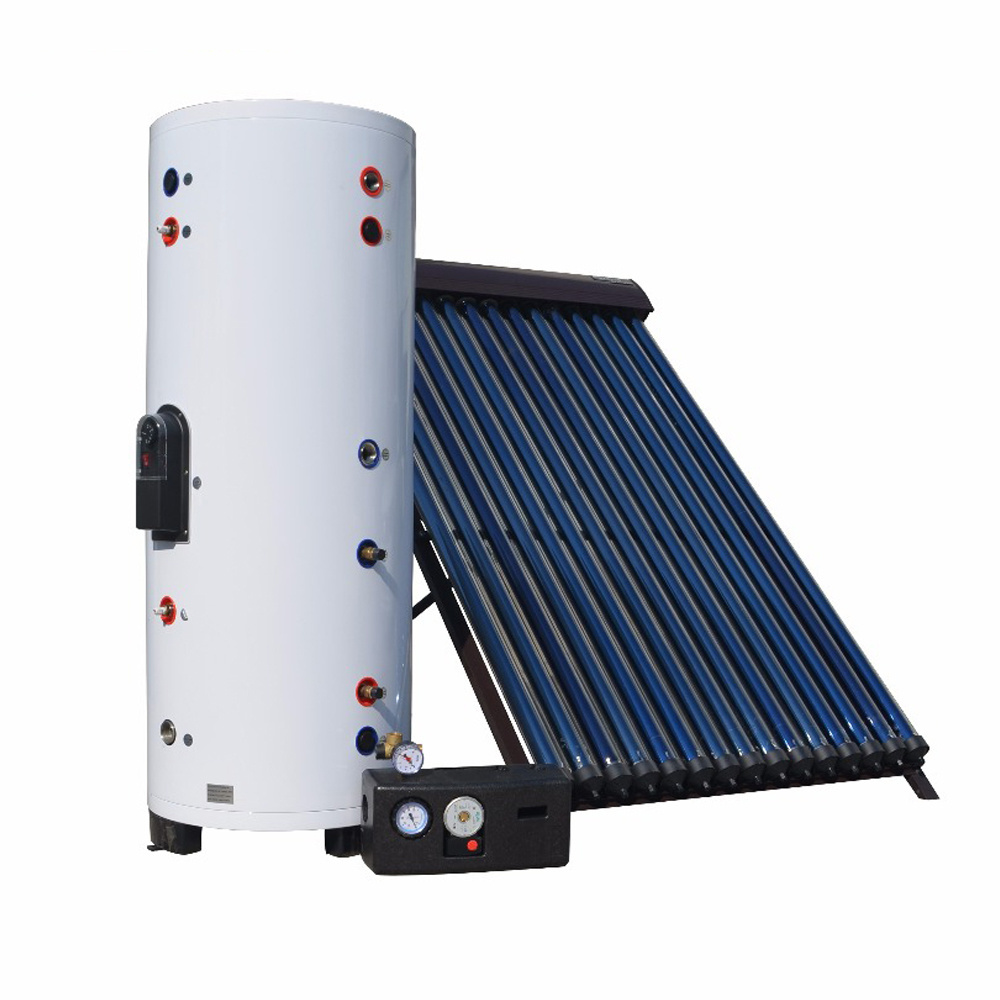

Separated Pressure Bearing System General Information
Characteristics
1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
6) The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7) M
ultifunction: Bathing, washing, domestic heating
8) Workable at anytime and enjoyable
PRODUCT STRUCTURE
Vacuum tube
S upport frame
W ater tank
WORKING PRINCIPLE
1) When the discrepant temperature of the solar collector and water tank reaches the set value, the controller shall start the circulation pump automatically.
2) The circulation pump makes heat-conducting liquid circulate automatically.
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank.
4) In case the temperature of the water tank does not reach the T max, then start the auxiliary heating device.
5) If discrepant temperature of the collector and the water tank does not reach the set value, the circulation pump shall be shut automatically.
TECHNICAL PARAMETERS & SPECIFICATIONS
|
Solar Water Tank Performance and Specification Ⅱ |
||||||
|
Tank Size(mm) |
Tank Size(mm) |
Insulation Layer |
Inner Tank Thickness |
Out Tank Thickness |
Electric Heater Power |
Packing Dimension(mm) |
|
JXDT-100L |
470 |
50mm |
1.0mm |
0.5mm |
1500W |
560*560*1200 |
|
JXDT-150L |
470 |
50mm |
1.2mm |
0.5mm |
1500W |
560*560*1550 |
|
JXDT-200L |
550 |
50mm |
1.5mm |
0.5mm |
1500W |
660*660*1500 |
|
JXDT-250L |
580 |
50mm |
1.5mm |
0.5mm |
1500W |
660*660*1600 |
|
JXDT-300L |
580 |
50mm |
1.5mm |
0.5mm |
1500W |
660*660*1800 |
|
JXDT-400L |
700 |
50mm |
2.0mm |
0.5mm |
2000W |
780*780*1700 |
|
JXDT-500L |
700 |
60mm |
2.0mm |
0.5mm |
3000W |
780*780*2050 |
|
Main Technical Parameters: |
||
|
working station
|
1.Dimension:465×165×113mm |
3.Power:≤3W |
|
2.Input voltage:200V~240V AC or 100V~120V AC |
4.Accuracy of temperature measuring:±1℃ |
|
|
5.Range of temperature measuring:0~99℃ |
||
|
6.Input signals:(1)1xPT1000 sensor temperature probe≤500℃,silicon cable≤280℃; |
(2)x NTC10K sensor temperature probe≤135℃,PVC cable≤105℃ |
|
|
7.Output signals:(1)1xAuxiliary heating output (Max. load current:12A) |
(2)2 x Relay output (Max. load current:3A) |
|
|
8.System design pressure:1MPa |
12.Pipeline Material:Brass |
|
|
9.Safety valve respond pressure:0.6MPa |
13.LCD-display |
|
|
10.WILO pump model:RS15/6 |
14.Range of environment temperature:-10~50℃ |
|
|
11.Screw coupling:1/2 |
15.Water protection grade:IP40 |
|
|
Main Functions: |
||
|
1.Time display |
6.Three periods of time adjustable on pipeline circulation |
|
|
2.Temperature difference circulation |
7.Three periods of time adjustable on auxiliary heating |
|
|
3.Storage tank overheating protection |
8.Three speed levels on circulation pump |
|
|
4.Emergent stop of system overheating |
9.Adjust flow rate |
|
|
5.Frost protection of pipeline and collector |
10.Display system pressure |
|
|
Pump-WILO RS15/6-Technical Parameters: |
||
|
circulation pump |
1.220V/50HZ or 110V/60HZ |
4.Largest Volume:2.5/2.5/1.5 m3/h |
|
2.Input power:93/67/46W |
5.Diameter pipe:15(outer 25mm) |
|
|
3.Lifting length:6/5/3m |
6.Weight:2.1kgs |
|
|
Expansion Vessel - Technical Parameters: |
||||||
|
Model |
JXV-5L |
JXV-8L |
JXV-12L |
JXV-18L |
JXV-24L |
JXV-36L |
|
Capacity |
5L |
8L |
12L |
18L |
24L |
36L |
|
Diameter |
150 |
210 |
270 |
270 |
270 |
350 |
|
Height |
320 |
320 |
300 |
400 |
450 |
560 |
|
Pre-charged pressure |
1.5BAR |
1.5BAR |
1.5BAR |
1.5BAR |
1.5BAR |
1.5BAR |
|
Max Pressure |
10BAR |
1BAR |
10BAR |
10BAR |
10BAR |
10BAR |
|
Max Temperature |
99 ℃ |
99 ℃ |
99 ℃ |
99 ℃ |
99 ℃ |
99 ℃ |
|
Connector size |
G1",G3/4" |
Gl",G3/4" |
Gl",G3/4" |
G1",G3/4" |
Gl",G3 |
G1",G3/4" |
