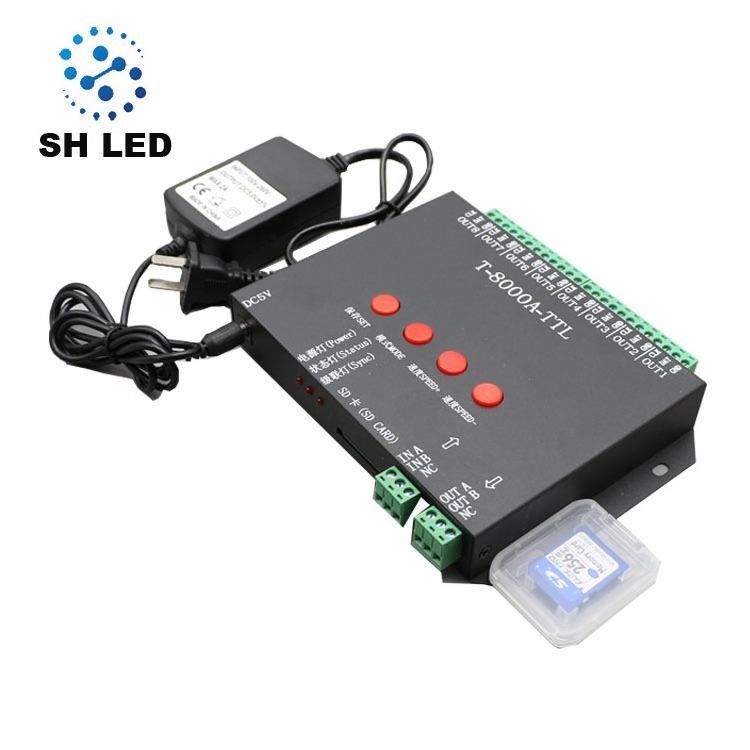

Custom professional 8 port output dmx SD card led rgb pixel controller t8000 for lighting project

Custom professional 8 port output dmx SD card led rgb pixel controller t8000 for lighting project

1.T-8000 A-TTL ystem features

1 . 32—256 Gray level , Support software Gamma correction .

2. Support the rules and special-shaped handle.

3 . Eight --port output , every port can support 512-1024 pixels .

4. Off-line (SD Card) control, c an be multiple controllers used in combination , play back content stored in the SD card.

5 . T- 8 000 A-TTL store a maximum of 16 programs , copy multiple files to the SD card in order,after formatting the SD card as “FAT” format.

6. The program must be named in orders , just as : 00_1.led, 01_1.led, 02_1.led.

7. Compatible with single and dual ICs, if you control a single line IC LED lights, without being connected to the CLK line.

8. New T-8000A-TTL have a screen, t he controller can be encrypted to limit the times of use.

NOTE : 1.When T-8000A --TTL controller control less than 512 lamps the frame rate can reach 30fps. When T-8000A -TTL controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.

Trouble shooting :

Question 1 : After power , the T- 8000S ERROR indicator has been flashing without display output

answer : The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:

1) SD card is empty, with no effect file.

2) . The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file *led.

3). SD card did not format to FAT before copy effect files.

4) Please check the supply power voltage, the controller can be individually powered to exclude power reasons

5) Changing the SD card and then test to exclude the possibility of a bad SD card

Question 2 : The controller is powered on, the indicator is normal, but the lamps have no effect change

Answer: The reasons for this are as follows:

1) Check if the lamp ′s signal line and the controller connected correctly

2) If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lamp ′s and the controller′s ground wire together

3) Check if the model chose during making display files on the SD card match the chips used in the lighting

Question 3 : Controller and light connected, after. Lamps flicker. Controller indicator to normal.

Answer :1) The ground wire is not connected between the controller and lighting.

2)The file in SD card is bad, Chip model does not match with the actual .

3)Insufficient power supply .

Question 4 : The SD card can not be formatted.

Answer :1) First make sure the SD card on the side of the protection switch is already open.

2) SD card reader is broken

3) Do all of this can’t deal with the question. Change the SD card tests again.
