Quick Details
-
Brand Name:
-
ZJBENY
-
Model Number:
-
BDM-125
-
Max. Current:
-
125A
-
Pole no.:
-
2P
-
Max current:
-
125A
-
Max voltage:
-
500V
-
Function:
-
Overload,Short circuit
-
Tripping type:
-
Thermal magnetic type
-
Ingress protection:
-
All sides IP40,Connection terminal IP20
-
Color:
-
Black
-
Certification:
-
SAA CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZJBENY
-
Model Number:
-
BDM-125
-
Max. Current:
-
125A
-
Pole no.:
-
2P
-
Max current:
-
125A
-
Max voltage:
-
500V
-
Function:
-
Overload,Short circuit
-
Tripping type:
-
Thermal magnetic type
-
Ingress protection:
-
All sides IP40,Connection terminal IP20
-
Color:
-
Black
-
Certification:
-
SAA CE
BDM series PV DC moulded case circuit breaker is developed for solar energy storage application.
To avoid the battery system strings short circuit failure.
Specifications:
1.Poles: 2P
2.Max rated current: 125A
3.Rated operating voltage:500V
4.Standard:IEC/EN60947-2
5.Cetification:TUV/CE/SAA
Battery Energy Storage System DC circuit breaker for string protection.
ZJBENY is the first manufacturer meets the standard.
We offer the leading DC isolators fully compliant with AS60947.3:2018 DC-PV2 and IEC60947.
500V True DC for battery system
Select material and higher level test for 0 failure
UV resistance and V0 flame retardant plastic material.
Good electrical insulation performance.
We test the DC isolator reliability in our lab, with the only electrical tester in China. As the electrical cycle is the most important for a DC circuit breaker.

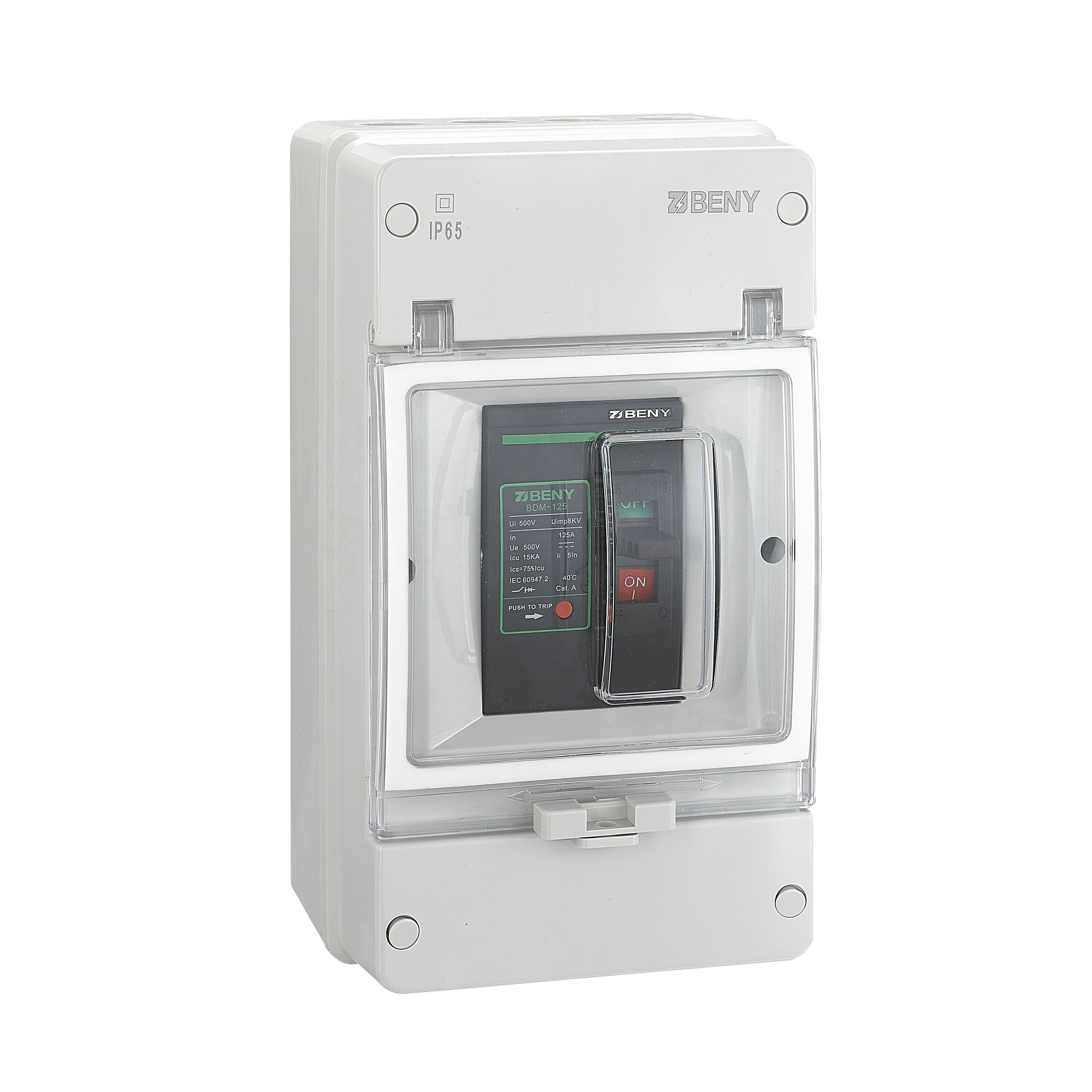

* 500Vdc 125A
* IP65 enclosure for any position mounting.
* LATI PC plastic in UV resistance and Flame retardant tech.
* 3ms arc suppression
* IEC 60947.2
* Breather valve
* Lockable transparent cover
* 5 years warranty for free replace
|
BDM-125 |
|
|
Poles |
2P |
|
Standard |
IEC60947.2 |
|
DC-21B |
|
|
Rated Operational Voltage (Ue) |
500V |
|
Mechanical Cycle |
10000 |
|
Electrical Cycle |
2000 |
|
Protection Degree |
IP65 enclosure/IP20 switch body |
|
Polarity |
No Polarity |
|
Certificate |
SAA / TUV |
