Quick Details
-
Cutting Area:
-
2000*2000
-
Control Software:
-
Ruida
-
Place of Origin:
-
China
-
Weight (KG):
-
5000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser power:
-
150w/180w/260w/280w/300w
-
Software:
-
CorelDraw/AUTOCAD/RDCAM
-
Working area:
-
2000*2000mm
-
Laser tube:
-
Beijing Reci Laser Tube
-
Format:
-
PLT,AI,DXF,BMP,DST
-
Function:
-
Cutting Engraving Non-metal Materials
-
Control:
-
RD controla/TC/ZD
-
Table:
-
knife table
-
Chiller:
-
cw6000
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
10m
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
2000*2000
-
Control Software:
-
Ruida
-
Place of Origin:
-
China
-
Weight (KG):
-
5000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser power:
-
150w/180w/260w/280w/300w
-
Software:
-
CorelDraw/AUTOCAD/RDCAM
-
Working area:
-
2000*2000mm
-
Laser tube:
-
Beijing Reci Laser Tube
-
Format:
-
PLT,AI,DXF,BMP,DST
-
Function:
-
Cutting Engraving Non-metal Materials
-
Control:
-
RD controla/TC/ZD
-
Table:
-
knife table
-
Chiller:
-
cw6000

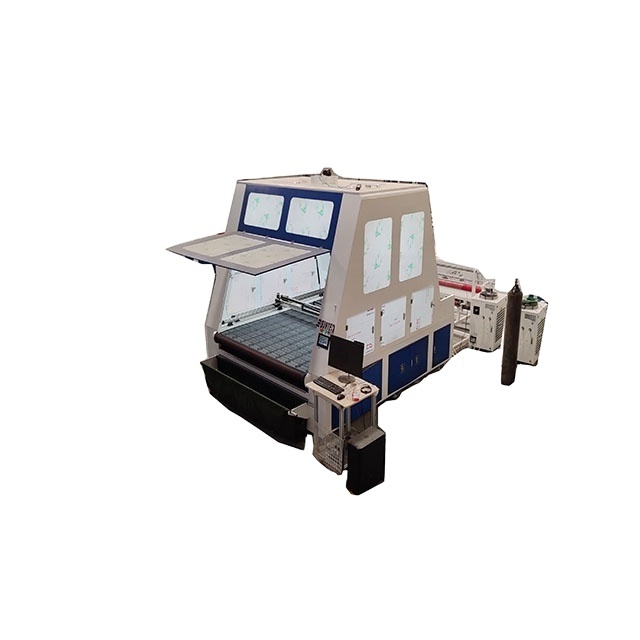

Textile fabric garments cloth cutting automatic feeding level device CO2 laser cutting machine with CCD ST2020
1. Specification
|
Name: |
S T- 20 20 |
|
Processing area |
2000mm*2000mm |
|
Laser power |
150w/180W/220W/280/300W |
|
Laser type: |
Sealed Co2 glass laser tube |
|
Cooling mode: |
Water cooling and protection system |
|
Resetting positioning accuracy: |
±0.01mm |
|
Compatible Software: |
CorelDraw AutoCAD Photoshop |
|
Whole machine size: |
5220mm*2320mm*2200mm |
|
Engraving speed |
1-60000mm/min |
|
Cutting speed |
1-10000mm/min |
|
Cutting thickness |
0-25mm acrylic (others determined by materials) |
|
Resolution ratio |
≤0.0125mm |
|
Position system: |
Red dot |
|
Interface: |
USB |
|
Minimum shaping character |
letter 0.5mm, Chinese 0.5mm |
|
Support graphic format |
DST, PLT, BMP, DXF |
|
Gross power |
1000W |
|
Driving mode: |
DC0.8A 24V stepper motor |
|
Cooling mode: |
Circulation water cooling |
|
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
|
Operating temperature |
0-45C |
|
Operating humidity: |
5-95%
|
|
Driving system |
panasonic driver andm otor |
|
Option: |
Up and down table, rotary attachment |
|
Packing: |
wooden box |
|
Guarantee time: |
1 year, laser tube 8 months |
|
Option: |
Rotary attachment for column materials |
|
Operation: |
Video to tell customer how to operate the machine |
|
Gross weight: |
2500KGS after package |
MAINPARTS
WORKING SAMPLE
automatic feeding deivce with auto right position device to make sure feeding in same level to make sure high precision
CUT SIZE SAME WITH FILE SIZE
Camera scan the shape or size then cutting
WORK SHOPE
PACKING DETAILS
Feedback
ABOUT US
Jinan SUNTEC , the professional cnc router and laser cutting machine manufacturer in China. Our machines including ATC CNC router, Wood CNC Router, , Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Fiber Laser Cutting and Engraving Machine and so on.
SUNTEC cnc router have passed the CE, SGS, ISO9001 etc. They can be widely used for advertising, woodworking, mould, stone, metal industry. Our machine sells well in global area, like the North America, Europe, Middle East, South Africa etc.
